Two-Axis Gyroscope Inertial Sensor for Camera Gimbal Stabilization

Brand Name:	Firepower
Model Number:	MG2
MOQ:	1
Price:	500$
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

±500°/s

Zero-bias Instability:

1°/h

ARW:

0.15°/√h

Bias Repeatabilit:

10°/h

Resolution:

2°/h

Bandwidth:

250Hz

Packaging Details:

Carton+Sponge

Supply Ability:

500/month

Highlight:

two-axis gyroscope for gimbal stabilization

inertial sensor for camera stabilization

IMU accelerometer gyro for gimbals

Product Description

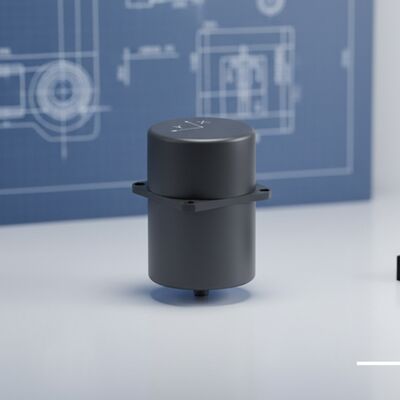

Two-Axis Gyroscope Inertial Sensor for Camera Gimbal Stabilization

This dual-axis gyroscope assembly delivers superior performance with an angular rate measurement range of ±500°/s, zero-bias instability as low as 0.05°/h, and random walk of 0.02°/√h. All error compensation processes, including temperature and misalignment corrections, are handled internally, ensuring reliable output for attitude control and precision applications.

Weighing just 20g and operating within a temperature range from -45°C to +85°C, this compact dual-axis gyroscope assembly combines high accuracy with advanced error compensation algorithms for precise angular rate measurements in demanding environments.

Main Technical Parameters

Parameter	Unit	Test conditions	MG2	MG2A	MG2B	MG2C
Measuring range	°/s		±500	±500	±400	±300
Zero-bias instability	°/h	Allan variance	1	1	0.1	0.08
Zero bias stability	°/h	1s smooth, RMS, Normal temperature	10	10	5	3
Zero-bias error at full temperature	°/h	10s smoothing, RMS Temperature change rate 1 ℃/min	20	20	10	5
Random walk	°/√h	Allan variance	0.15	0.15	0.05	0.03
Zero-bias repeatability	°/h	Q = 6, normal temperature	10	10	5	5
Zero-bias acceleration sensitive Degree	°/h/g	Test at ± 1 g	1	1	1	1
Resolution	°/h		2	2	1	1
Bandwidth	Hz		250	250	150	400
Scale factor nonlinearity	ppm	Normal temperature	300	300	300	300
Scale factor repeatability	ppm	Q = 3, normal temperature	300	300	300	300
Cross coupling	%	Normal temperature	0.2

Electrical Characteristics

Parameter	Unit	MG2y
Voltage	V	5±0.25
Starting current	mA	200
Steady-state power consumption	W	≤1
Ripple	mV	100

Environmental Adaptability

Parameter	Unit	MG2y
Operating temperature	℃	-45~85
Storage temperature	℃	-55~105

Other Specifications

Parameter	Unit	MG2y
Weight	g	≤20
Start time	s	<1

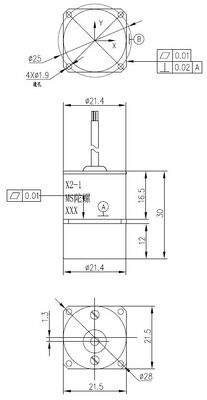

Overall Dimensions
