ADIS16475 Fully-Calibrated IMU with Temperature and Misalignment Compensation

Name: ADIS16475 Fully-Calibrated IMU with Temperature and Misalignment Compensation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HB
Price: 500 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	16488HB
MOQ:	1
Price:	500$
Payment Terms:	L/C,T/T
Supply Ability:	500/mont

Detail Information

Product Description

Detail Information

Place of Origin:

China

Angular Random Walk:

0.15°/√h

Zero Bias Stability:

0.8°/ H

Communication Interface:

1 Channel SPI/CAN

Accelerometer Random Walk:

0.05~0.07m/s/h-², 1 Sigma

Maximum Angular Rate:

±500/2000°/s

Gyro Scale Factor Accuracy:

0.3%

Accelerometer Range:

±16/200g

Size:

47×44×14mm

Packaging Details:

sponge +carton

Supply Ability:

500/mont

Highlight:

fully-calibrated IMU sensor

IMU with temperature compensation

misalignment compensated IMU accelerometer

Product Description

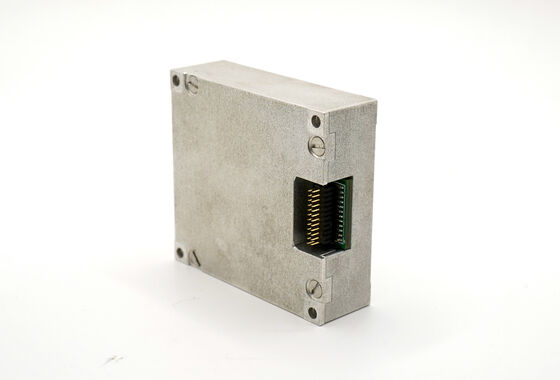

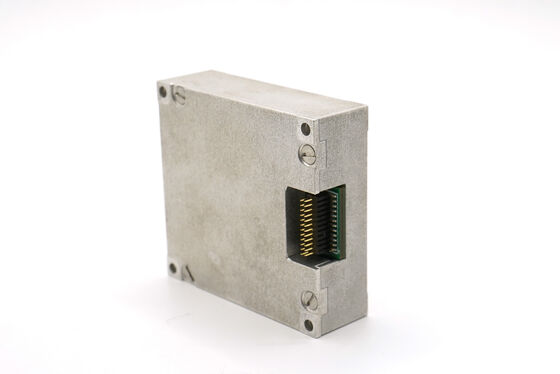

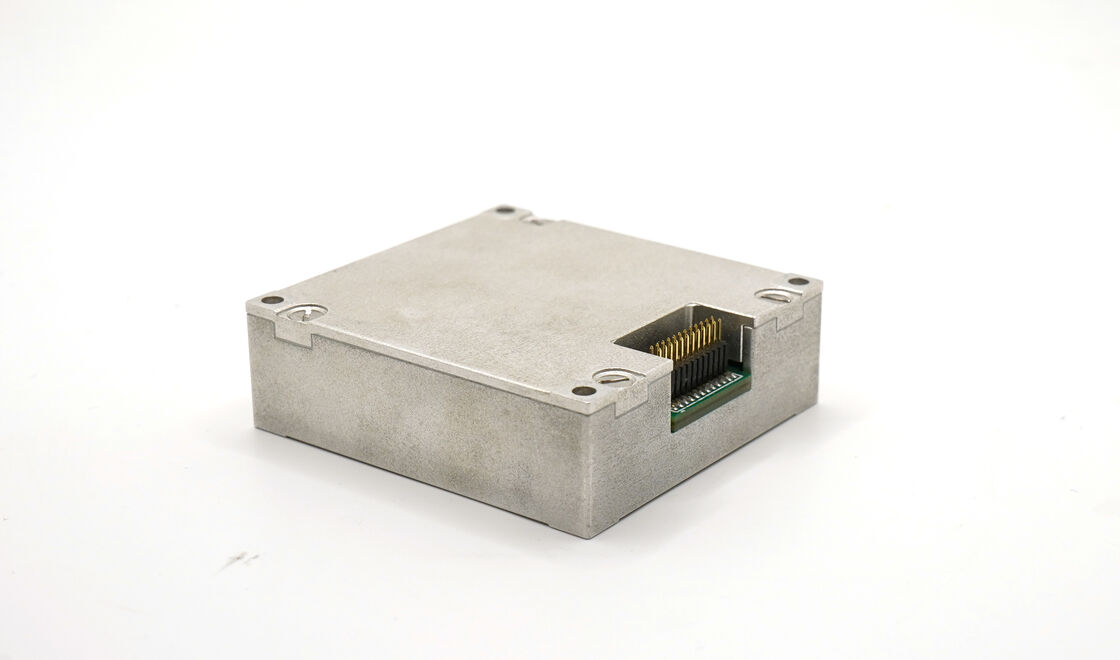

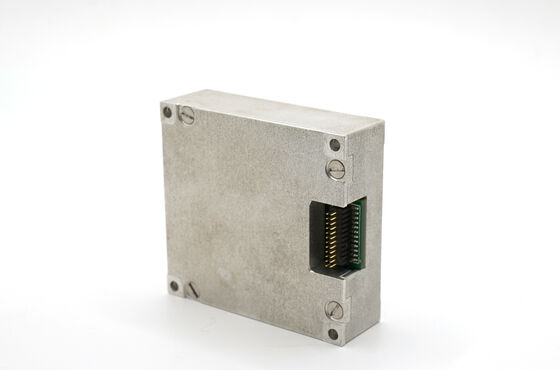

ADIS16475 Fully-Calibrated IMU with Temperature and Misalignment Compensation

The 16488HB IMU delivers highly accurate motion sensing, featuring a three-axis MEMS gyroscope and accelerometer. With a high MTBF and rugged design, this unit can replace the Adis 16497 in applications requiring reliable motion tracking, such as surveying, unmanned vehicles, and communication in motion.

Product Features

Three-Axis Digital Gyroscope

±2000°/s dynamic measurement range
Zero bias stability: 3°/h (GJB, 10S, Z-axis), 0.8°/h (ALLAN, Z-axis)

Triaxial Digital Accelerometer

±200g dynamic measurement range
Zero bias stability: 0.4mg (GJB, 10S), 0.06mg (ALLAN)

Additional Sensors

Triaxial digital magnetometer: 2.5gauss
Digital barometer: 300mbar ~ 1100mbar

Performance & Reliability

High reliability: MTBF 20,000 hours
Guaranteed accuracy within full temperature range (-40℃ to +80℃)
Built-in high-performance temperature calibration and compensation algorithm
Suitable for operation under strong vibration (6.06G, 20-2000Hz)
Suitable for working under large impact conditions (1000G, 0.5ms)

Technical Specifications

Parameter	Test Conditions	Minimum	Typical	Maximum	Unit
Gyroscope
Dynamic measuring range			500	2000	°/s
Zero bias stability	Allan variance, Z-axis		0.8		°/h
Zero bias stability	Allan variance, X and Y axis		1.6		°/h
Zero bias stability	10s average (-40℃ to +70℃, constant temperature), Z-axis		3		°/h
Zero bias stability	10s average (-40℃ to +70℃, constant temperature), X-axis and Y-axis		6		°/h
Zero bias	Zero-bias range, Z-axis		±0.07		°/s
Zero bias	Zero-bias range, X-axis and Y-axis		±0.2		°/s
Zero bias change in full temperature range	Z-axis		±0.02		°/s
Zero bias change over temperature	X and Y axis		±0.06		°/s
Successive start repeatability	Z-axis		0.002
Successive start repeatability	X-axis and Y-axis		0.006
Day-by-day start repeatability	Z-axis		0.003		/s
Start repetition day by day	X-axis and Y-axis		0.009		°/s
Effect of linear acceleration on bias			0.002		°/s/g
Influence of vibration on zero bias	Change before and after vibration		0.002		°/s/g
Influence of vibration on zero bias	Change before and during vibration		0.002		°/s/g
Scale factor accuracy	Z-axis		0.3		%
Scale factor accuracy	X and Y axis		0.6		%
Scale factor nonlinearity	Z-axis		0.01		%FS
Scale factor nonlinearity	X and Y axis		0.02		%FS
Angular random walk			0.15		°/√hr
Noise density			0.001		°/s/√Hz
Resolution			3.052*10⁻⁷		/s/LSB
Bandwidth			200		Hz
Accelerometer
Dynamic measuring range			16	200	g
Zero bias stability	Allan variance		0.06		mg
Zero bias stability	10s average (-40℃ to +70℃, constant temperature)		0.4		mg
Zero bias range			2		mg
Change of zero bias within the whole temperature range	Peak-to-peak value		4		mg
Repeatability of successive starts			0.5		mg
Repeatability initiated on a daily basis			0.8		mg
Zero-bias temperature coefficient		0.05	0.1		mg/℃
Scale factor accuracy			0.5		%
Scale factor nonlinearity			0.1		%FS
Speed random walk			0.029		m/s/√hr
Noise density			0.025		mg/√Hz
Resolution			1.221*10⁻⁸		g/LSB
Bandwidth			200		Hz
Magnetometer
Magnetic field range	Brg,xy		±13		gauss
Magnetic field range	Brg,z		±25		gauss
Resolution			0.3		μT
Heading accuracy	30μT horizontal geomagnetic component, 25℃		±2.5		deg
Dynamic measuring range			2.5		gauss
Zero bias	Non-magnetic environment		15		mgauss
Barometer
Dynamic measuring range		300		1100	mbar
Zero bias			4.5		mbar
Communication Interface
Baud rate	1-way SPI			15	MHz
Baud rate	1-Way CAN			1	MHz
Sampling frequency	SPI	2460	2460		Hz
Sampling frequency	CAN		200		Hz
Electrical Characteristics
Voltage		3.0	3.3	3.6	V
Power consumption			1.5		W
Ripple	P-P			100	mV
Settling time	From 0V to 3.3V			80	ms
Structural Characteristics
Size			474414		mm
Weight			50		g
Use Environment
Operating temperature		-40		70	℃
Storage temperature		-45		75	℃
Vibration			20-2000Hz, 6.06g
Impact			1000g, 0.5ms
Reliability
MTBF			20000		h
Continuous working time			120		h

Note ①: Calculate the zero deviation of the whole temperature change process, the temperature change rate is ≤1℃/min, and the temperature range is -40℃ to +70℃
Note ②: Vibration condition is 6.06G, 20Hz-2000Hz

Outline Drawing
