16488HB MEMS IMU 6-Axis Sensor with 0.8 deg/h Bias Stability 200Hz Bandwidth and 47x44x14mm Compact Size for UAV Drone AHRS

Name: 16488HB MEMS IMU 6-Axis Sensor with 0.8 deg/h Bias Stability 200Hz Bandwidth and 47x44x14mm Compact Size for UAV Drone AHRS
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HB
Price: 3,003.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	16488HB

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Bias Stability:

0.8 Deg/h

Bandwidth:

200Hz

Dynamic Measuring Range:

500/2000 Deg/s

Angular Random Walk:

0.15 Deg/rt-hr

Size:

47x44x14mm

Accelerometer Range:

16/200g

Accelerometer Bias Stability:

0.06mg

Weight:

50g

Highlight:

MEMS IMU accelerometer gyro sensor

UAV drone AHRS attitude reference

0.8 deg/h bias 6-axis IMU

Product Description

16488HB MEMS IMU Accelerometer Gyro 0.8 deg/h Bias 6-Axis Sensor for UAV Drone AHRS Attitude Reference

Product Overview

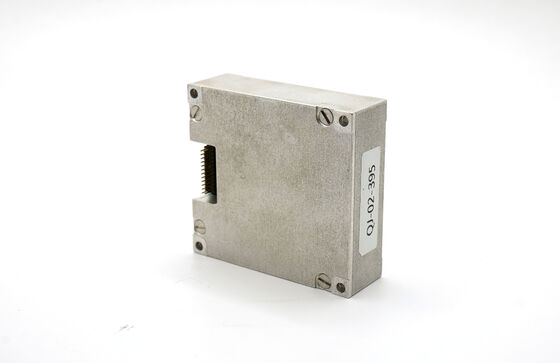

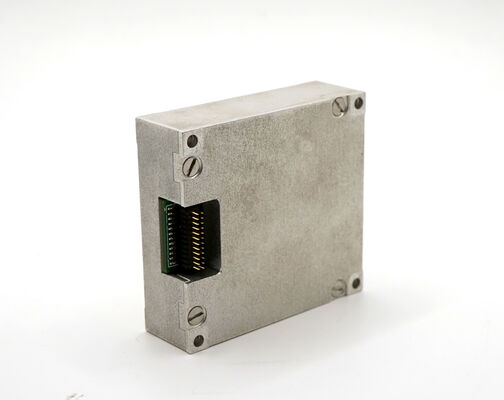

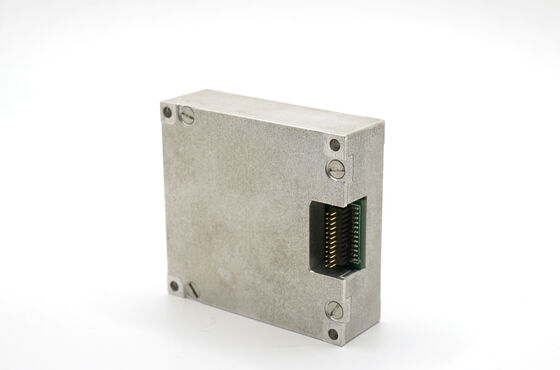

The 16488HB high-performance MEMS IMU is designed for UAV drone attitude and heading reference systems (AHRS). This compact 47x44x14mm sensor outputs 3-axis angular velocity and 3-axis acceleration with integrated magnetometer and barometer, providing complete motion sensing. Built-in temperature calibration ensures accurate performance from -40°C to +70°C.

Product Features

3-axis gyroscope: ±2000 deg/s range, 0.8 deg/h bias stability (Allan, Z-axis)
3-axis accelerometer: ±200g range, 0.06mg bias stability (Allan)
3-axis magnetometer and digital barometer for complete navigation
SPI (2460Hz) and CAN communication interfaces
47x44x14mm compact size at only 50g weight
MTBF 20,000h with 1000g shock and 6.06g vibration resistance

Field of Application

UAV and drone flight control and attitude stabilization
Aerial mapping and photogrammetry payloads
Drone-based inspection and monitoring systems
Agricultural drone precision navigation
Delivery drone autonomous guidance

Product Specifications

Parameter	Test Conditions	Min	Typical	Max	Unit
Gyroscope
Dynamic measuring range			500	2000	deg/s
Zero bias stability	Allan variance, Z-axis		0.8		deg/h
Zero bias stability	Allan variance, X/Y axis		1.6		deg/h
Zero bias stability	10s avg, -40~+70°C, Z-axis		3		deg/h
Angular random walk			0.15		deg/rt-hr
Scale factor nonlinearity	Z-axis		0.01		%FS
Bandwidth			200		Hz
Accelerometer
Dynamic measuring range			16	200	g
Zero bias stability	Allan variance		0.06		mg
Bandwidth			200		Hz
Magnetometer
Dynamic measuring range			2.5		gauss
Heading accuracy	30μT, 25°C		±2.5		deg
Barometer
Dynamic measuring range		300		1100	mbar
Communication
1-way SPI	Baud rate			15	MHz
1-Way CAN	Baud rate			1	MHz
Sampling frequency	SPI		2460		Hz
Electrical
Voltage		3.0	3.3	3.6	V
Power consumption				1.5	W
Physical
Size			47×44×14		mm
Weight			50		g
Environment
Operating temperature		-40		70	°C
Vibration			20-2000Hz, 6.06g
Impact			1000g, 0.5ms
Reliability
MTBF			20000		h

Temperature change rate ≤ 1°C/min, range -40°C to +70°C
Vibration condition: 6.06G, 20Hz~2000Hz
