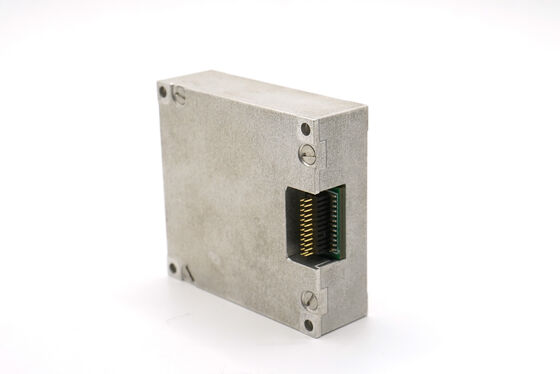

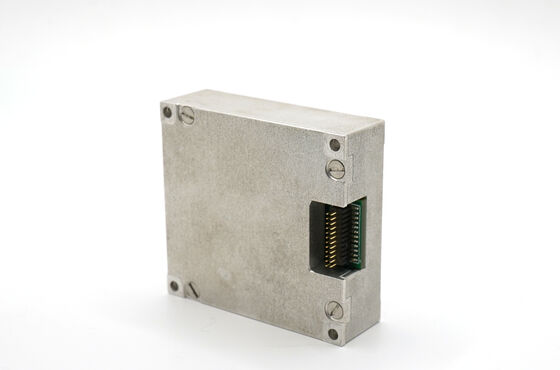

High Accuracy MEMS IMU with 0.8 deg/h Gyro Bias Stability 0.06mg Accelerometer Bias and 200Hz Bandwidth

Name: High Accuracy MEMS IMU with 0.8 deg/h Gyro Bias Stability 0.06mg Accelerometer Bias and 200Hz Bandwidth
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 16488HB
Price: 3,003.00 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	16488HB

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Bias Stability:

0.8 Deg/h

Bandwidth:

200Hz

Dynamic Measuring Range:

500/2000 Deg/s

Angular Random Walk:

0.15 Deg/rt-hr

Size:

47x44x14mm

Accelerometer Range:

16/200g

Accelerometer Bias Stability:

0.06mg

Weight:

50g

Highlight:

6-axis inertial measurement unit IMU

autonomous vehicle AGV navigation system

0.8 deg/h gyro 16488HB sensor

Product Description

High Accuracy MEMS IMU with 3-Axis Gyroscope Accelerometer Magnetometer & Barometer

The 16488HB 6-axis inertial measurement unit provides precise motion data for autonomous vehicle and automated guided vehicle (AGV) navigation. Integrating a 3-axis gyroscope, 3-axis accelerometer, magnetometer, and barometer, it delivers comprehensive dead-reckoning capability with 0.8 deg/h gyro bias stability. SPI at 2460Hz and CAN interfaces enable straightforward integration with vehicle controllers.

Product Features

6-axis sensing (3 gyro + 3 accel) with magnetometer and barometer
0.8 deg/h gyro bias stability for reliable dead-reckoning
0.06mg accelerometer bias for precise velocity estimation
SPI (2460Hz) and CAN for vehicle control unit integration
Operating temperature -40 to +70 deg C for warehouse to outdoor use
50g weight with 20000h MTBF for continuous vehicle operation

Field of Application

Automated guided vehicle fleet navigation
Warehouse logistics robot positioning
Autonomous forklift and pallet truck guidance
Port container transporter navigation
Last-mile delivery robot localization

16488HB Product Specifications

Parameter	Test conditions	Min	Typical	Max	Unit
Gyroscope
Dynamic measuring range			500	2000	deg/s
Zero bias stability	Allan variance, Z-axis		0.8		deg/h
Zero bias stability	Allan variance, X/Y axis		1.6		deg/h
Zero bias stability	10s avg, -40~+70degC, Z-axis		3		deg/h
Angular random walk			0.15		deg/rt-hr
Scale factor nonlinearity	Z-axis		0.01		%FS
Bandwidth			200		Hz
Accelerometer
Dynamic measuring range			16	200	g
Zero bias stability	Allan variance		0.06		mg
Bandwidth			200		Hz
Magnetometer
Dynamic measuring range			2.5		gauss
Heading accuracy	30muT, 25degC		+/-2.5		deg
Barometer
Dynamic measuring range		300		1100	mbar
Communication
1-way SPI	Baud rate			15	MHz
1-Way CAN	Baud rate			1	MHz
Sampling frequency	SPI		2460		Hz
Electrical
Voltage		3.0	3.3	3.6	V
Power consumption				1.5	W
Physical
Size			47x44x14		mm
Weight			50		g
Environment
Operating temperature		-40		70	degC
Vibration			20-2000Hz, 6.06g
Impact			1000g, 0.5ms
Reliability
MTBF			20000		h

Temperature change rate ≤ 1degC/min, range -40degC to +70degC
Vibration condition: 6.06G, 20Hz~2000Hz
