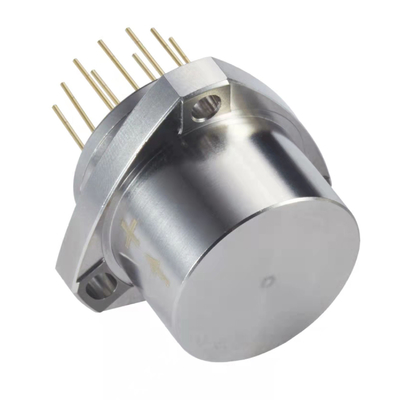

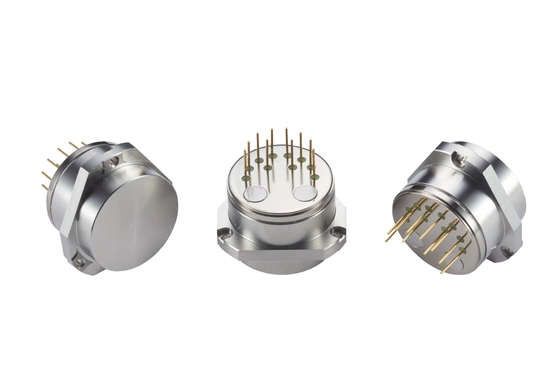

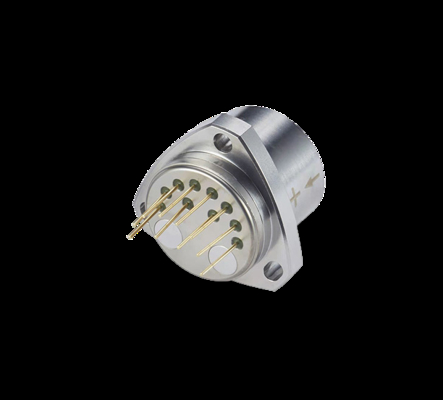

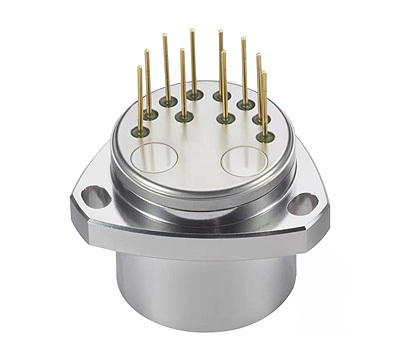

1 Axis Quartz Flexure Accelerometer , Oil Drilling Quartz Acceleration Transducer

Brand Name:	Firepower
Model Number:	AV4
MOQ:	1
Price:	900
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Function:

Acceleration Test

Threshold:

30μg

Material:

Stainless Steel

Scale Factor K1:

1.8～2.4mA/g

Working Temp.:

-40℃+150℃

Noise:

＜3000µg-rms (0-10000Hz)

Packaging Details:

sponge+ box

Supply Ability:

500/month

Highlight:

1 Axis Quartz Flexure Accelerometer

Oil Drilling Acceleration Transducer

Low Lag Vibratory Sensor

Product Description

1 Axis Quartz Flexure Accelerometer, Oil Drilling Quartz Acceleration Transducer

Product Specifications

Function	Acceleration test
Threshold	30μg
Material	Stainless steel
Scale factor k1	1.8～2.4mA/g
Working temperature	-40℃ to +150℃
Noise	＜3000µg-rms (0-10000Hz)

Product Overview

High-performance 1 Axis Quartz Acceleration Transducer designed for oil drilling applications, featuring low lag vibration detection and exceptional stability in extreme temperature conditions.

Key Features

Low lag response time
High resolution measurement
Exceptional stability
Precision accuracy
Low power consumption
Superior overload capacity
Compact design
Cost-effective solution
Wide measurement range

Primary Applications

Drilling and inclination measurement systems
Aeronautics and aerospace instrumentation
Precision equipment monitoring

Technical Specifications

No.	Parameters	AV4-1	AV4-2	AV4-3
1	Range	±30g	±30g	±30g
2	Bias K0/K1	＜10mg	＜40mg	＜40mg
3	Bias comprehensive repeatability σK0 (1σ,1 month)	＜50µg	＜250µg	＜250µg
4	Thermal coefficient	＜50µg/℃	＜150µg/℃	＜150µg/℃
5	Scale factor K1	1.1～1.4 mA/g	1.1～1.4 mA/g	1.1～1.4 mA/g
6	Scale factor monthly comprehensive repeatability σk1/k1 (1σ, 1 month)	＜80 ppm	＜250 ppm	＜250 ppm
7	Bias thermal coefficient (full temp. mean)	＜100ppm	＜200ppm	＜200ppm
8	Installation error	＜1500µrad	＜1500µrad	＜1500µrad
9	Vibration	＜100µg/g 2rms (50-500Hz)	＜100µg/g 2rms (50-500Hz)	＜100µg/g 2rms (50-500Hz)
10	Noise	＜3000µg-rms (0-10000Hz)	＜3000µg-rms (0-10000Hz)	＜3000µg-rms (0-10000Hz)
11	Working temp.	-55～96℃	-55～125℃	-55～180℃
12	Impact	500 g 0.5ms	1000 g 0.5ms	1000 g 0.5ms
13	Sinusoidal vibration	25 g @30-500Hz	25 g @30-500Hz	25 g @30-500Hz
14	Resolution	＜10µg	＜10µg	＜10µg
15	Bandwidth	＞300 Hz	＞300 Hz	＞300 Hz
16	Consume current	＜20 mA	＜20 mA	＜20 mA
18	Power dissipation @ ±15VDC	＜480 mW	＜480 mW	＜480 mW
19	Input voltage	±13 to ±18V	±13 to ±18V	±13 to ±18V
20	Weight	＜65g 55nominal	＜65g	＜65g
21	Mounting diameter	Ф25mm1.0inches	Ф25mm	Ф25mm
22	Height	＜21.5mm	＜21.5mm	＜21.5mm
23	Shell material	300 Series stainless steel	300 Series stainless steel	300 Series stainless steel

Product Dimensions

Technical Description

This high-performance accelerometer features a unique miniaturized design with advanced high-temperature and seismic resistance capabilities. Utilizing specialized packaging technology and custom circuitry, it delivers flow proportional to input acceleration. Users can select appropriate sampling resistors to achieve high-precision output. Optional built-in temperature sensors enable compensation for offset values and scale factors, reducing environmental temperature effects. Ideal for oil drilling inclination measurement and precision instrument vibration isolation testing.
