Sensitive flexure accelerometer single axis quartz vibration sensor inertial accelerometer
Performance Characteristics
| No. | Parameters | JB1-01 |
| 1 | Range | ±50g |
| 2 | Threshold | 5μg |
| 3 | Bias K0/K1 | ≤±3mg1 |
| 4 | Scale factor K1 | 1.05~1.30 Ma/g |
| 5 | Second order nonlinearity coefficient K2 | ≤±10μg /g2 |
| 6 | 0g 4 hours short-term stability | ≤10 μg |
| 7 | 1g 4 hours short-term stability | ≤10 ppm |
| 8 | Bias comprehensive repeatability σK0 (1σ,1 month) | ≤10 μg |
| 9 | Scale factor comprehensive repeatability σK1/K1 (1σ,1 month) | ≤15ppm |
| 10 | Nonlinearity coefficient comprehensive repeatability K2/K1(1σ, 1 month) | ≤±10 μg /g2 |
| 11 | Bias thermal coefficient (full temp. mean) | ≤±10 μg /℃ |
| 12 | Scale factor thermal coefficient (full temp. mean) | ≤±10 ppm /℃ |
| 13 | Noise (sampling resistance 840Ω) | ≤5mv |
| 14 | Natural frequency | 400~800 Hz |
| 15 | Bandwidth | 800~2500 Hz |
| 16 | Random vibration | 6g(20-2000Hz) |
| 17 | Impact | 100g,5ms,1/2sin |
| 18 | Working temp. | -55~+85℃ |
| 19 | Store temp. | -60~+120℃ |
| 20 | Power supply | ±12~±15V |
| 21 | Consume current | ≤±20mA |
| 22 | Thermal sensor | Customizable |
| 23 | Size | Ф25.4X30mm |
| 24 | Weight | ≤80g |
Dimensions
Characters
● Low lag
● High resolution
● High stability
● High accuracy
● Low power
● Excellent overload capacity
● Small volume
● Low cost
● Broad measurement range
Applications
● Drilling and Inclination Measurement
● Aeronautics and Astronautics
● Instruments and Equipment
Customer Service

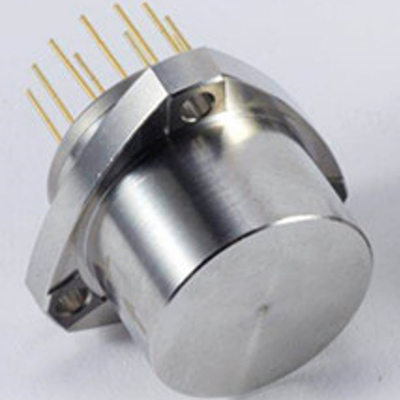

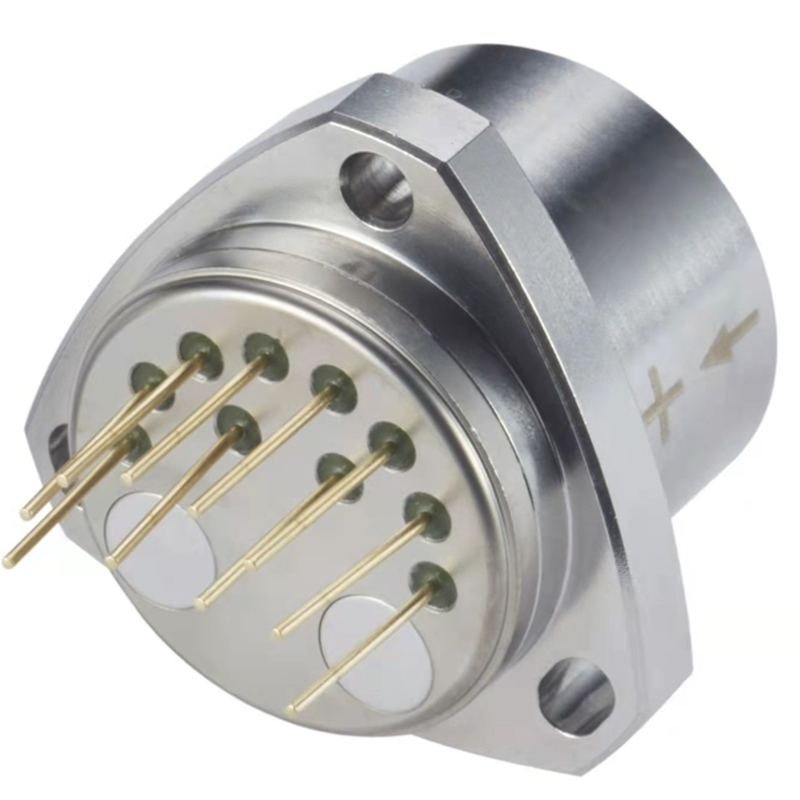

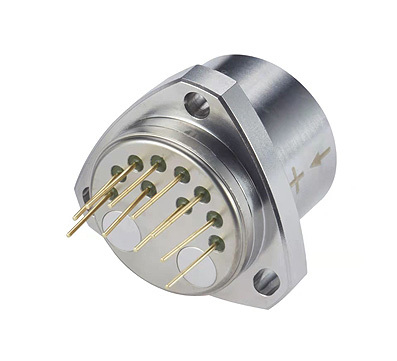

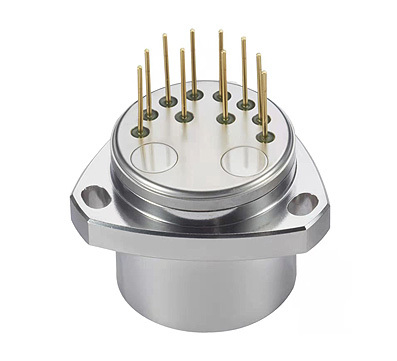

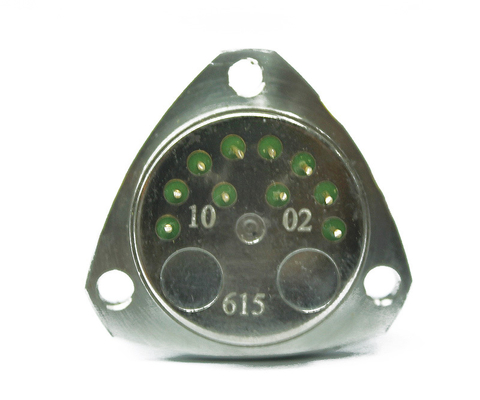

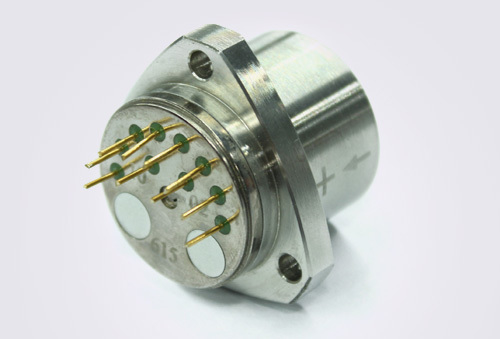

Product Photo
