| Product Name | Acceleration Sensor |
|---|---|
| Range | 50g |
| Threshold | 5ug |
| Bias K0/K1 | ≤±5 Mg |
| Scale Factor | 0.8~1.5 MA/g |
| Working Temperature | -40~70℃ |
|---|---|
| Gyro Measure Range | 450deg/s |
| Accelerometer Zero-bias Stability | 0.03mg |
| MTBF | > 20000h |
| Baud Rate | 15MHz |
| Product Name | Quartz Accelerometer |
|---|---|
| Material | Stainless Steel |
| Measure Range | 60g |
| Scale Factor | 0.4mA/g |
| Bias | <5mg |
| Function | Vibration Test |
|---|---|
| Operating Voltage | ±（12～18）VDC |
| Insulation Resistance | 50MΩ，@50VDC |
| Power Consumption | ≤480mw@±15VDC |
| Current Consumption | ≤16mA@±15VDC |
| Product Name | Inertial Measurement Accelerometer |
|---|---|
| Natural Frequency | 400~800 Hz |
| Working Temp. | -55～+85℃ |
| Weight | ≤80g |
| Size | Ф25.4X30mm |

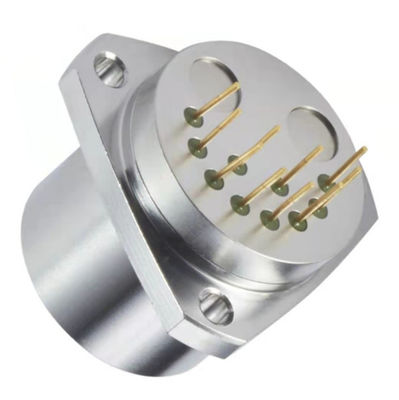

| Keyword | Quartz Flexure Accelerometer |
|---|---|
| Range | ±50g |
| Threshold | 5μg |
| Scale Factor K1 | 1.05~1.30 MA/g |
| Natural Frequency | 400~800 Hz |
| Product Name | Inertial Vibration Sensor |
|---|---|
| Range | 70g |
| Threshold | 5ug |
| Bias K0/K1 | ≤±5 Mg |
| Scale Factor | 0.8~1.5 MA/g |
| Temperature Range(Operating) | -55~+85℃ |
|---|---|
| Repeatability Of Scale Factor Sigma Kl/kl( 1σ，one Month) | ≤15ppm |
| Range | 50g |
| Threshold /Resolution | 1μg |
| Class II Nonlinearity Coefficient K2/k1 | ≤±10μg /g2 |
| Scale Factor Kl | 1.05~1.30 MA/g |
|---|---|
| Class II Nonlinearity Coefficient K2/k1 | ≤±10μg /g2 |
| Range | 50g |
| Bias Thermal Coefficient | ≤±10 μg /℃ |
| Weight | ≤80g |
| Range | 50g |
|---|---|
| Threshould | 5ug |
| Biask0/k1 | ≤±3 Mg |
| Scale Factor K1 | 0.8~1.5 MA/g |
| Bandwidth | 800~2500 Hz |
