quartz micromechanical gyroscope is a single-axis output Coriolis vibratory gyroscope
Product features
All-solid-state, high reliability
■ Strong anti-vibration ability, low vibration noise
■ Impact-resistant, resistant to harsh environment
Rs422 interface output
Product introduction

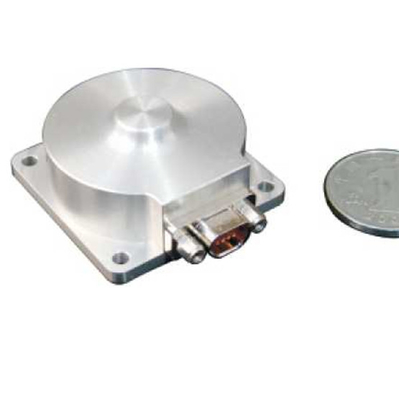

The AVIC-1 quartz micromechanical gyroscope is a single-axis output Coriolis vibratory gyroscope. Its sensitive device is made of quartz crystal and processed by MEMS technology. The product is designed with miniature sensitive chip, which has the characteristics of low vibration and noise, small size, high reliability, resistance to harsh environment and mass production.
Field of application
Platform stabilization and control system, inertial measurement and control of armored vehicles, unmanned aerial vehicles, vehicles and other platforms.
| Main technical indicators | Physical dimensions and electrical characteristics | ||
| Measuring range, °/S | ± 10. ~ Earth 500 | Overall dimensions | 41.3x41.3x 18.5 (mm) |
| Startup time, S | <10 | Weight | w50g |
| Zero Bias Stability at Full Temperature. /h ( 1°) | <100* | Supply voltage | DC12V |
| Zero-bias temperature sensitivity, °/H/° C | <1* | Power consumption | w300mW |
| Scale Factor Temperature Sensitivity,%/° C | <0.01* | ||
| Resolution, ° Is | <0.008* | Environmental indicators | |
| Threshold, ° Is | <0.008* | Operating temperature | -40°C~60°C |
| Non-linear,% FS | <0.08* | Storage temperature | -50°C~+85°C |
| Bandwidth, Hz | 3100 | Vibration | 20〜2000Hz, 0.04g2/Hz |
| G Sensitivity, °/s/G | <0.005 | Impact | 60g |
| Output mode | |||
| Typical index when the measurement range is ± 100 °/s | Serial port | RS-422 | |
| Data update rate | 50 ~ 1000Hz | ||
