small size MEMS gyro, low bias gyro sensor, three axis gyro sensor
Product features
Small size, light weight, low power consumption, precision serialization
Expandable barometer, magnetometer
Product introduction
This type of MEMS gyroscope is a low-cost, small-sized, and imported product with compatible mounting size.

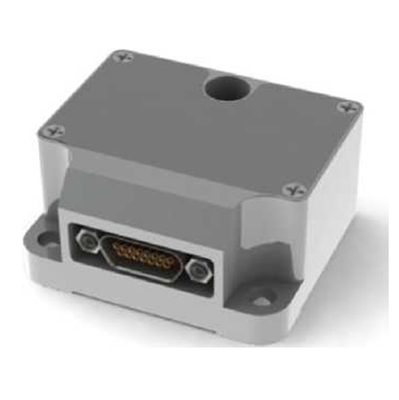

MG210 High precision MEMS IMU. The measurement range is wide, expandable and customizable.
MEMS gyroscope Field of application
It is widely used in various tactical weapon systems, servo tracking, stability control and other fields.
| Measuring range | -400% ~ 400% | Overall dimensions | 44.8 x38.6mmx21.5mm | |
| Zero bias stability | 0.5 °/h (1σ) | Weight | 60g | |
|
Tuo Snail |
Angular random walk | 0.15 °/Vh (Allan variance) | Supply voltage | DC5V |
| Zero bias variation at full temperature | 10 °/h rms | Power consumption | 2W | |
| -m-nV | 200Hz | Environmental indicators | ||
| Non-linearity | 50ppm ( FS BSL) | Storage temperature | -50°C 〜70°C | |
| Cross coupling | 1% | Operating temperature | -40°C ~60°C | |
| Vibration | 15g； 20Hz ~ 2kHz | |||
| Impact | 200. | |||
| Output mode | ||||
| Serial port | RS-232/RS-422 | |||
| Data update rate | 50 〜1000Hz | |||
