Product Name: Fiber Gyro IMU
Heading Range: 0 〜360°
Positioning Accuracy: 10m (CEP)
Preparation Time: <2min
Pitch Accuracy: 0.1° 〜0.3°
Speed: 0.3m/s
High Light:

Fiber Accelerometer Gyroscope Sensor

,

Accelerometer Gyroscope Sensor Quartz

,

Quartz IMU Gyroscope Sensor

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: CHA-9F
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

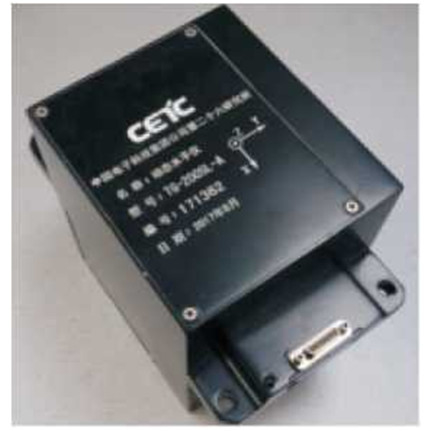

High accuracy and large measurement range accelerometer gyro sensor, optic gyro quartz accelerometer IMU





Product introduction

This product adopts highly integrated fiber optic gyroscope and high precision quartz accelerometer IMU.

GPS-OEM board, barometric altimeter, magnetometer and other multi-purpose sensors use Kalman filtering technology to integrate SINS and GPS information and output stable and reliable navigation parameters such as heading, attitude, speed and position. Gyroscopes mainly include MEMS gyroscopes and fiber optic gyroscopes.

Field of application

UAVs, guided bombs, missiles, rockets, platform stabilization.



Product features

■ Medium measurement accuracy, strong environmental adaptability

Anti-disturbance, suitable for harsh environment

■ High accuracy and large measurement range



Main technical indicators
Accuracy of course angle 0.2° 〜0.5.(1 σ)
Pitch accuracy   0.1° 〜0.3.(1 σ)
Roll accuracy   0.1° -0.3° (1 σ)
Speed accuracy   0.3m/s
Positioning accuracy 10m (CEP)
200 m (5min after no GPS signal)
Preparation time   w2min
Heading measurement range 0 〜360.
Elevation measurement range ±90°
Rolling measurement range ±180°
Range of angular velocity measurement ±100° /s 〜±400° Is
Acceleration measurement range ± 5g 〜± 30g





Physical dimensions and electrical characteristics



Overall dimensions 164 x 100 x 136.5mm
Weight w2.7Kg
Power supply DC24±3V
Power consumption <15W
Environmental indicators
Operating temperature -40°C 〜+60°C
Storage temperature -55°C 〜+85°C
Vibration 10〜2000Hz, 0.04g2/Hz
Impact 20g, 11ms

Output mode
Data refresh rate 50~200Hz
Output mode Rs422 serial port
