Industrial Grade North Finder for High Accuracy Navigation

Name: Industrial Grade North Finder for High Accuracy Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: NF-102
Price: 1000 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	NF-102
MOQ:	1
Price:	1000$
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Azimuth Accuracy:

±0.7°

Navigation Tracking:

±0.7° (≤5 Min Rotation ≤10°/s)

Dimension:

60×60×60 Mm

Weight:

≤400 G

Operating Temperature:

-30°C ~ +65°C

Power Consumption:

≤1 W

Packaging Details:

sponge +carton

Supply Ability:

500/month

Highlight:

Industrial grade gyro north finder

High accuracy navigation north finder

Gyro north finder with warranty

Product Description

Industrial Grade North Finder for High Accuracy Navigation

Product Overview

The NF-102 High-Accuracy Industrial North-Seeking Instrument delivers reliable orientation performance in demanding industrial environments. Featuring an azimuth error of ±0.7° and navigation tracking error ≤0.7° under slow rotation (≤10°/s), it ensures precise directional measurements. With a robust structure and industrial connector J30JM-15ZKP, this instrument is ideal for defense systems, navigation equipment, and surveying projects.

Technical Specifications

Parameter	Unit	Specification
Supply Voltage	V	9 ~ 12
Product Dimensions	-	60×60×60/46×53(4×M4)
Product Weight	g	≤ 400
Operating Temperature	℃	-30 ~ +65
Storage Temperature	℃	-55 ~ +85
Output Mode	-	RS422/RS232

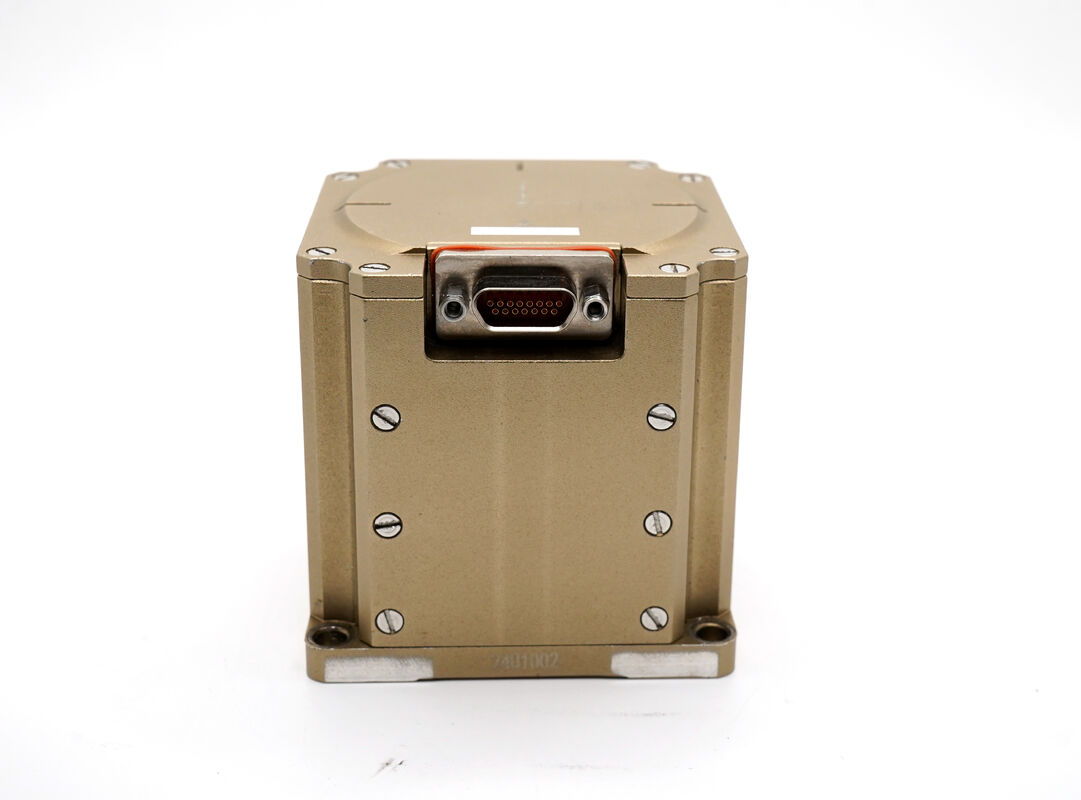

Connector	-	J30JM-15ZKP
Power Consumption	W	≤ 1
Azimuth Error	°	±0.7
Navigation Tracking Error	°	±0.7 (≤ 5min, Rotation Speed ≤ 10 °/s)
Tilt Adaptability	°	±15

Reference: Fig. 1 Structure Diagram
