Dynamic Navigation Accelerometer Gyro Sensor High Update Rate IMU

1
MOQ
Dynamic Navigation Accelerometer Gyro Sensor High Update Rate IMU
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Dynamic Navigation Inertial Sensor
Static Accuracy: <1’
Dynamic Accuracy: <2'
Measuring Range: ±5 °
Preparation Time: <60s
Response Time: <20ms
Weight: 3kg
Supply Voltage: DC24V±2V
High Light:

IMU Accelerometer Gyro Sensor

,

Dynamic Navigation Accelerometer Gyro Sensor

,

High Update Rate accelerometer and gyroscope

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: TG-200SL
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

Dynamic navigation sensor, high update rate IMU, inertial attitude sensor



Introduction

It is a self-developed inertial attitude measurement system. Inertial navigation technology is used to provide pitch angle and roll angle information for vehicles in real time. The product has unique design, high precision, high stability, high data update frequency and high performance, which is an ideal attitude measurement product for rotating motion carrier.



Applications

It is used for the measurement and control of ground carriers such as combat vehicles, radar vehicles and armored vehicles.



Features

Dynamic use,

high data update rate,

fast response

Anti-disturbance,

suitable for harsh environment

High precision and large measuring range

All-solid-state,

long-life



Specifications

Main technical indicators Physical dimensions and electrical characteristics
Static accuracy <1’ Overall dimensions 100 x 120 x 100mm
Dynamic accuracy <2’ Weight 3Kg
Measuring range ±5 ° Supply voltage DC24V±2V
Preparation time <60s Power consumption <20W
Response time <20ms
Environmental indicators
    Storage temperature -50 ℃ ~ 80 ℃
    Operating temperature -40℃~75℃:
    Vibration GJB150.16A-2009
    Impact 30g, half sine, 8 ~ 11 ms

Output mode
    Communication serial port 422 and CAN
    Baud rate 115200/500 K

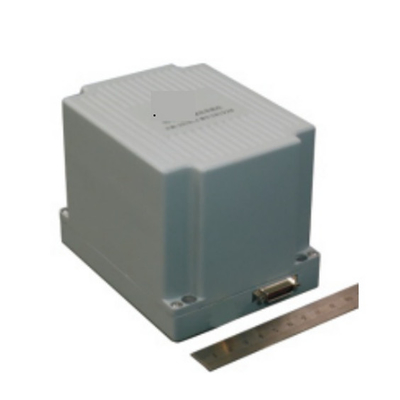

Dynamic Navigation Accelerometer Gyro Sensor High Update Rate IMU 0
