High Precise Gps Imu Sensor 0.3m/S Anti Disturbance Reliable

1
MOQ

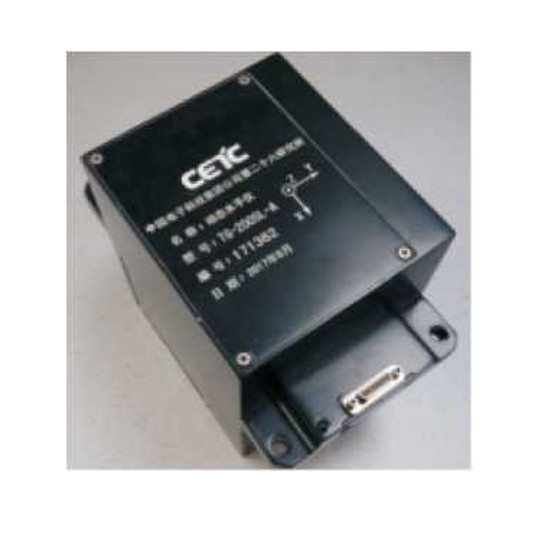

High Precise Gps Imu Sensor 0.3m/S Anti Disturbance Reliable
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: High Precise IMU With GPS
Accuracy Of Course: 0.2° 〜0.5°
Pitch Accuracy: 0.1° 〜0.3°
Roll Accuracy: 0.1° -0.3°
Speed: 0.3m/s
Heading Measurement Range: 0 〜360°
Acceleration: ± 5g 〜± 30g
High Light:

High Precise Gps Imu Sensor

,

IMU with GPS Anti Disturbance

,

Gps Imu Sensor 0.3m/S

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: CHA-9F
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

High precise IMU with GPS, barometer, reliable GPS IMU, INS integrate SINS and GPS



Introduction

This product adopts highly integrated fiber optic gyroscope and high precision quartz accelerometer IMU.

GPS-OEM board, barometric altimeter, magnetometer and other multi-purpose sensors use Kalman filtering technology to integrate SINS and GPS information and output stable and reliable navigation parameters such as heading, attitude, speed and position. Gyroscopes mainly include MEMS gyroscopes and fiber optic gyroscopes.

Field of application

UAVs, guided bombs, missiles, rockets, platform stabilization.



Features

Medium measurement accuracy,

strong environmental adaptability

Anti-disturbance,

suitable for harsh environment

High accuracy

large measurement range



Specifications

Main technical indicators
Accuracy of course angle 0.2° 〜0.5.(1 σ)
Pitch accuracy   0.1° 〜0.3.(1 σ)
Roll accuracy   0.1° -0.3° (1 σ)
Speed accuracy   0.3m/s
Positioning accuracy 10m (CEP)
200 m (5min after no GPS signal)
Preparation time   w2min
Heading measurement range 0 〜360.
Elevation measurement range ±90°
Rolling measurement range ±180°
Range of angular velocity measurement ±100° /s 〜±400° Is
Acceleration measurement range ± 5g 〜± 30g
