Home Products

Gyro North Finder

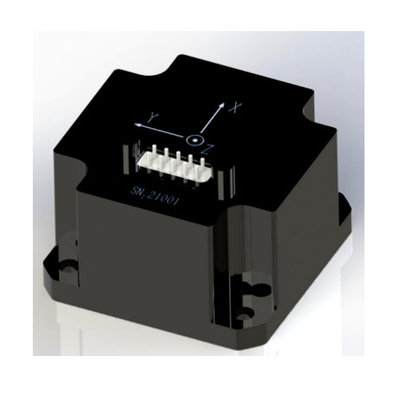

Six Axis MEMS Gyro North Finder 0.5 Sec High measuring performance

Name: Six Axis MEMS Gyro North Finder 0.5 Sec High measuring performance
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MF300C-232
Price: 8,750.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MF300C-232
MOQ:	1
Payment Terms:	T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Dynamic North Seeker

Span ( (/s):

100

Zero ( (/H, 1σ):

0.1

Zero-bias Stability ( (/H, Allan):

0.02

Accelerometer Range:

Bandwidth:

50Hz

Power:

5~12v

Output:

RS422

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

MEMS Gyro North Finder

Gyro North Finder 0.5 Sec

Six Axis Gyro North Finder

Product Description

reliable and cost-effective six-axis MEMS north seeker, dynamic north finder maintain high measurement accuracy for long

Product precision can be customized, wide range of applications

MF300C MEMS north finder is a highly reliable and cost-effective six-axis MEMS inertial sensor combination, which can be widely used in navigation, control and measurement fields represented by inertial navigation and attitude stabilization. MF300C MEMS north finder can be configured with different software and hardware according to the needs of users, so as to meet the needs of different users to the greatest extent.

Advanced process and technology

The MF300CMEMS north finder integrates high-performance MEMS gyroscopes and accelerometers in an independent structure. The gyroscopes and accelerometers selected for the module represent the leading level of inertial devices in MEMS technology. The angular motion of the sensitive carrier of the three-axis MEMS gyroscope, the linear acceleration of the sensitive carrier of the three-axis MEMS accelerometer,The compensation of zero position, scale factor, non-orthogonal error and terms related to acceleration for all temperature parameters is carried out in the module, which can maintain high measurement accuracy for a long time. At the same time, the module adopts measures such as overall vibration reduction and sealing design to ensure that the product can accurately measure the angular and linear motion parameters of the carrier in harsh environment.Thereby providing a low-cost and high-reliability solution for users.

Specifications

MEMS gyroscope
Model	MG-300C
Range ( (/s)	100
Bias( (/H, 1σ)	0.1
Bias stability ( (/H, Allan)	0.02
Bias repeatability (/H)	0.1
Scale Factor Nonlinearity (ppm)	300
Bandwidth (Hz)	50
MEMS accelerometer
Range (G)	2
Bias (mg)	0.5
Bias stability (μg)	20
Biasrepeatability (μg)	100
Scale Factor Nonlinearity (ppm)	300
Bandwidth (Hz)	50
System
Power (V)	5~12
Power (W)	2
Start Time (s)	2
Communication interface	RS-422
Update Rate (Hz)	200
North seeking accuracy (°, 5min, 1σ)	0.5sec (L) (L stands for latitude)
Dimensions (mm × mm × mm)	Φ56mm×38.5mm
Weight, G	200
Use environment
Operating temperature (℃)	-40～60
Storage temperature (℃)	-55～85
Reliability
MTBF(h)	200000
