Precise True Gyro North Finder Fiber Gyro Based North Seeker RS422

1
MOQ
8800
Price
Precise True Gyro North Finder Fiber Gyro Based North Seeker RS422
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: True North Finder
North Seeking Accuracy: ≤0.1°
North Seek Time: ≤ 3 Min
Horizontal Accuracy: ≤0.1 (1σ)
Output: RS422
Power Supply: 9~36V
Weight: 1KG
High Light:

precise gyro north finder

,

rs422 gyro north finder

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: NF-B03
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 100 per month
Product Description

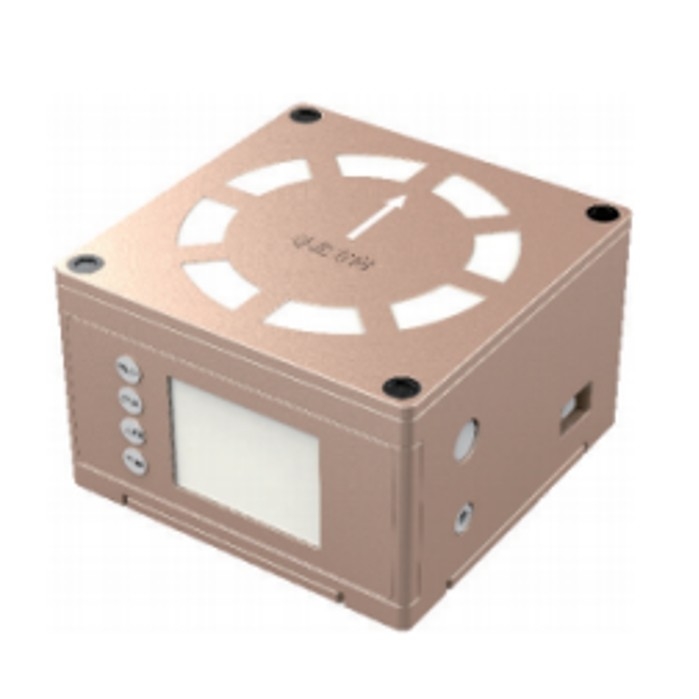

Precise True North Finder Fiber Gyro Based North Seeker



▶ Instructions

1 Installation method

Facing the gyro north finder arrow, the left and right sides of the mounting base plate are for mounting the reference surface, and the reference surface is aligned with the mounting head and tail line of the carrier, and the gyro north finder is fixed on the carrier by four M4 screws. The installation diagram of the gyro north finder is shown in Figure 1.



Project NF-B03A NF-B03B NF-B03C NF-102A NF-102B NF-102C
Output mode

Screen display/mobile phone APP

host computer software RS422

RS422/RS232
Power consumption /W ≤3(Laser on);≤1.2(Laser off) ≤3(Laser on);≤1(Laser off)
Power source/V Standby for 18h with explosion-proof battery DC9V~26V
Operating temperature/℃ 0~+40 -20~+60
North seeking time/min ≤3 ≤3
North seeking accuracy/o ±0.1 ±0.1
Pitch accuracy/° ±0.1 ±0.1
Roll angle accuracy/° ±0.1 ±0.1
Tilt adaptability/° ±15 ±15
Overall dimensions/mm 135x135x85 60x60x60
Weight /g ≤1500 ≤400
Heading angle tracking measurement accuracy 0.5°(5min) 0.5°(5min)
Measurement accuracy of pitch angle tracking 0.1°(5min) 0.1°(5min)
Roll angle tracking measurement accuracy 0.1°(5min) 0.1°(5min)
IP IP55 IP65








Use maintenance

1) If the gyro north finder is found to have a starting current greater than 1A during use, check whether the power supply voltage meets the requirements. If the inspection is correct, the professional should be repaired.

2) If the gyro north finder is found to have no serial port data output during use, check whether the connection is correct, whether the serial port setting and data receiving format are correct. If the check is correct, the professional should be repaired.

Precautions

1) The gyro north finder should be handled gently during the transportation process and installation process, and it is strictly forbidden to impact.

2) The carrier should be kept absolutely stationary during the north seeking process, otherwise it will affect the accuracy of north seeking.

3) The longitudinal and lateral inclination of the carrier should be no more than ±8°, otherwise it will affect the accuracy of north seeking.

Composition

The equipment package includes:

a) 1 set of fiber optic gyro north finder;

b) One plug.
