High Working Temperature Quartz Accelerometer with Low Bias Vibration Sensor
Product Description
AV1 Series quartz flexibility Accelerometer is a high accuracy Accelerometer with excellent long-term stability, repeatability, start-up performance,environmental adaptability and reliability making it a cost-effective inertial grade quartz flexible Accelerometer.
The Accelerometer output current and the force received are linear output, and the user can select the appropriate sampling resistor to achieve the highest accurate output. At the same time, the Tempe Sensor is built in, and the output current changes linearly with temperature. The user compensates the Deviation value and Scale factor to reduce the temperature effect (optional). The product can be used for both static and dynamic testing and is a standard vibration sensor.
| No. | Parameter | AV1-01 |
| 1 | measuring range | ±50g |
| 2 | Threshold value | 5μg |
| 3 | Deviation value k0/k1 | ≤(±3 mg) |
| 4 | Scale factor k1 | 1.3±0.2 mA/g |
| 5 | Second-order nonlinear coefficient K2 | ≤±20μg /g2 |
| 6 | 0g 4 h short-term stability | ≤10 μg |
| 7 | 1g 4 h short-term stability | ≤10 ppm |
| 8 | Deviation value Comprehensive repeatability σk0 (1σ,1 month) | ≤10 μg |
| 9 | Scale factor Comprehensive repeatabilityσk1/k1 (1σ,1 month) | ≤15ppm |
| 10 | Nonlinear coefficient Comprehensive repeatabilityσk2/k1(1σ,1 month) | ≤±10 μg /g2 |
| 11 | Deviation value Temperature Coefficient | ≤±10 μg /ºC |
| 12 | Scale factor Temperature Coefficient | ≤±20 ppm /ºC |
| 13 | noise(Sampling resistance is 840Ω) | ≤5mv |
| 14 | Natural frequency | 400~800 Hz |
| 15 | bandwidth | 800~2500 Hz |
| 16 | Vibration | 5g(20-2000Hz) |
| 17 | Shock | 100g,5ms,1/2sin |
| 18 | Operating temperature measuring range | -40-+85ºC |
| 19 | Storage temperature measuring range | -60-+120ºC |
| 20 | power supply | ±12~±15V |
| 21 | Current consumption | ≤±20mA |
| 22 | Tempe Sensor | Yes and No two type |
| 23 | size | Ф25.4X30mm |
| 24 | weight | ≤80g |

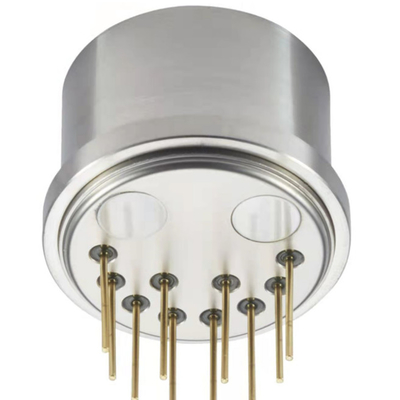

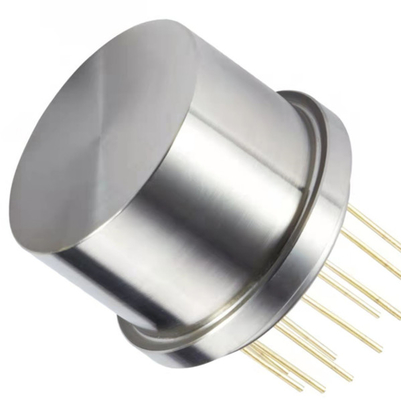

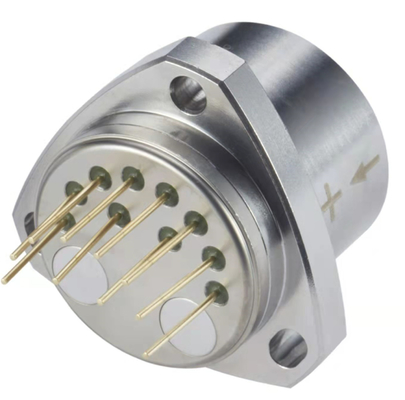

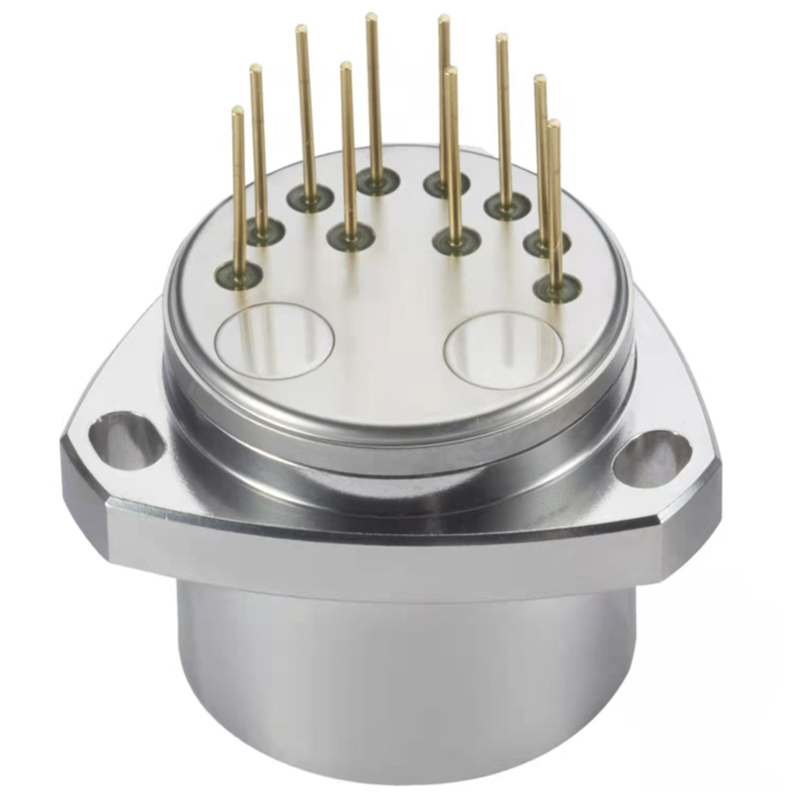

Product Display
Outline drawing
Installation requirements
The flange surface of the sensor is the installation reference surface.
Precautions
The sensor is a wearing part. Please handle it with care and do not drop or touch it. The impact and vibration shall not exceed the technical requirements of the product. The sensor shall be packed reliably during transportation, and there must be no less than 20mm of buffer foam around it, and the sensor shall be fixed with foam. When multiple sensors are packed, ensure that they do not collide with each other.
Before power-on, check the wiring of each pin, which shall not be connected incorrectly.
The product is stored in the original packaging box in a dry and ventilated environment. Handle with care when moving.
Pay attention to electrostatic protection.
