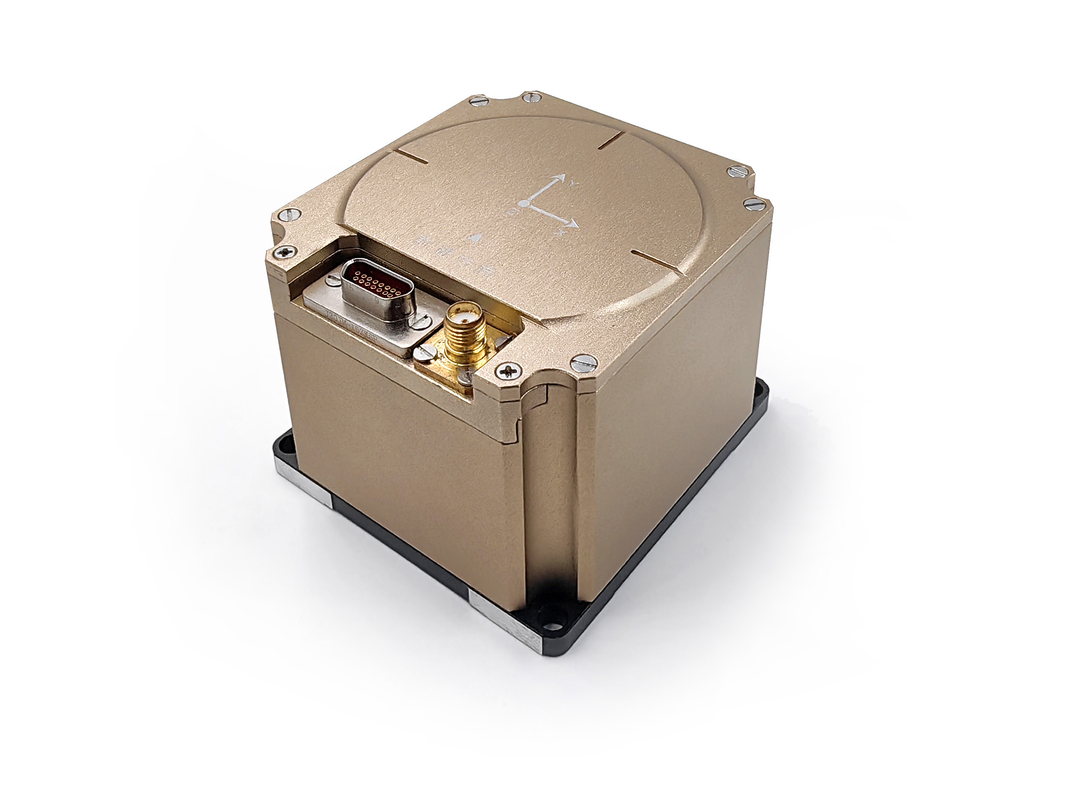

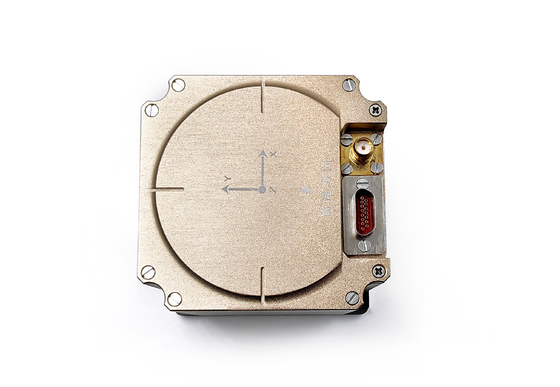

High Precision Inertial Measurement Unit with CAN/RS422 Communication Interface
Product Description
Product Description
Wide measurement range, built-in multi-mode satellite navigation system, angular rate, linear acceleration.synchronization signal acquisition, Selectable accelerometer measurement range,built-in high precision crystal oscillator, time synchronization error within ppm. Support secondary development,the technical status of the shock absorber is optional.
Technical Parameter
Gyro Measurement Range
±300°/s
Gyro Random walk coefficient
≤0.03°/√h
Gyro Zero-bias stability at room temperature
≤0.8°/h (10s, 1σ)
Gyro Zero-bias stability at full temperature
≤1°/h (10s, 1σ)
Gyro Zero Bias Repeatability at room temperature
≤0.8°/h (1σ)
Gyro Zero-bias Repeatability at full temperature
≤1°/h (1σ)
Gyro Scale Factor Nonlinearity
≤300ppm
Gyro Scale Factor Repeatability
≤300ppm(1σ)
Gyro Startup Time
≤5s
Gyro Bandwidth
≥300Hz
Accelerometer Measurement Range
±20g
Accelerometer Zero Bias Stability at full temperature
≤100μg(10s, 1σ)
Accelerometer Zero Bias Repeatability at full temperature
