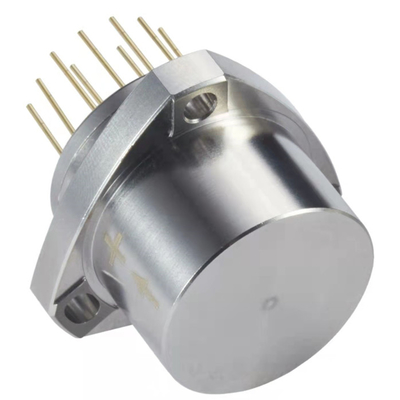

High Precision Quartz Flexure Accelerometer with Temperature Compensation for Navigation
Product introduction
ACC1-Quartz Flexible Accelerometer- Datasheet-v3.2...
ACC1 series quartz flexible accelerometer is a high-precision sensor designed for exceptional long-term stability, repeatability, rapid startup performance, environmental adaptability, and high reliability. It is suitable for both static and dynamic testing and also functions as a standard vibration and tilt sensor.
The accelerometer features an output current that maintains a linear relationship with force or acceleration, allowing users to achieve high-precision output by selecting an appropriate sampling resistor through calculation. Additionally, the built-in temperature sensor enables bias and scale factor compensation, effectively minimizing the impact of ambient temperature fluctuations based on user requirements.
Outline Drawing

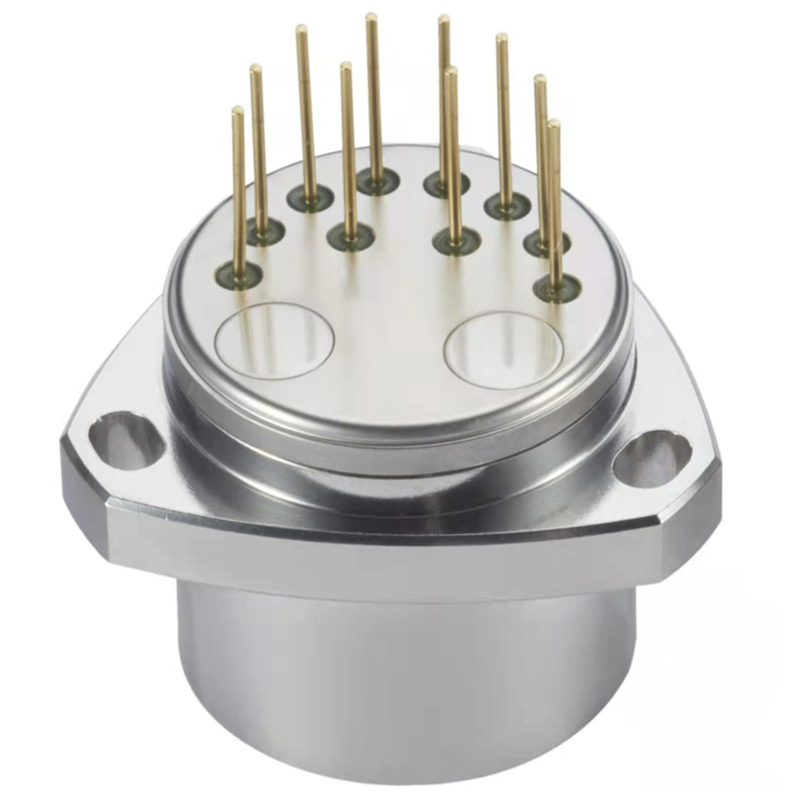

Standard version of accelerometer
Technical parameters
| Number | Parameter | ACC1-01 | ACC1-02 | ACC1-03 |
| 1 | Range | ±50g/±60g/±70g | ±50g/±60g/±70g | ±50g/±60g/±70g |
| 2 | Threshold | 5μg | 5μg | 5μg |
| 3 | Bias K0/K1 | ≤±3mg | ≤±3mg | ≤±5 mg |
| 4 | Scale factor K1 | 1.0~1.30 mA/g | 1.0~1.30 mA/g | 1.0~1.30 mA/g |
| 5 | Class II nonlinear coefficient K2 | ≤±10μg /g2 | ≤±15μg /g2 | ≤±20μg /g2 |
| 6 | 0 g 4 hour short term stability | ≤10 μg | ≤10μg | ≤10 μg |
| 7 | 1g 4-hour short-term stability | ≤10 ppm | ≤10 ppm | ≤10 ppm |
| 8 |
Bias comprehensive repeatability |
≤10 μg | ≤15μg | ≤25 μg |
| 9 | Scale factor comprehensive repeatability σ K1/K1 (1σ, 1 month) | ≤10ppm | ≤20 ppm | ≤30 ppm |
| 10 |
Nonlinear coefficient comprehensive repeatabilityK2/K1 (1σ, 1 month) |
≤±10 μg /g2 | ≤±15 μg /g2 | ≤±20 μg /g2 |
| 11 | Bias temperature coefficient (full temperature average) |
≤±10 μg /℃ | ≤±20 μg /℃ | ≤±30 μg /℃ |
| 12 | Scale Factor Temperature Coefficient (Averaged Over Temperature) |
≤±10 ppm /℃ | ≤±30 ppm /℃ | ≤±50 ppm /℃ |
| 13 | Noise (840 Ω sampling resistor) | ≤5mv | ≤8.4mv | ≤8.4mv |
| 14 | Natural frequency | 400~800 Hz | 400~800 Hz | 400~800 Hz |
| 15 | Bandwidth | 800~2500 Hz | 800~2500 Hz | 800~2500 Hz |
| 16 | Random vibration | 6g(20-2000Hz) | 6g(20-2000Hz) | 6g(20-2000Hz) |
| 17 | Impact | 100g,8ms,1/2sin | 100g,8ms,1/2sin | 100g,8ms,1/2sin |
| 18 | Operating temperature range | -55~+85℃ | -55~+85℃ | -55~+85℃ |
| 19 | Storage temperature range | -60~+120℃ | -60~+120℃ | -60~+120℃ |
| 20 | Power supply | ±12~±15V | ±12~±15V | ±12~±15V |
| 21 | Current consumption | ≤±20mA | ≤±20mA | ≤±20mA |
| 22 | Temperature sensor | Option | Option | Option |
| 23 | Size | Ф25.4X30mm | Ф25.4X30mm | Ф25.4X30mm |
| 24 | Weight | ≤80g | ≤80g | ≤80g |
