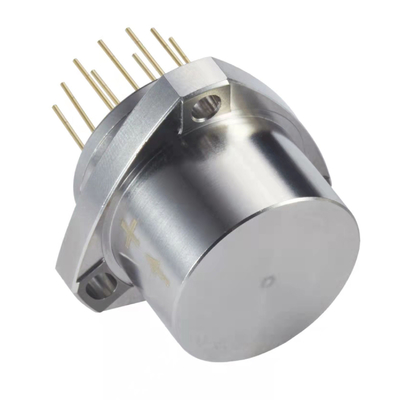

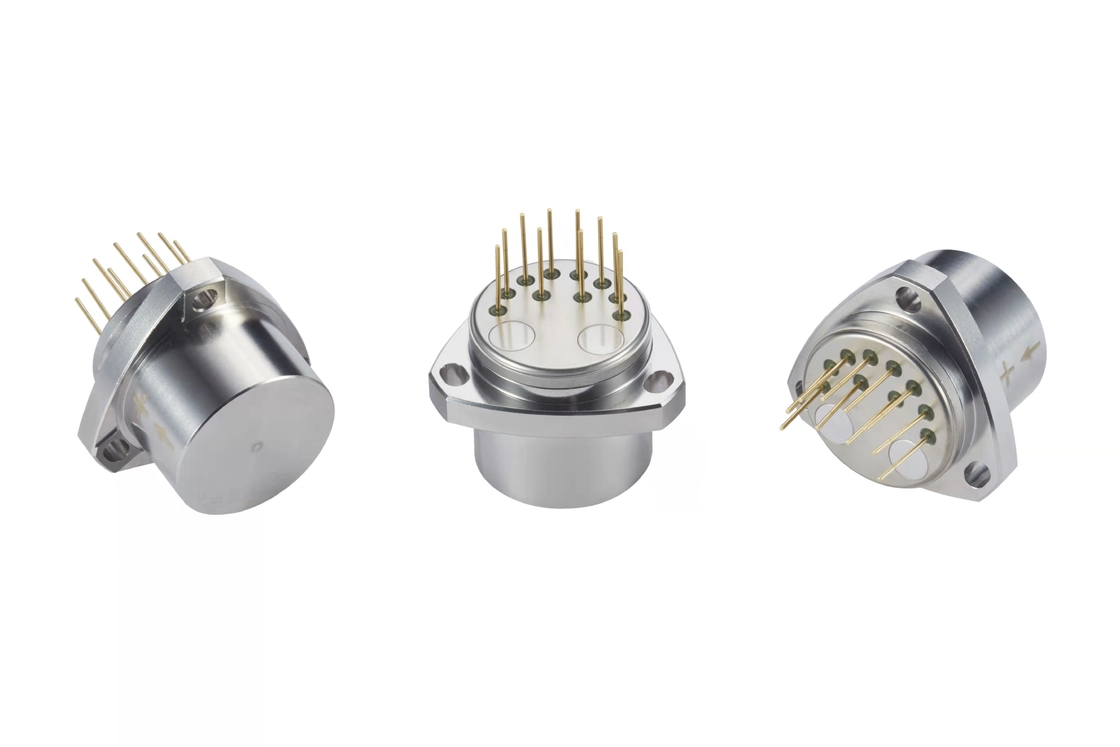

Aerospace Navigation Quartz Flexure Accelerometer Vibration Sensor for Inertia Navigation

Brand Name:	FIREPOWER
Model Number:	ACC1-01
MOQ:	1
Price:	1600$
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

±50/60/70g

Threshold Value:

5μg

Bias K0/K1:

≤±3mg

Scale Factor K1:

1.0~1.30 Ma/G

Class II Nonlinear Coefficient K2:

≤±10μg /G2

Bias Comprehensive Repeatability σ:

≤10 μg

Scale Factor Comprehensive Repeatability:

≤10ppm

Noise (840 Ω Sampling Resistor):

≤5mv

Bandwidth:

800~2500 Hz

Size:

Ф25.4X30mm

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

Inertia Navigation Quartz Flexure Accelerometer

Vibration Sensor Quartz Flexure Accelerometer

Aerospace Navigation Quartz Flexure Accelerometer

Product Description

Product Description

The ACC1 series vibration acceleration sensor is a high - precision accelerometer boasting outstanding long - term stability, repeatability, start - up performance, environmental adaptability, and high reliability. It is suitable for both static and dynamic testing scenarios, serving as both a standard vibration sensor and a tilt sensor.

The product's output current exhibits a linear relationship with the applied force or acceleration. Users can, through calculation, choose an appropriate sampling resistance to ensure high - precision output. Additionally, a built - in temperature sensor is available for bias and scale factor compensation, mitigating the impact of ambient temperature as per user requirements.

Technical Parameters

Serial number	Parameter	ACC1-01	ACC1-02	ACC1-03
1	Range	±50g,±60g,±70g	±50g,±60g,±70g	±50g,±60g,±70g
2	Threshold	5μg	5μg	5μg
3	Bias K0/K1	≤±3mg	≤±3mg	≤±5 mg
4	Scale factor K1	1.0~1.30 mA/g	1.0~1.30 mA/g	1.0~1.30 mA/g
5	Class II nonlinear coefficient K2	≤±10μg /g2	≤±15μg /g2	≤±20μg /g2
6	0 g 4 hour short term stability	≤10 μg	≤10μg	≤10 μg
7	1g 4-hour short-term stability	≤10 ppm	≤10 ppm	≤10 ppm
8	Bias comprehensive repeatability σK0 (1σ, 1 month)	≤10 μg	≤15μg	≤25 μg
9	Scale factor comprehensive repeatability σ K1/K1 (1σ, 1 month)	≤10ppm	≤20 ppm	≤30 ppm
10	Nonlinear coefficient comprehensive repeatability K2/K1 (1σ, 1 month)	≤±10 μg /g2	≤±15 μg /g2	≤±20 μg /g2
11	Bias temperature coefficient (full temperature average)	≤±10 μg /℃	≤±20 μg /℃	≤±30 μg /℃
12	Scale Factor Temperature Coefficient (Averaged Over Temperature)	≤±10 ppm /℃	≤±30 ppm /℃	≤±50 ppm /℃
13	Noise (840 Ω sampling resistor)	≤5mv	≤8.4mv	≤8.4mv
14	Natural frequency	400~800 Hz	400~800 Hz	400~800 Hz
15	Bandwidth	800~2500 Hz	800~2500 Hz	800~2500 Hz
16	Random vibration	6g(20-2000Hz)	6g(20-2000Hz)	6g(20-2000Hz)
17	Impact	100g,8ms,1/2sin	100g,8ms,1/2sin	100g,8ms,1/2sin
18	Operating temperature range	-55~+85℃	-55~+85℃	-55~+85℃
19	Storage temperature range	-60~+120℃	-60~+120℃	-60~+120℃
20	Power supply	±12~±15V	±12~±15V	±12~±15V
21	Current consumption	≤±20mA	≤±20mA	≤±20mA
22	Temperature sensor	Option	Option	Option
23	Size	Ф25.4X30mm	Ф25.4X30mm	Ф25.4X30mm
24	Weight	≤80g	≤80g	≤80g

Outline Drawing
