High Precision Single-axis MEMS gyro chip with 1°/h bias for marine and stabilization

Brand Name:	Firepower
Model Number:	MGC500-P1
MOQ:	1
Price:	1500$
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

150°/s

Bias Stability (10 S Smoothing):

1°/h

Bias @ 25℃:

45dph

Angle Random Walk:

0.08°/√ H

Bias Repeatability:

2°/h

Scale Factor Repeatability:

30ppmx

Non - Linearity @ Full Scale (FS):

100ppm

Bandwidth:

≥100Hz

Packaging Details:

BOX+Sponge

Supply Ability:

500/month

Highlight:

High Precision MEMS gyro chip

MEMS Gyro Chip

Single-axis MEMS gyro chip

Product Description

High Precision Single-axis MEMS Gyro Chip

1°/h bias stability for marine and stabilization applications

Product Overview

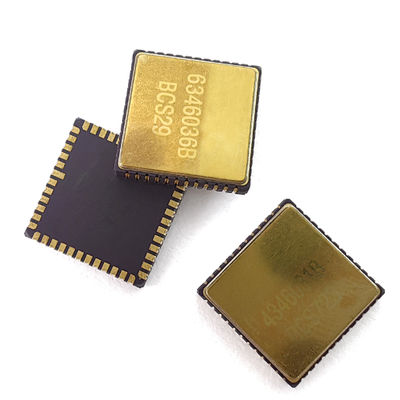

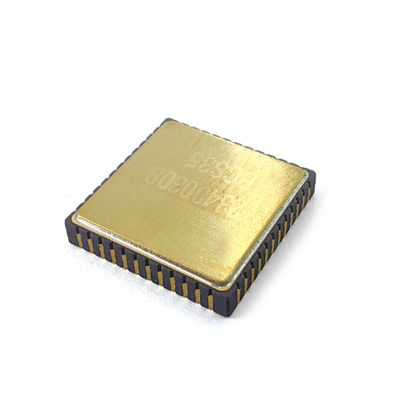

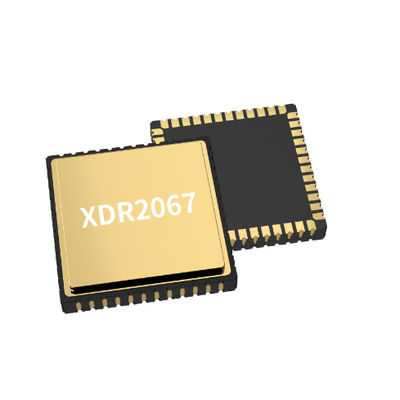

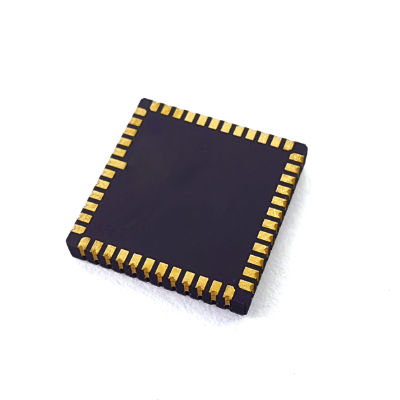

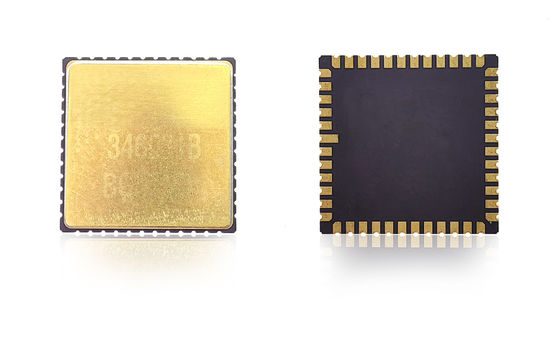

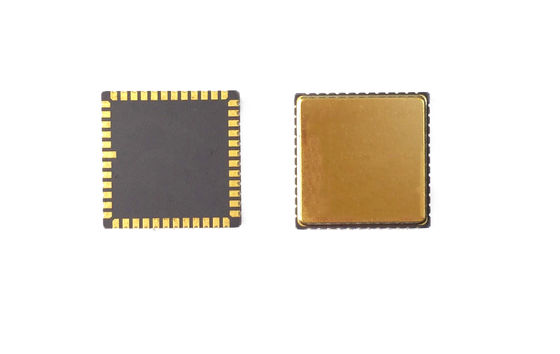

The MGC series single-axis MEMS gyroscope chips are high-performance angular rate sensors designed for precision motion sensing applications. Housed in a compact and robust ceramic package, they feature a fully digital interface that simplifies integration into embedded systems.

With ultra-low bias instability down to 1°/h, angle random walk (ARW) as low as 0.08°/√h, and wide bandwidth, the MGC series offers exceptional performance in both dynamic and static environments. Their low noise density and high bias repeatability make them well-suited for applications requiring long-term stability, precision, and reliability.

Ideal Applications

Drones and unmanned aerial vehicles
Autonomous ground vehicles
Robotics and motion control platforms
Inertial Measurement Units
Inertial Navigation Systems
Missile and aerospace subsystems

Technical Parameters

Parameter	MGC500-P1	MGC500-P2	MGC500-P3	Unit
Range	500	500	500	dps
Bias @ 25℃	45	45	45	dph
Noise @ 10Hz	0.0012	0.0012	0.0012	mdps/√Hz
Bias Stability (10 s smoothing)	1.0	2.0	3.0	dph
Angle Random Walk	0.08	0.08	0.08	°/√h
Bias Repeatability (Weekly)	2	2	2	dph
Scale Factor	11185	11185	11185	LSB/dps
Scale Factor Repeatability (Weekly)	30	30	30	ppm
Non-linearity @ Full Scale (FS)	100	100	100	ppm
Non-linearity @ 200 dps	50	50	50	ppm
Bandwidth	≥100	≥100	≥100	Hz
G-Sensitivity	3	3	3	dph/g
Vibration Rectification Coefficient @ 6.06 grms	0.3	0.3	0.3	dph/g²
Vibration Reliability (Power-on)	4000g, 0.5ms
