High Precision Single-axis MEMS gyro chip with 0.5°/h bias for marine and stabilization

High Precision Single-axis MEMS gyro chip with 0.5°/h bias for marine and stabilization

High Precision Single-axis MEMS gyro chip with 0.5°/h bias for marine and stabilization

Brand Name: Firepower
Model Number: MGC150- P05
MOQ: 1
Price: 1500$
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Range:
150°/s
Bias Stability (10 S Smoothing):
0 .5°/h
Bias @ 25℃:
15°/h
Angle Random Walk:
0.06°/√ H
Bias Repeatability:
2°/h
Scale Factor Repeatability:
30ppmx
Non - Linearity @ Full Scale (FS):
100ppm
Bandwidth:
30Hz
Packaging Details:
BOX+Sponge
Supply Ability:
500/month
Product Description

High Precision Single-axis MEMS gyro chip with 0.5°/h bias for marine and stabilization


Product Description

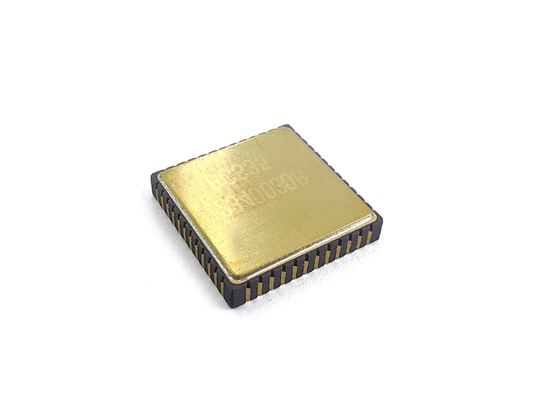

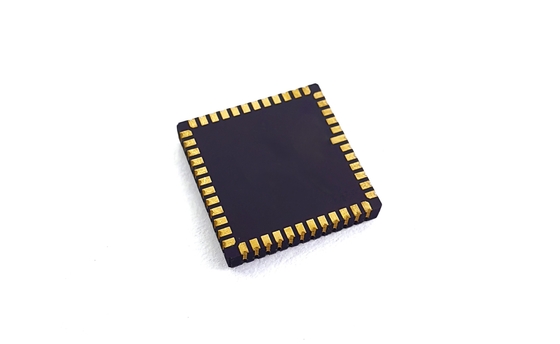

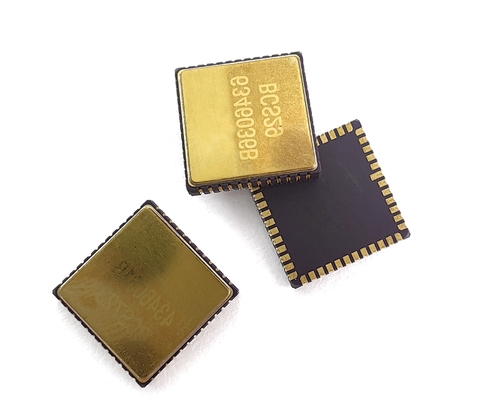

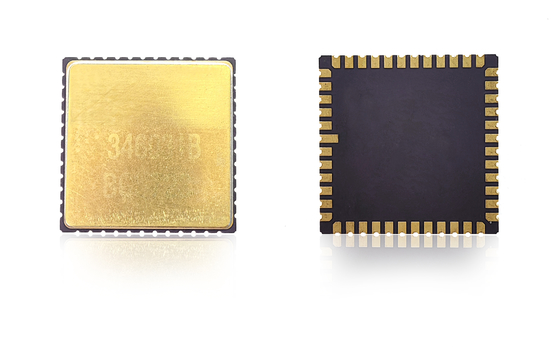

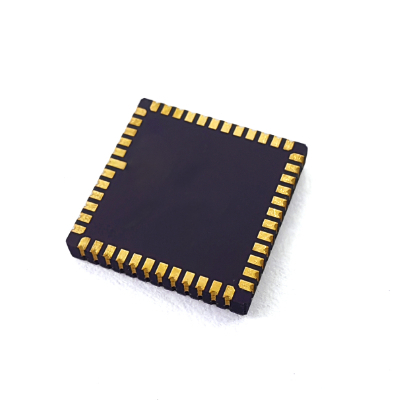

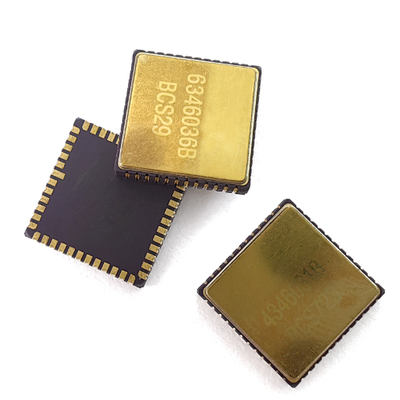

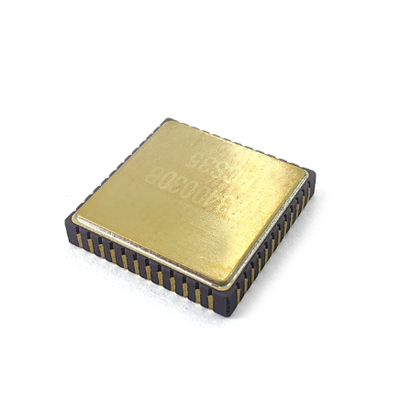

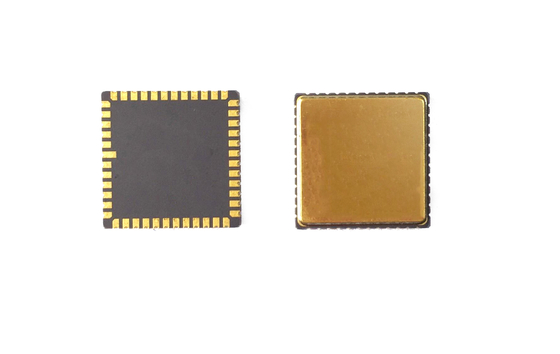

MGC series single-axis MEMS gyroscope chips are high-performance angular rate sensors designed for precision motion sensing applications. Housed in a compact and robust ceramic package, they feature a fully digital interface that simplifies integration into embedded systems.


With ultra-low bias instability down to 0.5°/h, angle random walk (ARW) as low as 0.06°/√h, and wide bandwidth up to ≥100 Hz, the MGC series offers exceptional performance in both dynamic and static environments. Their low noise density and high bias repeatability make them well-suited for applications requiring long-term stability, precision, and reliability.

These gyroscopes chip are ideal for orientation, stabilization, and inertial control in a wide range of advanced systems, including:


  • Drones and unmanned aerial vehicles

  • Autonomous ground vehicles

  • Robotics and motion control platforms

  • Inertial Measurement Units

  • Inertial Navigation Systems

  • Missile and aerospace subsystems

Technical Parameters

   Parameter MGC150- P05 MGC500- P1 MGC500- P2 MGC500- P3 Unit
 Range High Precision Single-axis MEMS gyro chip with 0.5°/h bias for marine and stabilization 0  150 High Precision Single-axis MEMS gyro chip with 0.5°/h bias for marine and stabilization 1  500 High Precision Single-axis MEMS gyro chip with 0.5°/h bias for marine and stabilization 2  500 High Precision Single-axis MEMS gyro chip with 0.5°/h bias for marine and stabilization 3  500 dps
 Bias @ 25℃ 15 45 45 45 dph
Noise @ 10Hz 0.001 0.0012 0.0012 0.0012 mdps/√ H
z
Bias Stability

    (10 s smoothing)		 0 .5 1.0 2.0 3.0 dph
Angle Random
Walk		 0.06 0.08 0.08 0.08 °/√ h
Bias

Repeatability
(Weekly
Repeatability		 2 2 2 2 dph
Scale Factor 38550 11185 11185 11185 LSB/ dps
Scale Factor

Repeatability
(Weekly
Repeatability)		 30 30 30 30 ppm
Non - linearity @
Full Scale (FS)		 100 100 100 100 ppm
Non - linearity @
200 dps		 50 50 50 50 ppm
Bandwidth 30 ≥100 ≥100 ≥100 Hz
G - Sensitivity 2 3 3 3 dph/g
Vibration

Rectification

Coefficient @

6.06 grms		 0.4 0.3 0.3 0.3 dph/g2
Vibration

Reliability
(Power - on))		 4000g , 0. 5ms
