Single-axis MEMS Gyroscope Chip Angular Rate Sensor for Petroleum exploration

Single-axis MEMS Gyroscope Chip Angular Rate Sensor for Petroleum exploration

Product Description

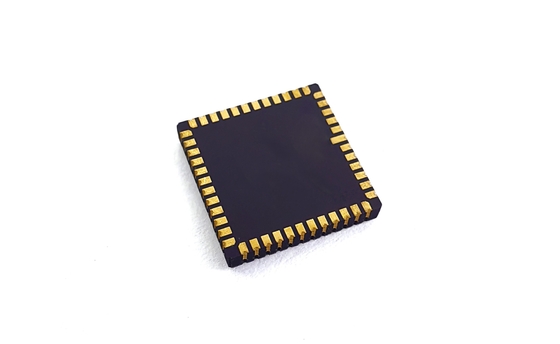

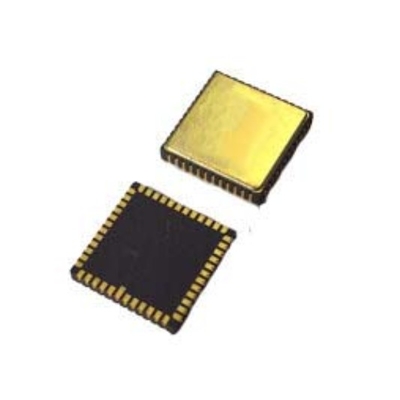

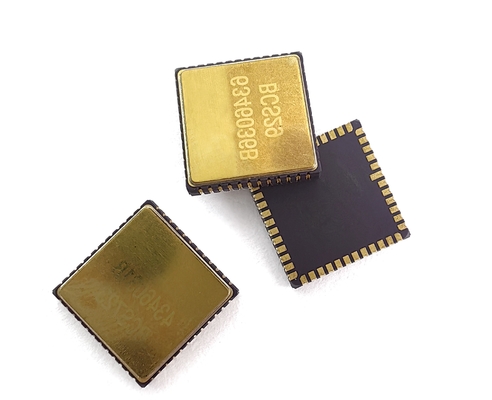

The MGC series single-axis MEMS gyroscopes are high-precision angular rate sensors designed for advanced motion sensing and control applications. These gyros are housed in a compact, hermetically sealed ceramic package and feature a fully digital output interface, ensuring ease of integration into both embedded systems and high-end navigation platforms.

With a bias stability as low as 0.5°/h, angle random walk (ARW) reaching 0.06°/√h, and a wide bandwidth of ≥100 Hz, the MGC series offers exceptional accuracy, low noise performance, and long-term stability. These characteristics make them highly suitable for demanding environments where consistent and reliable angular rate measurements are critical.

The MGC gyroscopes are particularly well-suited for:

• Drones and UAVs – for orientation control and dynamic flight stabilization

• Unmanned ground and marine vehicles – for real-time attitude monitoring

• Robotics and automation – for precise motion feedback and positioning

• Tactical-grade IMUs and INS systems – as core inertial sensing elements

• Aerospace and defense applications – where size, weight, and power (SWaP) efficiency is key

Engineered for both performance and reliability, the MGC series gyros feature robust shock resistance, excellent temperature stability, and minimal vibration sensitivity. Their small footprint and low power consumption make them an ideal choice for size-constrained applications in both commercial and industrial sectors.

Whether used as standalone angular rate sensors or integrated into multi-axis inertial measurement units, the MGC series delivers high-fidelity motion sensing for critical applications where performance cannot be compromised.

Technical Parameters

Parameter	MGC150- P05	MGC500- P1	MGC500- P2	MGC500- P3	Unit
Range	150	500	500	500	dps
Bias @ 25℃	15	45	45	45	dph
Noise @ 10Hz	0.001	0.0012	0.0012	0.0012	mdps/√ H z
Bias Stability     (10 s smoothing)	0 .5	1.0	2.0	3.0	dph
Angle Random Walk	0.06	0.08	0.08	0.08	°/√ h
Bias Repeatability (Weekly Repeatability	2	2	2	2	dph
Scale Factor	38550	11185	11185	11185	LSB/ dps
Scale Factor Repeatability (Weekly Repeatability)	30	30	30	30	ppm
Non - linearity @ Full Scale (FS)	100	100	100	100	ppm
Non - linearity @ 200 dps	50	50	50	50	ppm
Bandwidth	30	≥100	≥100	≥100	Hz
G - Sensitivity	2	3	3	3	dph/g
Vibration Rectification Coefficient @ 6.06 grms	0.4	0.3	0.3	0.3	dph/g2
Vibration Reliability (Power - on))	4000g , 0. 5ms
