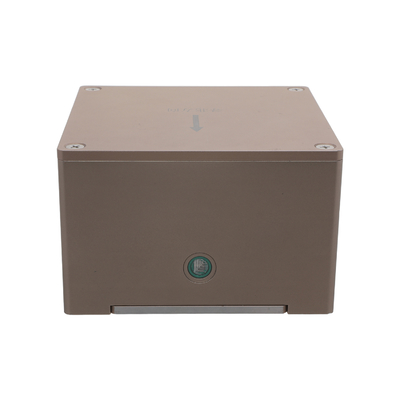

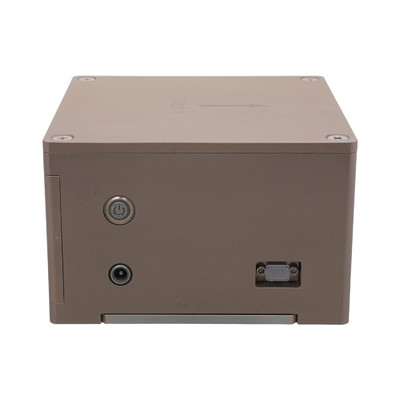

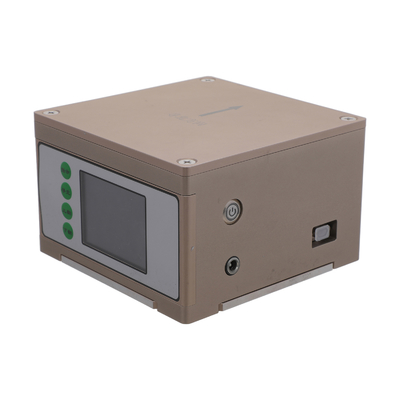

Produced by Firepower Company,High Accuracy Gyro North Finder 0.5° Accuracy with LCD Display

Produced by Firepower Company,High Accuracy Gyro North Finder 0.5° Accuracy with LCD Display

Brand Name:	1
Model Number:	NF103A
MOQ:	1
Price:	2000$
Payment Terms:	L/C,D/P,T/T,Western Union
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

North Seeking Accuracy:

±0.5°

Pitch Accuracy:

±0.1°

Roll Angle Accuracy:

±0.1°

Tilt Adaptability:

±15°

Overall Dimensions:

135*135*85mm

Weight:

≤1500g

Heading Angle Tracking Measurement Accuracy:

0.5°(5min)

Packaging Details:

Sponge + Carton

Supply Ability:

500/month

Highlight:

high accuracy gyro north finder

gyro north finder with LCD display

0.5° accuracy gyro north finder

Product Description

High Accuracy Gyro North Finder 0.5° Accuracy with LCD Display

Key Specifications

Attribute	Value
North seeking accuracy	±0.5°
Pitch accuracy	±0.1°
Roll angle accuracy	±0.1°
Tilt adaptability	±15°
Overall dimensions	13513585mm
Weight	≤1500g
Heading angle tracking measurement accuracy	0.5°(5min)

Product Overview

Portable Fiber Optic North Finder with LCD Display designed for mining and industrial applications. Features commercial-grade performance with rich functionality, built-in explosion-proof battery, and easy portability.

Key Features

Compact industrial-grade design with small size and light weight
Low power consumption for extended operation
Built-in explosion-proof battery for safety in hazardous environments

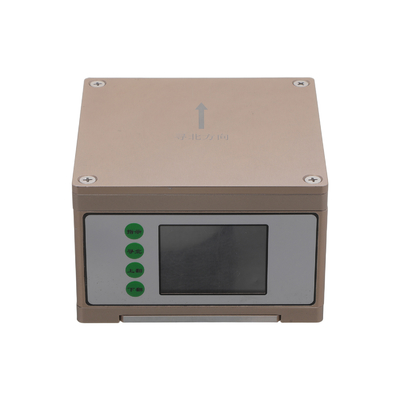

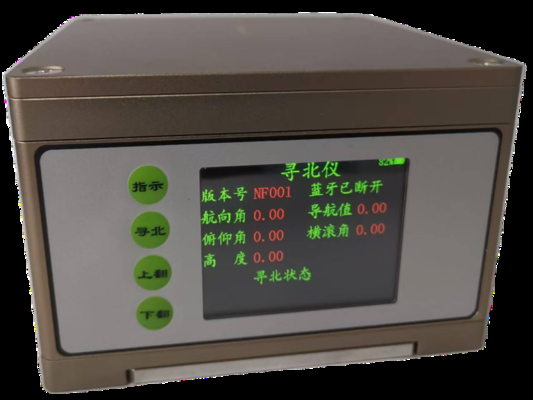

LCD display for clear readings and configuration

Typical Applications

Radar, antenna, and vehicle initial alignment and direction control
Providing accurate azimuth datum in tunnel construction, mining, and geodetic survey projects
Field survey, outdoor exploration, and communication base station antenna orientation

Technical Specifications

PROJECT	UNIT	COMMERCIAL GRADE NF-103A	COMMERCIAL GRADE NF-103B	INDUSTRIAL GRADE NF-102A	INDUSTRIAL GRADE NF-102B
Communication mode		Screen display/mobile phone APP/upper computer software RS422/RS485	RS422/RS232
Connector		J30JM-9ZKP	J30JM-9ZKP	J30JM-15ZKP	J30JM-15ZKP
Power consumption (with laser indication)	W	≤3	≤3
Power consumption (without laser indication)	W	≤1.2	≤1.2	≤1	≤1
Power supply	V	Standby for 18h with explosion-proof battery	DC9V~26V	DC9V~26V
Operating temperature	℃	0~+40	0~+40	-40~+60	-40~+60
North seeking time	min	≤3
North seeking accuracy	°	±0.5	±1	±0.5	±1
Pitch accuracy	°	±0.1	±0.5	±0.1	±0.5
Roll angle accuracy	°	±0.1	±0.5	±0.1	±0.5
Tilt adaptability	°	±15
Altitude measurement	m	include	include
Overall dimensions	mm	13513585		606060
Installation dimensions	mm	119*119		46*53
Weight	g	≤1500	≤1500	≤400	≤400
Heading angle tracking measurement accuracy		0.5°(5min)
Pitch angle tracking measurement accuracy		0.1°(5min)
Roll angle tracking measurement accuracy		0.1°(5min)
Optional configuration		MA Certified, Intrinsically Safe		MA certified, flameproof
Implementation standards		GB/T3836.1-2021 GB/T3836.2-2021
IP rating		IP55		IP65
