Customized FOG Fiber Optic Angular Rate Sensor for Inertial Measurement Unit

Brand Name:	FIREPOWER
Model Number:	MFOG103
MOQ:	1
Price:	500$
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measurement Range:

350°/s

Bias Repeatability:

1°/h

Zero Bias Stability:

1°/h

Dimension:

60 Mm × 60 Mm × 17 Mm

Weight:

≤80g.

Impact:

≥1500g

Packaging Details:

sponge +carton

Supply Ability:

500/month

Highlight:

FOG fiber optic rate sensor

angular rate sensor for IMU

customized inertial measurement sensor

Product Description

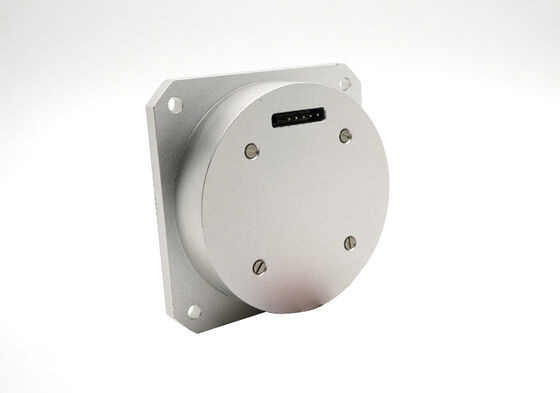

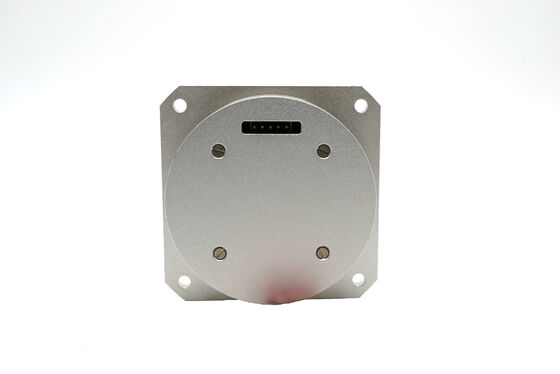

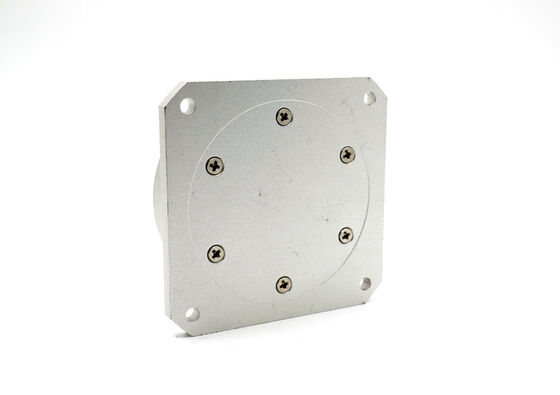

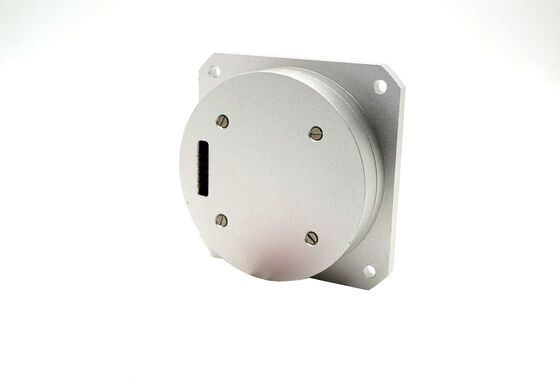

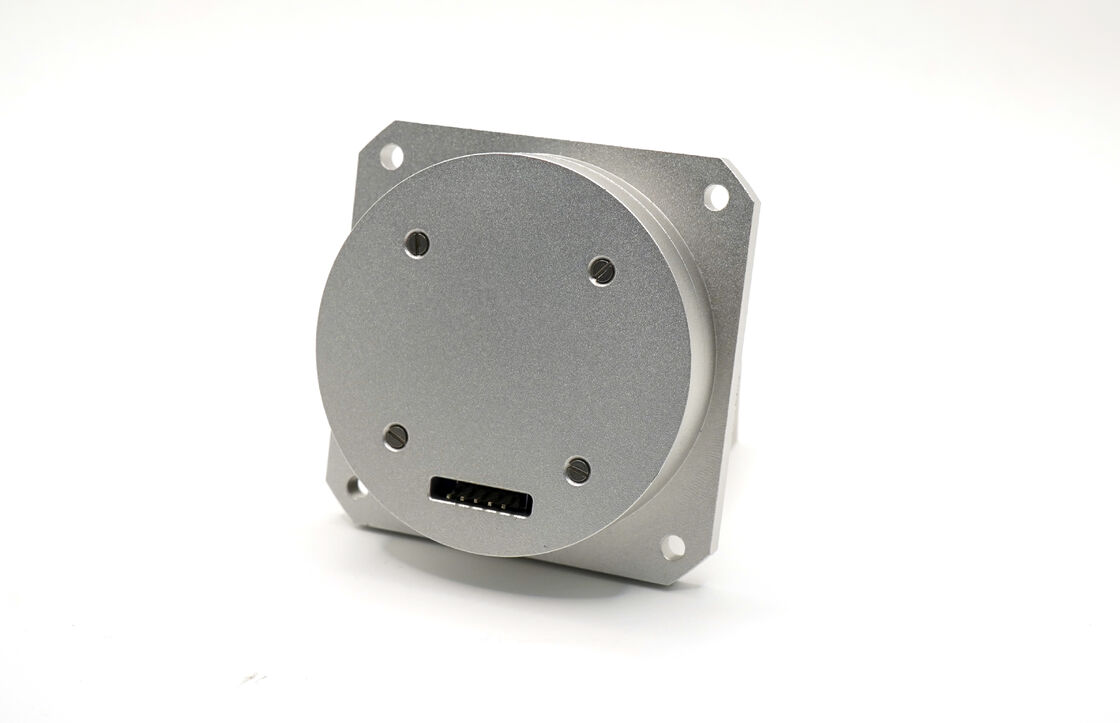

Customized FOG Fiber Optic Angular Rate Sensor for Inertial Measurement Unit

Product Overview

The MFOG-103 micro-nano fiber optic gyroscope is a high-performance angular rate sensor that integrates optical, mechanical, and electronic technologies. Based on the Sagnac effect, it incorporates multiple micro-nano fiber optic devices and measures angular rate by detecting, processing, and feedback-controlling the phase difference generated by two counter-propagating light beams within the fiber coil.

The product features a simple and robust structure with no moving or wearing parts, offering fast start-up, compact size, light weight, and high reliability. The MFOG-103 is suitable for attitude measurement and control applications across various carrier platforms.

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber optic coil skeleton, housing, and other mechanical structural components

Performance Parameters

Serial Number	Parameter	Performance Indicators
1	Range (°/s)	±350
2	Scale Factor (mV/°/s)	6±0.6
3	Zero-bias Stability (10s, 1σ, °/H)	≤1
4	Zero-bias Repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random Walk (°/√H)	≤0.02
8	Power Supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years)	≥15
13	MTBF (Calculated Assessment)	≥100000

Outline Drawing
