Navigation Grade Fiber Optic Gyroscope FOG)Sensor for Aerospace Inertial Navigation System

Name: Navigation Grade Fiber Optic Gyroscope FOG)Sensor for Aerospace Inertial Navigation System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-910
Price: 500 USD
Availability: InStock

Brand Name:	FIREPOWER
Model Number:	MFOG-910
MOQ:	1
Price:	500$
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measurement Range:

240°/s

Bias Repeatability:

0.8°/h

Size:

82mmx82mmx 19.5mm

Zero-bias Stability:

0.8°/h

Scale Factor Nonlinearity:

≤1000ppm

Acceleration:

≥70g

Packaging Details:

sponge +carton

Supply Ability:

500/month

Highlight:

fiber optic gyroscope aerospace navigation

inertial navigation system FOG sensor

navigation grade gyroscope sensor

Product Description

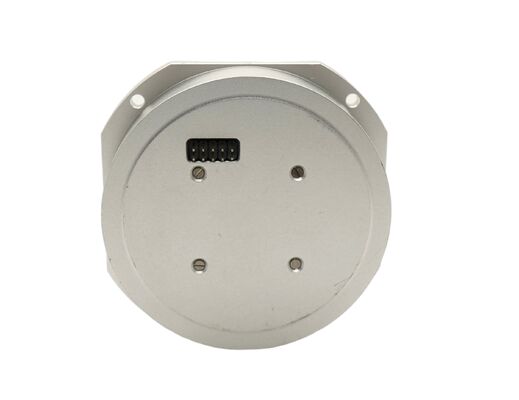

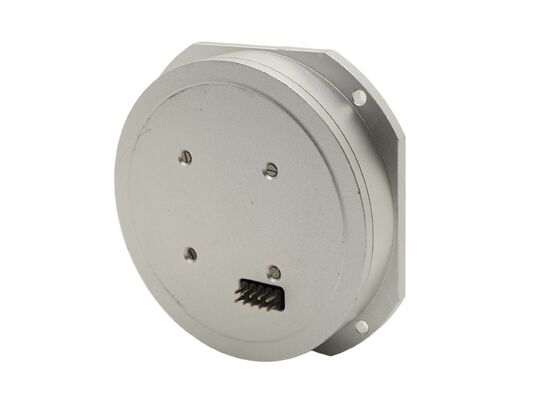

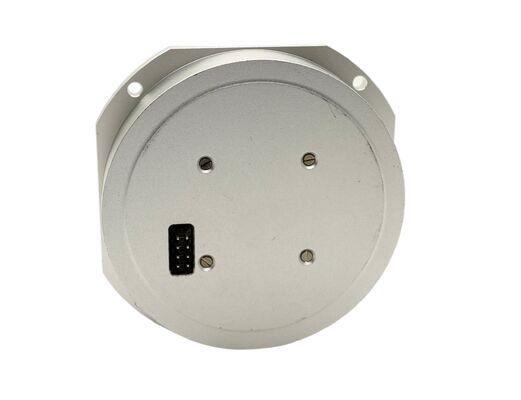

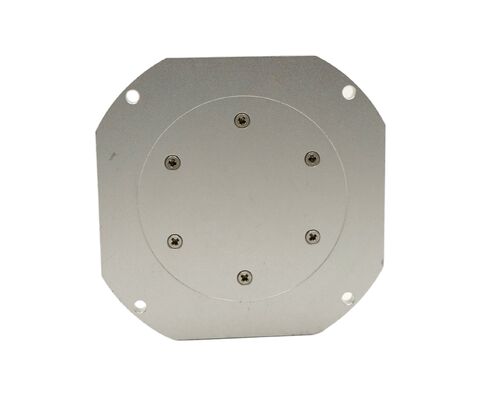

MFOG-910 Micro-Nano Fiber Optic Gyroscope

The MFOG-910 Micro-Nano Fiber Optic Gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic technologies. Utilizing the Sagnac effect principle, this navigation-grade FOG sensor incorporates micro-nano fiber-optic devices to detect, process, and provide feedback on phase differences between counter-propagating light beams, delivering precise angular rate measurement for aerospace inertial navigation systems.

Engineered with optical path assemblies, electronic circuits, and mechanical structures, this product features a streamlined design with no moving or wearing components. This ensures rapid startup, compact dimensions, lightweight construction, and exceptional reliability, making it ideal for attitude control and motion measurement across various carrier platforms.

Technical Specifications

Parameter	Specification
Range (°/s)	±240
Scale Factor (mV/°/s)	47±5
Scale Factor Nonlinearity (ppm)	≤1000
Zero-Bias Stability (10s, 1σ, °/H)	≤0.8
Zero-Bias Repeatability (1σ, °/H)	≤0.8
3dB Bandwidth (Hz)	≥1000
Random Walk (°/√H)	≤0.02
Power Supply (V)	5±0.25+12
Power Consumption (W)	≤1.5
Impact Resistance (g)	≥1500
Vibration Resistance (g)	≥70
Service Life (years)	≥15
MTBF (Calculated)	≥100,000 hours

Key Features

Navigation-grade precision for aerospace applications
Solid-state design with no moving parts
Fast startup and high reliability
Compact and lightweight construction
High impact and vibration resistance
Low power consumption
Extended service life and high MTBF

Installation Dimensions
