Advanced North Seeking Finder with 0.7° Accuracy for Tunnel Construction

Brand Name:	FIREPOWER
Model Number:	NF102
MOQ:	1
Price:	1000$
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Packaging Details:

sponge +carton

Supply Ability:

500/month

Highlight:

Gyro north finder for tunnel construction

North seeking finder with 0.7° accuracy

Gyro compass for underground drilling

Product Description

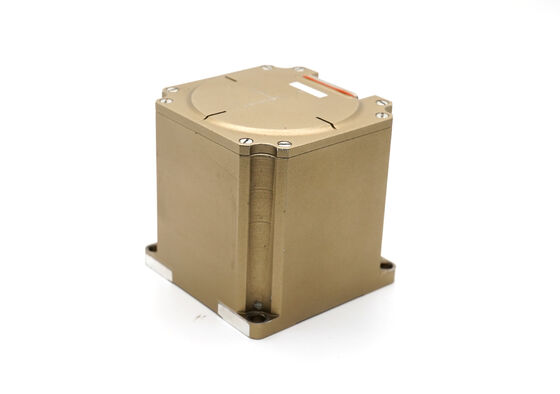

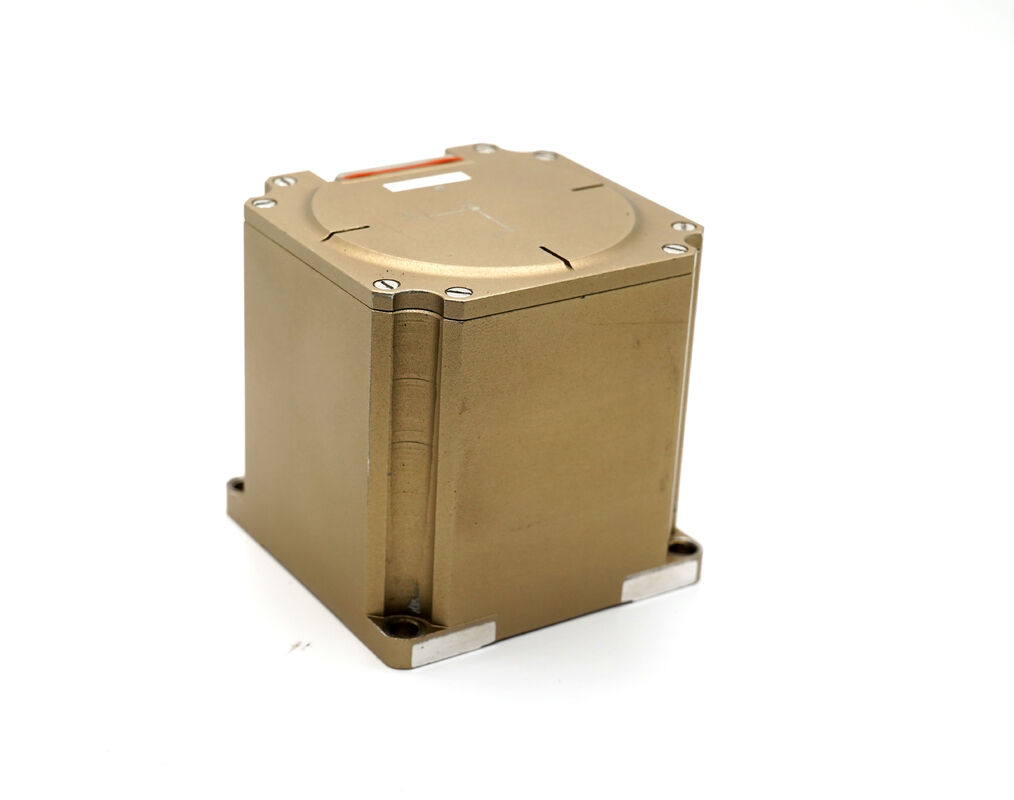

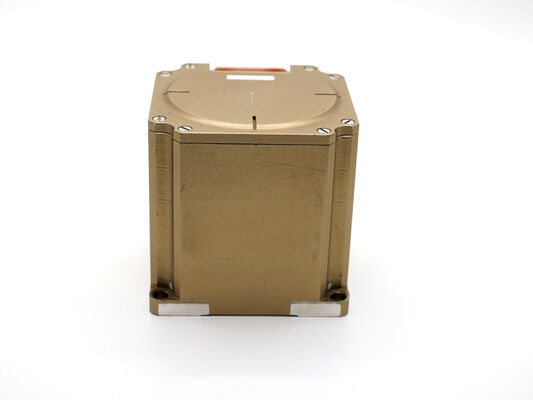

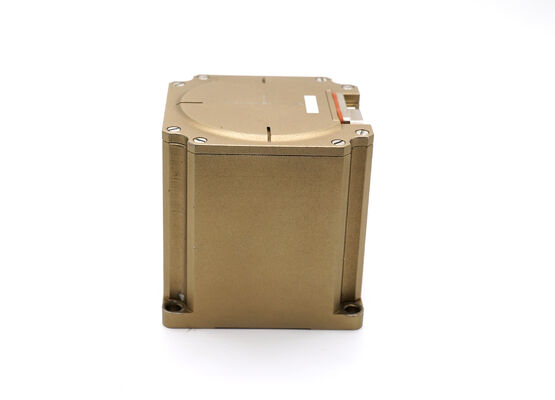

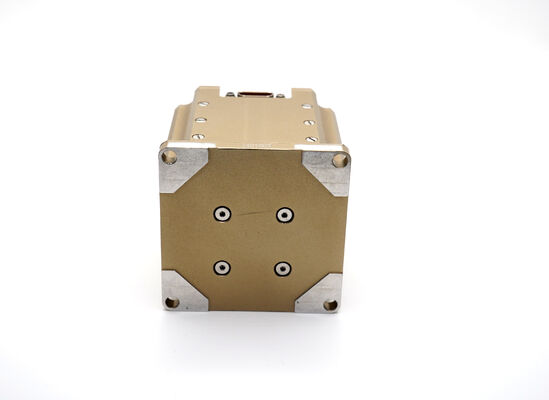

Advanced North Seeking Finder with 0.7° Accuracy for Tunnel Construction

Designed for professional navigation tasks, the NF-102 measures azimuth with a ±0.7° error margin. Its durable design operates in harsh temperatures and provides tilt adaptability of ±15°. With RS422/RS232 outputs, it easily integrates into automated navigation systems, UAVs, or marine platforms requiring real-time directional data.

Technical Specifications

Parameter	Unit	Specification
Supply Voltage	V	9 ~ 12
Product Dimensions	-	606060/4653(4M4)
Product Weight	g	≤ 400
Operating Temperature	℃	-30 ~ +65
Storage Temperature	℃	-55 ~ +85
Outline Structure Diagram	-	Fig. 1 Structure Diagram
Output Mode	-	RS422/RS232

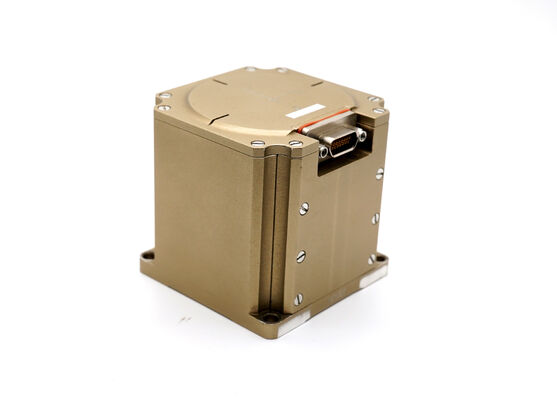

Connector	-	J30JM-15ZKP
Power Consumption	W	≤ 1
Azimuth Error	°	±0.7
Navigation Tracking Error	°	±0.7 (≤ 5min, Rotation Speed ≤ 10 °/s)
Tilt Adaptability	°	±15
