High Precision North Finder Autonomous True North Orientation Device with 0.7° Accuracy

Brand Name:	FIREPOWER
Model Number:	NF102
MOQ:	1
Price:	1000$
Payment Terms:	L/C,T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Azimuth Accuracy:

±0.7°

Navigation Tracking Error:

±0.7° (≤5 Min, Rotation ≤10°/s)

Tilt Adaptability:

±15°

Dimension:

60×60×60 Mm

Weight:

≤ 400 G

Output Interface:

RS422 / RS232

Packaging Details:

sponge +carton

Supply Ability:

500/month

Highlight:

high precision gyro north finder

autonomous true north orientation device

0.7° accuracy north finder

Product Description

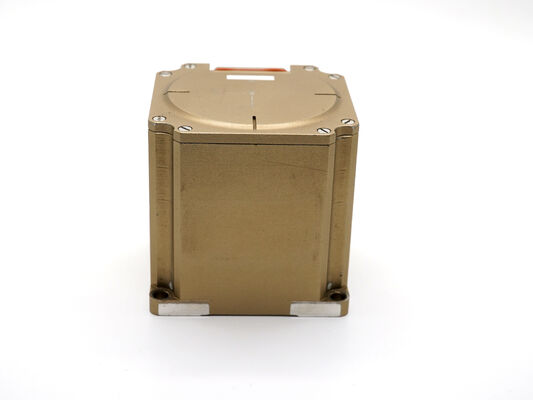

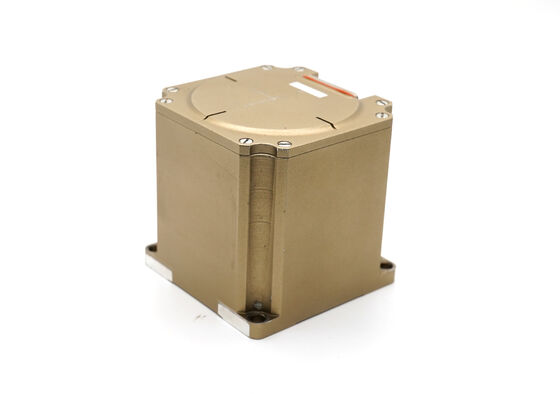

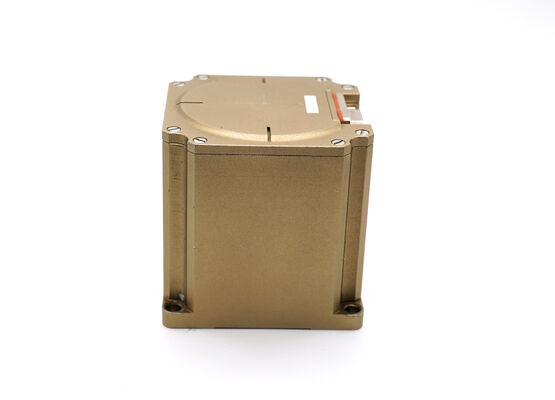

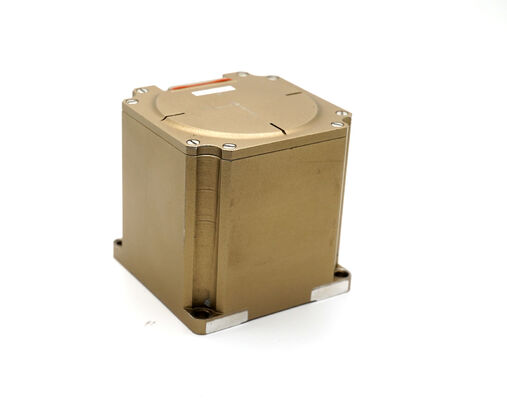

High Precision North Finder Autonomous True North Orientation Device with 0.7° Accuracy

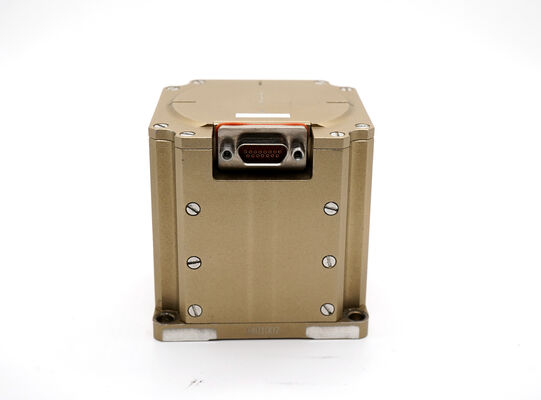

The NF-102 is an industrial-grade north-seeking instrument designed for precision navigation and orientation. With a supply voltage of 9-12V and a compact size of 60*60*60mm, this device provides accurate azimuth measurements with an error margin of ±0.7°. It supports RS422/RS232 output modes and features a robust J30JM-15ZKP connector. Its tilt adaptability of ±15° and navigation tracking error of ±0.7° within 5 minutes make it ideal for surveying and industrial applications.

Product Specifications

Item	Unit	Specification
Supply Voltage	V	9 ~ 12
Product Dimensions	-	606060/4653(4M4)
Product Weight	g	≤ 400
Operating Temperature	℃	-30 ~ +65
Storage Temperature	℃	-55 ~ +85
Output Mode	-	RS422/RS232
Connector	-	J30JM-15ZKP
Power Consumption	W	≤ 1
Azimuth Error	°	±0.7
Navigation Tracking Error	°	±0.7 (≤ 5min, Rotation Speed ≤ 10 °/s)
Tilt Adaptability	°	±15
