Inertial Navigation North Finder System with Fast Data Output

Inertial Navigation North Finder System with Fast Data Output

Inertial Navigation North Finder System with Fast Data Output

Brand Name: FIREPOWER
Model Number: NF102
MOQ: 1
Price: 1000$
Payment Terms: L/C,T/T
Supply Ability: 500/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Navigation Error:
±0.7° (within 5 Min At ≤10°/s Rotation)
Azimuth Error:
±0.7°
Tilt Range:
±15°
Power Consumption:
≤1 W
Dimension:
60×60×60 Mm
Weight:
≤ 400 G
Packaging Details:
sponge +carton
Supply Ability:
500/month
Highlight:

inertial navigation north finder system

,

gyro north finder with fast data output

,

north finder system with inertial navigation

Product Description

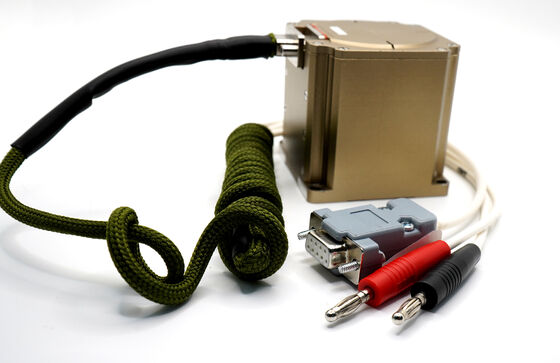

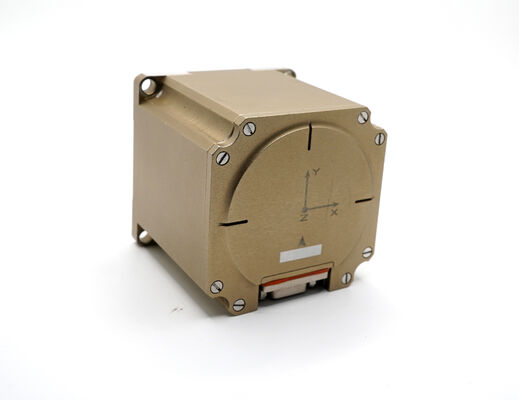

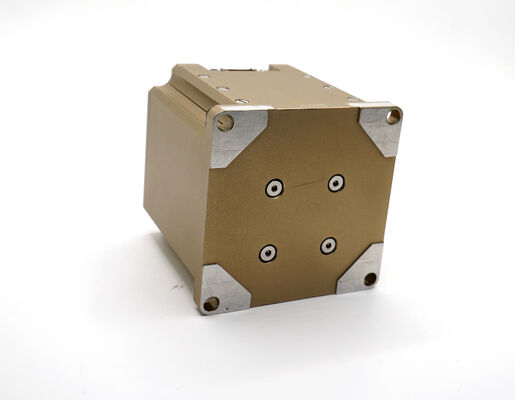

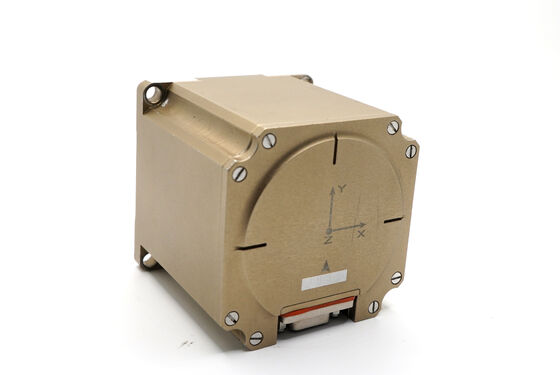

Inertial Navigation North Finder System with Fast Data Output
The NF-102 combines precision and durability in a compact package. Featuring a high-accuracy azimuth error of ±0.7° and excellent tilt adaptability of ±15°, it ensures stable navigation even in challenging environments. Its lightweight design, low power usage, and standard industrial connectors make it suitable for UAVs, marine vessels, and other automated systems requiring precise orientation.
Technical Specifications
Parameter Unit Specification
Supply Voltage V 9 ~ 12
Product Dimensions - 60*60*60/46*53(4*M4)
Product Weight g ≤ 400
Operating Temperature ℃ -30 ~ +65
Storage Temperature ℃ -55 ~ +85
Output Mode - RS422/RS232

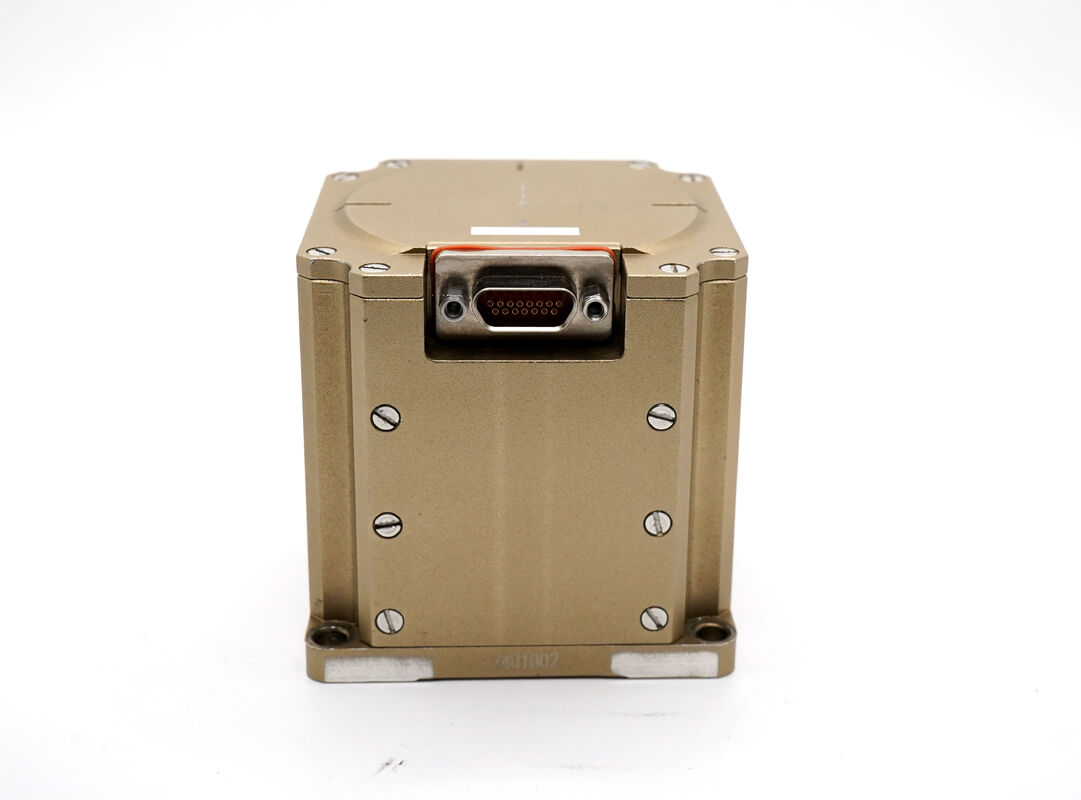

Connector - J30JM-15ZKP
Power Consumption W ≤ 1
Azimuth Error ° ±0.7
Navigation Tracking Error ° ±0.7 (≤ 5min, Rotation Speed ≤ 10 °/s)
Tilt Adaptability ° ±15
Key Features
  • High-precision azimuth measurement with ±0.7° accuracy
  • Excellent tilt adaptability up to ±15°
  • Compact 60*60*60mm design with lightweight construction
  • Low power consumption under 1W
  • Wide operating temperature range (-30°C to +65°C)
  • Standard industrial J30JM-15ZKP connectors
  • Dual RS422/RS232 output interfaces
  • Fast data output for real-time navigation applications
Note: Outline structure diagram available upon request
