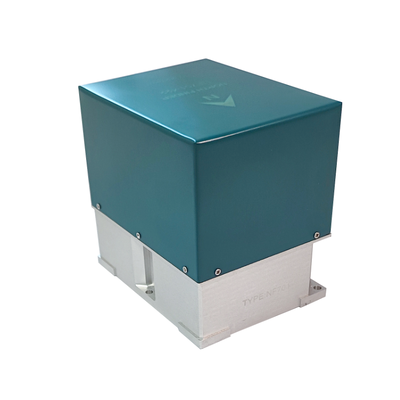

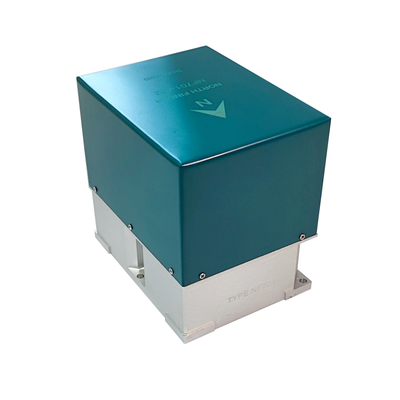

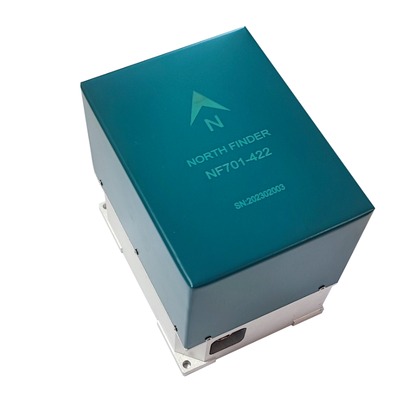

Fiber Optic Gyro North Finder 0.3 deg Accuracy Vehicle Mounted Industrial Navigation System

Name: Fiber Optic Gyro North Finder 0.3 deg Accuracy Vehicle Mounted Industrial Navigation System
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: NF701A
Price: 8,750.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	NF701A

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001:2015, CE, RoHS

North Finding Accuracy:

<= 0.3 Deg (NF701A)

North Finder Dimension:

115 X 90 X 110mm

Output:

RS422

Horizontal Accuracy (1 Sigma):

<= 0.05 Deg

Azimuth Resolution:

<= 0.5 Deg

Weight:

<= 2 Kg

Highlight:

fiber optic gyro north finder

vehicle mounted industrial navigation

0.3 deg accuracy NF701A seeker

Product Description

Fiber Optic Gyro North Finder for Vehicle Mounted Industrial Navigation

The NF701A is a high-precision Fiber Optic Gyroscope (FOG) North Finder engineered for vehicle-mounted industrial navigation systems. By detecting the Earth's rotation angular rate through a FOG, it autonomously calculates true north azimuth within 3 minutes, providing critical heading reference for mining trucks, construction equipment, and mobile industrial platforms operating in GPS-denied or magnetically noisy environments.

Dimensions

115 x 90 x 110 mm

Technical Specifications

North seeking time: <= 3 minutes
North seeking accuracy (1 sigma): <= 0.3 deg (NF701A); <= 0.5 deg (NF701B)
Horizontal accuracy: <= 0.05 deg (1 sigma)
Circumference: <= 0.5 deg (1 sigma)
Weight: <= 2 kg
Power supply: DC 12V ~ 24V
Power consumption: 15 W (peak)
Interface: RS422
Working mode: Automatic self-check on power-up, controlled north seeking via upper computer

Environmental Requirements

Operating temperature: -40 deg C to +70 deg C
Storage temperature: -55 deg C to +85 deg C
Humidity: Relative humidity less than 95%

Reliability

MTBF >= 1000 hours
MTTR <= 30 minutes

Ideal Applications

Mining Truck Navigation: GPS-independent heading for heavy haul trucks in open-pit mines
Construction Equipment Positioning: Precise azimuth for autonomous bulldozers and graders
Mobile Crane Alignment: Quick north reference for crane setup and load positioning
Railway Maintenance Vehicles: Accurate heading for track inspection and repair equipment
Emergency Response Vehicles: Reliable orientation for fire trucks and rescue vehicles in GPS-denied areas

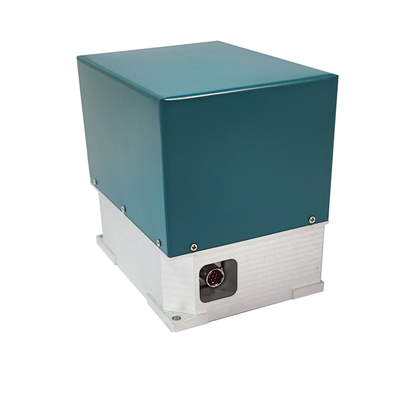

External Plug Configuration (Interface Y50EX-0607TX2)

Plug Pin Number	Functional Definition
a	DC12V ~24V
b	DC12V ~24V GND
c	TD+
d	TD-
e	RD+
f	RD-
g	GND
