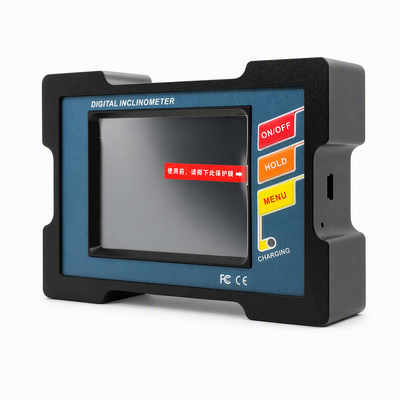

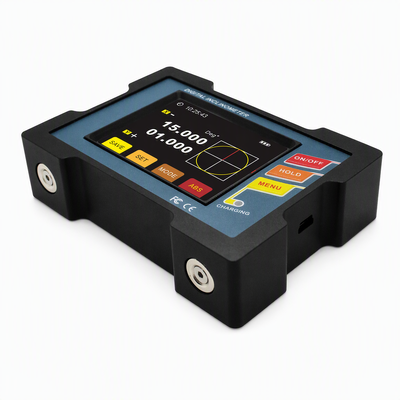

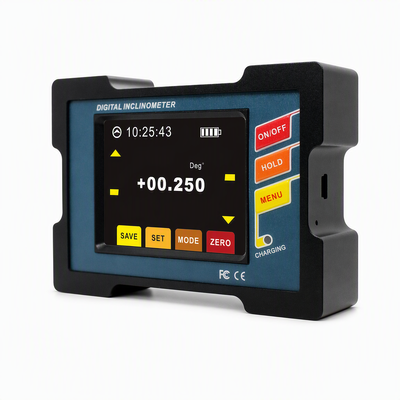

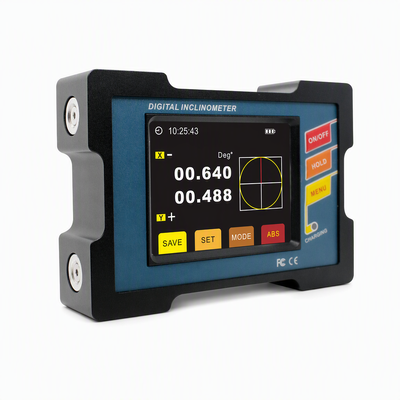

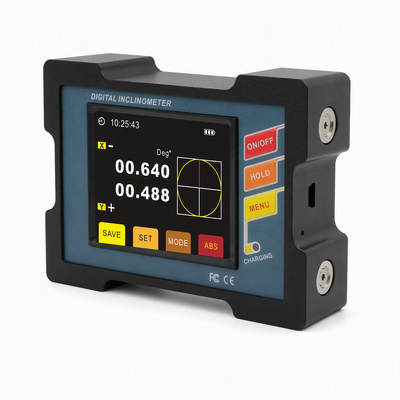

Dual Axis Digital Inclinometer with 0.001° Resolution, ±30° Measurement Range and 64 True Color Night Vision LCD

Name: Dual Axis Digital Inclinometer with 0.001° Resolution, ±30° Measurement Range and 64 True Color Night Vision LCD
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FMI810
Price: 300 USD
Availability: InStock

Model Number:	FMI810
MOQ:	1
Price:	300$
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, RoHS

Angle Measurement Range:

±15° / ±30°

Angle Measurement Accuracy:

<0.005° (Full Range)

Maximum Accuracy:

0.005°

Angle Resolution:

0.001°

Repeatability:

0.003°

Mm/m Accuracy:

0.1 / 0.2 Mm/m

Mm/m Resolution:

0.02 Mm/m

Display Type:

64 True Color Night Vision LCD

Packaging Details:

Sponge + Carton

Supply Ability:

1000/month

Highlight:

0.001° Resolution Digital Inclinometer

±30° Measurement Range Electronic Tilt Sensor

64 True Color Night Vision LCD Dual Axis Inclinometer

Product Description

Dual Axis Digital Inclinometer 0.001° Resolution Electronic Tilt Sensor for Construction & Industrial Leveling

Product Overview

The FMI810/FMI820 digital display inclinometer represents three years of professional development for various industry angle control and measurement applications. Utilizing micro-mechanical control principles with dual-core measurement units, this instrument employs patent interleaved and temperature compensation algorithms to ensure long-term stability and repeatability.

Featuring single and dual-axis measurement capabilities with ±30° range and 0.001° resolution, this product offers fast response, stable data, and magnetic adsorption installation on sides and bottom for convenient operation.

Key Features

High accuracy: <0.005°
Repeatability: 0.003°
Angle resolution: 0.001°
Measurement range: ±30°
User-configurable alarm values
Data storage function
Absolute/Relative measurement switching
Dual-sided and bottom measurement capability
Double benchmark strong magnet installation
Working temperature: -10° to +70℃
Auto-angle interleaved compensation
Auto temperature drift compensation
User-calibratable ZERO function
Built-in rechargeable industrial batteries
Night vision four-color screen
IP54 protection rating
Dual units switch function (°/mm/m)
Optional filter frequency
Three measurement modes (radian, angle, mm)

Applications

Building construction
Automobile four-wheel testing
Road slope measurement
Machinery installation
Piping installation
Industrial platform leveling
Turntable testing
Pan unit angle detection
Production jig alignment

Technical Specifications

Parameter	FMI810	FMI820	Unit
Measuring Axis	Single Axis	Dual Axis	Axis
Angle Measuring Range	±15° / ±30°	±15° / ±30°	°
Angle Measurement Accuracy (Full Range)	<0.005 / <0.01	<0.005 / <0.01	°
Angle Measure Resolution	0.001	0.001	°
Mm/m Measure Range	267 / 577	267 / 577	mm/m
Mm/m Measure Accuracy	0.1 / 0.2	0.1 / 0.2	mm/m
Mm/m Measure Resolution	0.02	0.02	mm/m
Repeatability	0.003	0.003	°
Measurement Mode	Angle, Degree/Minute/Second, Mm/m Three modes can be set
Working Temperature	-10° to +70℃
Working Humidity	85%RH
Power Supply	3.7V Charging Lithium Battery
Ideal Charging Time	5h
Battery Continuous Working Time	11h
Equipped With PC Software	VC Software
Data Output Signal	USB2.0 (Virtual Serial Device)
Connect Plug In	Standard USB Connector, Rechargeable
Shock Resistance	10g@11ms, 3 Axial Direction (Half Sinusoid)
Shock Impact	10grms, 10~100Hz
Waterproof Grade	IP54
Material	Aluminum Alloy Anodizing
LCD	64 True Colors Night Vision Display Screen
LCD Visible Area Size	L57.6*W43.2mm
Size	L109W77H27mm
Weight	≤350g

Product Documentation

Ordering Information

Product Dimension Diagram

Measurement Direction
