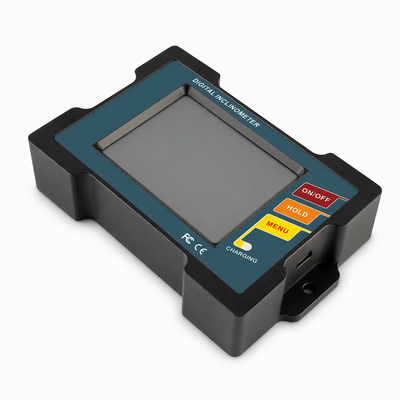

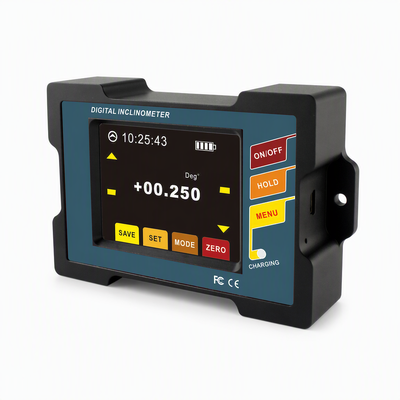

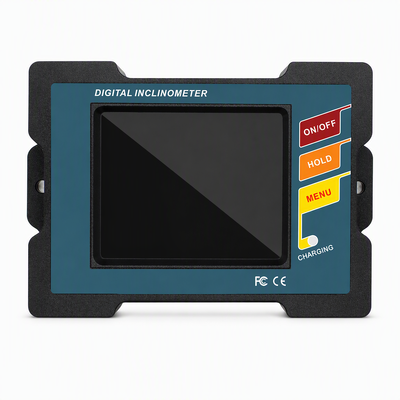

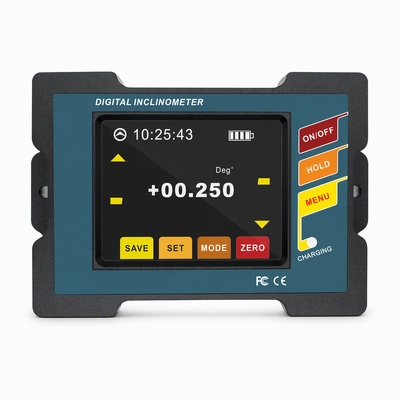

High Precision Digital Inclinometer with ±30° Measurement Range and 0.001° Resolution for Industrial Angle Measurement

Name: High Precision Digital Inclinometer with ±30° Measurement Range and 0.001° Resolution for Industrial Angle Measurement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FMI815/825
Price: 300 USD
Availability: InStock

Model Number:	FMI815/825
MOQ:	1
Price:	300$
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Angle Measurement Range:

±15° / ±30°

Angle Measurement Accuracy:

<0.005° / <0.01° (Full Range)

Angle Resolution:

0.001°

Repeatability:

0.003°

Mm/m Measurement Range:

267 / 577 Mm/m

Mm/m Accuracy:

0.1 / 0.2 Mm/m

Mm/m Resolution:

0.02 Mm/m

Dimension:

117 × 75 × 27 Mm

Weight:

300g

Impact Resistance:

10grms, 10-100Hz

Packaging Details:

Sponge + Carton

Supply Ability:

1000/month

Highlight:

High Precision Digital Inclinometer

±30° Measurement Range MEMS Tilt Sensor

0.001° Resolution Angle Measurement Instrument

Product Description

High Precision Digital Inclinometer MEMS Tilt Sensor for Industrial Angle Measurement

General Description

FMI815/825 is a digital display inclinometer for angle control and measurement in various industrial fields. The core of this product adopts micro-mechanical control principle and dual-core measurement unit. During measurement, the Y-axis compensates the X-axis, utilizing interleaving and temperature compensation model algorithms to maximize the operational advantages of micro-mechanical electronic principles. This ensures long-term stability and repeatability of instrument measurements.

Features ±30° measurement range, 0.001° resolution, accuracy of <0.005° full range, fast response, stable data, easy installation and use. This product includes data storage function, three measurement modes (angle, degree/minute/second, mm/m), powerful expandability, convenient practical application, industrial reliability, high cost performance, and competitive advantages in the international market.

Key Features

Measured accuracy: < 0.005°
Angle resolution: 0.001°
Filter frequency optional
Measurement range: ±30°
Absolute/relative measurement switching
Data storage function
Automatic angle interleaving compensation function
Fixed installation measurement capability
Working temperature: -10℃ ~ +70℃
Angle/length double unit switching
Night vision four-color screen
Customer-calibratable zero point
Alarm angle setting capability
3 measurement modes (angle, degree/minute/second, mm/m)

Applications

Building construction
Production fixture
Vehicle four-wheel detection
Mechanical installation
Pipeline installation
Industrial platform
PTZ angle detection
Turntable detection
Medical instrument
Road slope

Technical Specifications

Parameter	FMI815	FMI825	Unit
Measure axis	Single axis	Dual axis	Axis
Angle measurement range	±15°	±30°	°
Angle measurement accuracy (full range)	<0.005	<0.01	°
Angular measurement resolution	0.001	0.001	°
Millimeter/meter measuring range	267	577	mm/m
Millimeter/meter measurement accuracy	0.1	0.2	mm/m
Millimeter/meter measurement resolution	0.02	0.02	mm/m
Repeatability	0.003	0.003	°
3 measurement modes available	Three modes of angle, degree, minute, second and millimeter/meter can be set		/
LCD screen	64-color true color luminous display		/
LCD viewable area size	L57.6*W43.2		mm
Operating temperature	-10℃～ +70℃		℃
Operating humidity	85		%RH
Power source	3.7 V rechargeable lithium battery		V
Ideal charging time	5		Hour
Continuous working time of battery	11		Hour
Data output signal	USB1.1 (Virtual Serial Device)		/
Equipped with upper computer software	VC application software		/
Connector	Standard USB connector, rechargeable function		/
Anti-vibration	10g @ 11ms, triaxial (half sine wave)		g
Impact resistance	10grms,10～100Hz		g
Waterproof grade	IP54		/
Material	Aluminum alloy anodizing		/
Size	L117W75H27mm		mm
Weight	300		g

Ordering Information

Product Dimension Diagram

Measurement Direction
