Digital Tilt Sensor Display with 0.01° / 0.001° Resolution and RS485 Communication for Wide Temperature Operation -25℃ ~ +80℃

Name: Digital Tilt Sensor Display with 0.01° / 0.001° Resolution and RS485 Communication for Wide Temperature Operation -25℃ ~ +80℃
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FM18
Price: 300 USD
Availability: InStock

Model Number:	FM18
MOQ:	1
Price:	300$
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Resolution:

0.01° / 0.001°

Transmission Distance:

Up To 500m (RS485)

Display Size:

2.8 Inch Color Display

Power Supply:

DC 9-36V Wide Voltage Input

Display Type:

Industrial Wide Temperature Digital Display

Communication Interface:

RS485 / Customized Communication Methods

Operating Temperature:

-25℃ ~ +80℃

Vibration Resistance:

>200g

Packaging Details:

Sponge + Carton

Supply Ability:

1000/month

Highlight:

0.01° / 0.001° Resolution Digital Tilt Sensor Display

RS485 Communication Angle Display Controller

Wide Temperature Operation Industrial Angle Monitor

Product Description

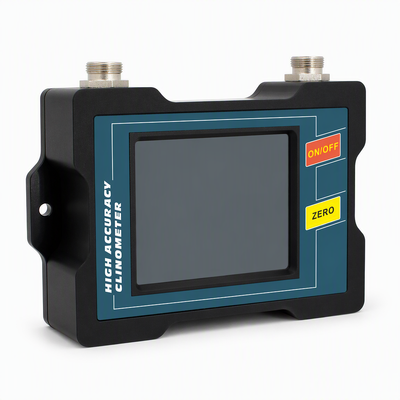

Digital Tilt Sensor Display Monitor RS485 Industrial Angle Display Controller

Product Introduction

The FM18 series digital tilt sensor display is compatible with all our sensor products, including inclination sensors, accelerometers, compasses, gyroscopes, and attitude measurement devices for data transmission and display. This monitor features an industrial wide-temperature digital screen with PC membrane buttons and offers powerful functionality including sensor zero-point calibration, customizable function keys, panel colors, and third-party sensor integration solutions.

The monitor operates on DC 9~36V external power supply and supports RS485 communication for long-distance data transmission up to 500 meters. With its all-metal design, the unit is portable, easy to install, and specifically engineered for harsh industrial environments requiring real-time monitoring operations.

Key Features

Collects tilt sensor data with transmission distance: RS485: 500m
2.8 inch color display with resolution: 0.01°/0.001°
DC 9~36V wide voltage input
Wide temperature operation range: -25°C to +80°C
Aviation head plug connection
IP54 protection class
High vibration resistance > 200g

Dimensions

Function Description

(1) Tilt sensor interface: Connects to tilt sensor with standard resolution of 0.01° or high-precision resolution of 0.001°.

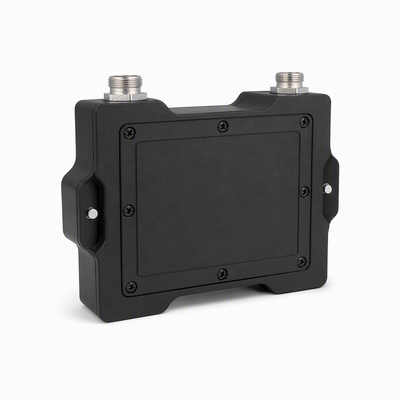

(2) Metal shell: Anodized aluminum construction for durability and strength.

(3) External power supply interface: DC9~36V power input.

(4) 64-color display: Data display area for clear visualization.

(5) Power on/off button: Controls device power state.

(6) Mounting hole: Two M4 screws for easy and fast installation.

(7) Clear button: Press to switch zero modes - ABS indicates absolute zero state, REL indicates relative zero state.

Ordering Information
