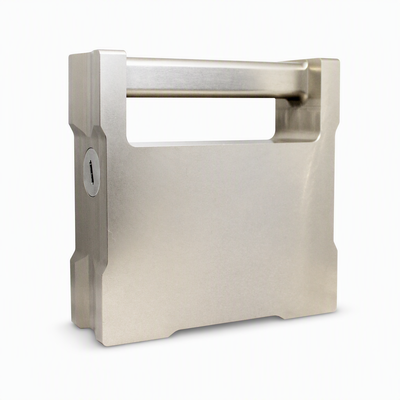

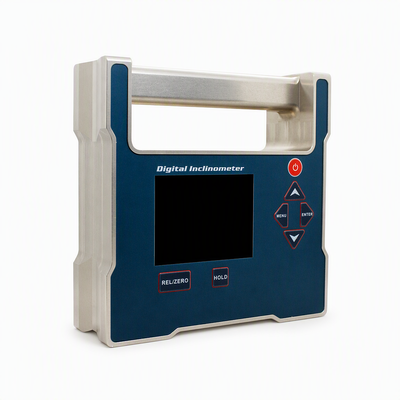

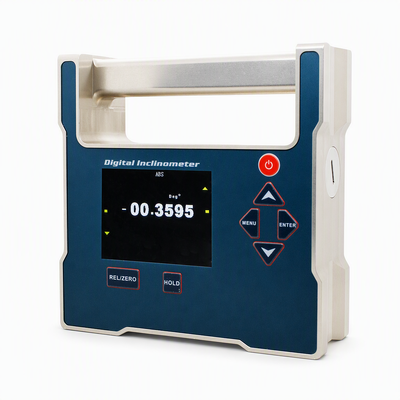

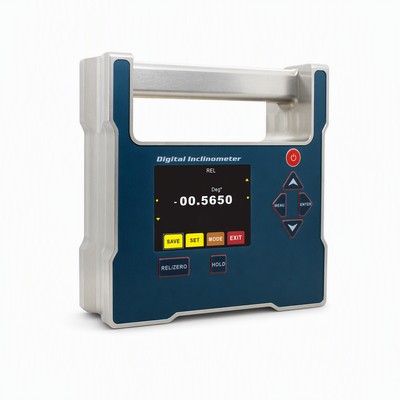

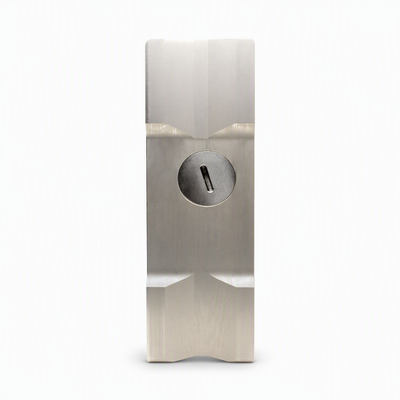

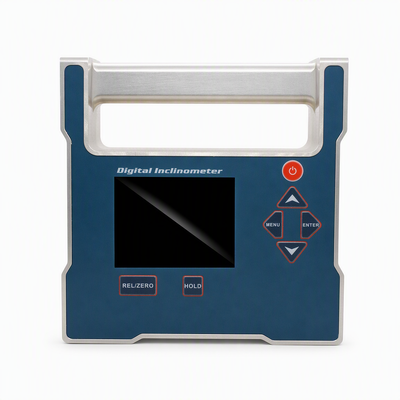

Industrial Digital Inclinometer Sensor 0.0005° Resolution Electronic Level for Precision Platform Leveling

Name: Industrial Digital Inclinometer Sensor 0.0005° Resolution Electronic Level for Precision Platform Leveling
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: FMI850
Price: 300 USD
Availability: InStock

Model Number:	FMI850
MOQ:	1
Price:	300$
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Measurement Range:

±30°

Measurement Accuracy:

<0.002° (≤5°) / <0.003° (5°-30°) RMS

Resolution:

0.0005°

Display Type:

64 Color True Color Luminous LCD

LCD Size:

60 × 45 Mm

Operating Temperature:

-10℃ ~ +70℃

Operating Humidity:

≤85% RH

Shock Resistance:

10g @ 11ms, Triaxial Half Sine Wave

Packaging Details:

Sponge + Carton

Supply Ability:

1000/month

Highlight:

Industrial digital inclinometer sensor

Electronic level for precision leveling

High-resolution inclinometer with 0.0005° accuracy

Product Description

Industrial Digital Inclinometer Sensor

0.0005° Resolution Electronic Level for Precision Platform Leveling

Product Overview

The FMI850 is a single-axis digital inclinometer developed using high-precision angle measurement technology. It utilizes quartz pendulum gravity sensing components to measure object level tilt angles. With a built-in 32-bit microprocessor and 32-bit high-precision analog-to-digital converter, it achieves exceptional accuracy up to 0.002° with resolution of 0.0005°. This instrument supports on-site data playback and chart analysis, making it ideal for high-precision platform leveling and measurement applications.

Technical Specifications

Parameter	Value	Unit
Measurement Range	±30	°
Measuring Axis	Single-axis
Best Accuracy	<0.002° (<5°), <0.003° (5°-30°)	°(RMS)
Resolution	0.0005	°
Measurement Mode	Two modes can be set: degree, mm / m	/
Lcd	64 color true color luminous display	/
Lcd Visible Size	L60*W45	mm
Operating Temperature	-10°～ +70℃	°/℃
Working Humidity	85	%RH
Power Supply	2 Pcs AA battery	/
Battery Continuous Working Time	6	h
Anti-Vibration	10g @ 11ms, triaxial and same (half sine wave)	/
Impact Resistance	10grms,10～100Hz	/
Weight	1200	g
Protect Class	IP54	/
Material	Anodizing of aluminum alloy	/
Size	L140W140H45mm	mm

Key Features

Best accuracy: <0.002°
Angular resolution: 0.0005°
IP54 protection class
Maximum measurement range: ±30°
Absolute/relative measurement switchable
Data storage function
Both side and bottom measurement capability
Operating temperature: -10℃ to +70℃
Double benchmark strong magnet installation
Configurable alarm angle
Angle or length unit switching
Night vision four-color screen
Two measurement modes selectable
Automatic angle interpolation compensation
User-calibratable zero point

Applications

Building construction
Mechanical installation
Pipe installation
Industrial platform
Road slope measurement
Pan-tilt angle detection
Turntable detection
Production fixture
Medical instruments
Automotive four-wheel inspection

Measurement Direction

Product Dimensions

Product Function Introduction
