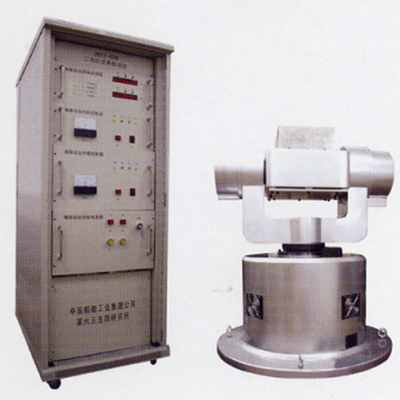

Product Name | Dual Axis Turntable |
---|---|
Rotary Angle Range | ±170° |
Axis Perpendicularity | ±4'' |
Two Axis Intersection | 0.1mm |
Weight | 1000kg |
Product Name | Dual Axis Power-driven Turntable |
---|---|
Load Capacity | 20kg |
Table Facet Diameter | Ø360mm |
Table Facet Flatness | 0.01mm |
Wobble Error | Inner Loop: ±2’’ Outer Loop: ±3’’ |
Product Name | Vibratory Turntable |
---|---|
Max Measured Object Size | Ø300mm X 300mm |
Two Axis Intersection | 0.1mm |
Axis Perpendicularity | ±4'' |
Rotary Angle Range | ±170deg |
Product Name | Motion Simulator |
---|---|
Table Top Material | Stainless Steel |
Flatness Of Table | 0.02 Mm |
Rotation Accuracy | ± 2'' |
Table Facet Flatness | 0.01mm |
Product Name | Triaxial Turntable |
---|---|
Load Max Weight | 50KG |
Load Max Size | 450×400×350 Mm |
Structure | UUT |
Table Top Diameter | 550mm |
Product Name | Display Positioning Turntable |
---|---|
Load Capacity | 50kg |
Table Facet Diameter | Ø520mm |
Table Facet Flatness | 0.01mm |
Wobble Error | Inner Loop: ±2’’ Outer Loop: ±3’’ |
Product Name | Motion Simulator |
---|---|
Table Top Material | HT250 |
Rotation Accuracy | ± 1.5'' |
Table Facet Flatness | 0.02mm |
Total Weight | 650 Kg |
Product Name | Angular Simulator |
---|---|
Load Capacity | 30kg |
Object Size | 350mm X 350mm X 350mm |
Two Axis Intersection | ≤Ø0.35mm |
Axis Perpendicularity | 2'' |
Product Name | Motion Simulating Turntable |
---|---|
Table Top Material | Stainless Steel |
Flatness Of Table | 0.02 Mm |
Rotation Accuracy | ± 2'' |
Table Facet Flatness | 0.01mm |
Product Name | Three Axis Tracking Turntable |
---|---|
Load Capacity | 35kg |
Rotary Angle Range | Continuous Rotation |
Rate Range | 0.001°/s~±200°/s |
Angular Position Measure Accuracy | ±5'' |
