Advanced Temperature Controlled Dual Axis Test Turntable for Inertial Sensor Testing

Brand Name:	Firepower
Model Number:	2LT300-W
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	10 pcs/5 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Acceleration Test Turntable

Load Capacity:

50kg

Load Plate Size:

Ø500mm

Rate Range:

±0.001°/s~±200°/s

Angular Position Measure Accuracy:

±3''

Rotary Accuracy:

±1~3''

Axes Perpendicularity:

3''

Interface:

RS232/RS422

Packaging Details:

Wooden Box

Supply Ability:

10 pcs/5 months

Highlight:

Dual Axis Test Turntable

Temperature Controlled Dual Axis Turntable

Inertial Sensor Dual Axis Turntable

Product Description

Advanced Temperature Controlled Dual Axis Test Turntable for Inertial Sensor Testing

Product Specifications

Attribute	Value
Product Name	Acceleration Test Turntable
Load capacity	50kg
Load Plate Size	Ø500mm
Rate Range	±0.001°/s~±200°/s
Angular Position Measure Accuracy	±3''
Rotary Accuracy	±1~3''
Axes Perpendicularity	3''
Interface	RS232/RS422

Product Description

The two-axis temperature turntable with temperature chamber consists of three main components: mechanical platform body, measurement and control system, and temperature control system. The platform features a U-T structure form with precision mechanical shafting, offering internal orientation and external pitching capabilities with both position and speed movement functions.

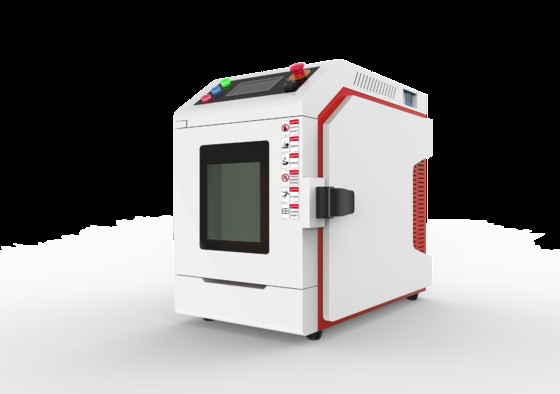

This system provides accurate single-axis and double-axis positioning and rate reference for the measured load, while the temperature control box delivers high and low temperature test environments. Ideal for static testing and calibration of inertial element components and inertial navigation systems.

Technical Parameters

Load capacity	50kg
Table facet diameter	Ø500mm
Rotary accuracy	±1~3''
Wobble error	Main axis: continuous Pitch axis: ±150°
Axes perpendicularity	3''
Working mode	Automatic
Computer interface port	RS232/RS422
Angular position measure accuracy	±3''
Angular position measure resolution	0.36''
Angular position control accuracy	2''
Control resolution	0.0001°
Rate range	±0.001°/s~±200°/s
Rate accuracy and smoothness	1x10^-4 (360° interval)
Rate resolution	0.0001°/s
Max dual axis linkage rate	60°/s
Sway frequency (dual axis)	5Hz (5kg load)
Sway amplitude (dual axis)	0.5°
Waveform distortion	3%

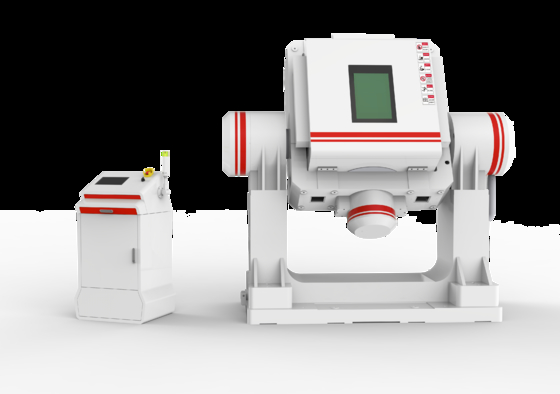

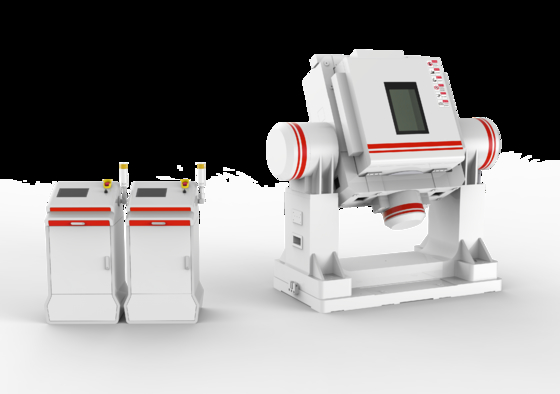

Product Display

Main Applications

Factory Photos

Frequently Asked Questions

Q1. What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.

Q2. How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) We produce product according agreed technical requirements strictly;
2) We do full tests according to test methology;
3) We have a professional QA/QC team to ensure the quality.
4) We provide test report to customer to confirm before shipment;
5) If any unit was confirmed by customer and us not consistent with agreed specification or test report, we accept replacement/return/refund till customer's acceptance.

Q3. Do you accept OEM or ODM order?

A: Yes, we are a professional manufacturer that can provide OEM and ODM services according to customer needs

Q4. What are your terms of delivery?

A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.

Q5. What is the payment way?

A: TT, L/C, Pay Later, West Union, Online Bank Payment.

Q6. What is warranty?

A: Standard 12 months and negotiable for longer warranty.

Q7. What is the packing quality?

A: For sample order, we use carton box with sponge, and batch order, we use wooden box.

Q8. What is final price?

A: If standard product, price as in the price table, if customized product, price by checking with sales, so as to different qty needs.

Q9. How to choose product?

A: We are a professional manufacturer that can provide standard product on shafe, or products by customer's specific requirements;
1) Customer raise some certain different technical requirements based on standard products;
2) Customer provide specific and comprehensive technical requirements to sales to evaluate;
3) Customer explain application to sales to provide suitable products;
