Product Description

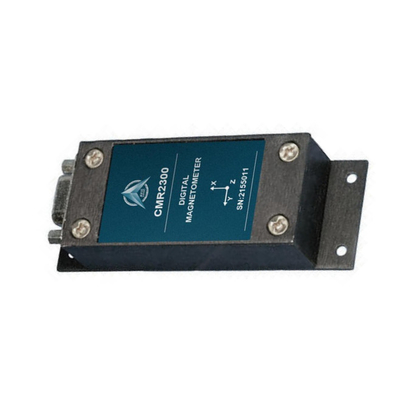

True North Yaw Angle Sensor Replace HMR2300 Low Price High Production Capacity Of Yaw Angle Finder



MAIN FEATURE

• High Accuracy Over ±1 gauss, <0.5% Full Scale

• Range of ±2 gauss, <70 µgauss Resolution

• Three Axis (X, Y, Z) Digital Outputs

• 10 to 154 Samples Per Second, Selectable

• RS-232 or RS-485 Serial Data Interfaces

• PCB or Aluminum Enclosure Options

• 6-15 volt DC Unregulated Power Supply Interface



Specification

Characteristics Conditions Min Typ Max Units
Power Supply
Supply voltage Pin 9 referenced to Pin 5(Ground) 6.5   15 Volts
Supply Current Vsupply = 15V. With S/R= On   27 35 mA
Temperature
Operating Ambient -40   +85
Storage Ambient, Unbiased -55   125
Magnetc Fleld
Range Full Scale (FS), Total Field Applied -2   +2 gauss
Resolution Applied Field to Change Output 67     micro-gauss
Accuracy RSS of all errors@+25℃
±1 gauss
±2 gauss

0.01
1

0.52
2

%FS
%FS
Lneariby Error Best fit straight line@+25℃
±1 gauss
±2 gauss

0.1
1

0.5
2

%FS
%FS
Hysterisis Error 3 Sweeps Across ±2gauss@+25°℃   0.01 0.02 %FS
Repeatability Error 3 Sweeps Across+2gauss@+25°C   0.05 0.10 %FS
Gain Enror Applied Field for Zero Reading   0.05 0.10 %FS
Offset Ermor Applied Field for Zero Reading   0.01 0.03 %FS
Temperature
Effect
Coefficient of Gain   -600
±114
  ppm/"C
Power Supply Efiect From+6 to +15V with 1 gauss Applied Field   150   ppm/V
Mechanical
Weight PCB Only
PCB and Non-Flanged Enclosure
PCB and Flanged Enclosure
  28
94
98
  grams
Vibration Operating
5 to 10Hz for 2 Hours
10Hz to 2kHz for 30 Minutes

10
2.0



mm
g




CMR2300 DIGITAL MAGNETOMETER(1).pdf
