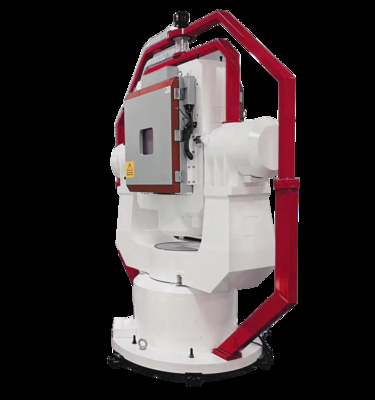

35kg Payload Three Axis Tracking Turntable With Thermal Control

Brand Name:	Firepower
Model Number:	3T-450
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	10 pcs/5 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

Three Axis Tracking Turntable

Load Capacity:

35kg

Rotary Angle Range:

Continuous Rotation

Rate Range:

0.001°/s~±200°/s

Angular Position Measure Accuracy:

±5''

Table Body Outline Size:

Appr 700mm X 620mm X 900mm

Interface:

RS232, USB

Axes Perpendicularity:

<±5''

Packaging Details:

Wooden Box

Supply Ability:

10 pcs/5 months

Highlight:

35kg Payload Tracking Turntable

35kg Payload Three Axis Turntable

Thermal Control Three Axis Turntable

Product Description

35kg Payload Three Axis Tracking Turntable With Thermal Control

Product Specifications

Attribute	Value
Product Name	Three Axis Tracking Turntable
Load Capacity	35kg
Rotary Angle Range	Continuous Rotation
Rate Range	0.001°/s~±200°/s
Angular Position Measure Accuracy	±5''
Table Body Outline Size	Approx 700mm x 620mm x 900mm
Interface	RS232, USB
Axes Perpendicularity	<±5''

Product Description

This high-accuracy multi-functional angle measuring instrument is designed for dual-axis testing applications. During navigation system production, it serves as a dedicated calibration and test instrument for evaluating scale factor, zero drift, successive start repeatability, and long-term stability error signals.

Technical Parameters

Load capacity	35kg
Table facet diameter	Ø450mm
Wobble error	≤±5''
Rotary angle range	Continuous infinite
Axes perpendicularity	<±5''
Working mode	Inner loop: positioning, rate, vibration Outer loop: positioning (manual)
Table body weight	450kg
Slip rings	40 rings
Computer port	RS232, USB
Angular position measure repeatability	±3″
Angular position resolution	0.36''
Angular position control accuracy	±3″
Vibration frequency	0.01Hz~10Hz
Vibration amplitude	±0.001°~±45°
Vibration distortion degree	≤3%

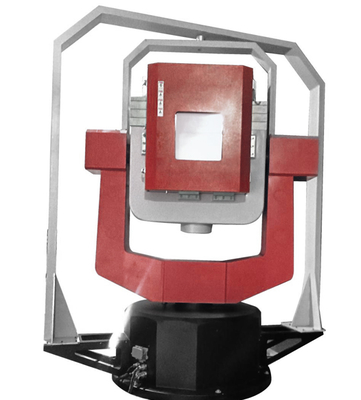

Product Display

Main Applications

Factory Photos

Frequently Asked Questions

Q1. What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Please contact us by email for specific lead time based on your order quantities.

Q2. How does your factory do regarding quality control?

A: Quality is our priority. Our quality control process includes:
1) Production according to agreed technical requirements
2) Comprehensive testing according to methodology
3) Professional QA/QC team oversight
4) Test report confirmation before shipment
5) Replacement/return/refund policy for any non-conforming units

Q3. Do you accept OEM or ODM order?

A: Yes, we provide professional OEM and ODM services tailored to customer requirements.

Q4. What are your terms of delivery?

A: We accept EXW, FOB, CIF, and other standard delivery terms.

Q5. What is the payment way?

A: TT, L/C, Pay Later, West Union, Online Bank Payment.

Q6. What is warranty?

A: Standard 12 months warranty, negotiable for longer periods.

Q7. What is the packing quality?

A: Sample orders use carton box with sponge protection, batch orders use wooden boxes.

Q8. What is final price?

A: Standard products follow price table, customized products require quotation based on specifications and quantity.

Q9. How to choose product?

A: We offer standard products or customized solutions:
1) Modifications to standard specifications
2) Custom technical requirements evaluation
3) Application-specific product recommendations
