Multi-FunctionThree-Axis Motion Simulation Rate Turntable For Gyro Sensor Testing

Brand Name:	Firepower
Model Number:	3TD-707
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	10 pcs/5 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

3 Axis Turntable

Turntable Load:

40kg

Load Measure Size:

500mm X 500mm X 450mm

Rotary Table Structure:

U-U-T

Three-Axis Angular Range:

360deg; Continuous Rotation

Installation:

Direct Connected

Table Leakage:

≤0.3MT(100mm Away From Table Facet)

Angular Positioning Accuracy:

±3''

Packaging Details:

Wooden box

Supply Ability:

10 pcs/5 months

Highlight:

Three Axis Motion Simulation Turntable

Multi Function Turntable

Gyro Sensor Testing Turntable

Product Description

Multi-Function Three-Axis Motion Simulation Rate Turntable For Gyro Sensor Testing

Product Specifications

Attribute	Value
Product Name	3 Axis Turntable
Turntable Load	40kg
Load Measure Size	500mm x 500mm x 450mm
Rotary Table Structure	U-U-T
Three-Axis Angular Range	360° Continuous Rotation
Installation	Direct Connected
Table Leakage	≤0.3MT (100mm away from table facet)
Angular Positioning Accuracy	±3''

Product Description

This advanced turntable features self-calibration, self-checking, wrong operation protection, over-speed protection and alarming functions. It includes fixed angle pulse (1°, 10°, 360°) output and high-speed RS232C/RS422 communication interfaces for remote programmable control.

Technical Parameters

Load capacity	40kg
Max measured object size	500mm × 500mm × 450mm
Table facet magnetic leakage	≤0.3MT (100mm away from table facet)
Wobble error	Inner: ±2'' Outer frame: ±1.5'' Mid frame: ±3''
Rotary angle range	Three axis continuous infinite
Three axis intersection point error	0.25mm radius ball
Axis perpendicularity	±3''
Conductive slip rings	90 rings
Angular position measure accuracy	±3''
Angular position measure resolution	0.00001°
Angular position measure repeatability	±1.5'
Angular position control range	0.0000°~359.9999°
Rate range (Heading axis)	±0.0002°/s~±200°/s
Rate range (Pitch axis)	±0.0002°/s~±300°/s
Rate range (Roll axis)	±0.0002°/s~±400°/s
Rate accuracy and stability	5×10^-5 (360° average)
Rate resolution	0.0001°/s
Distortion	5%
Max three axis linkage velocity	≤60°/s

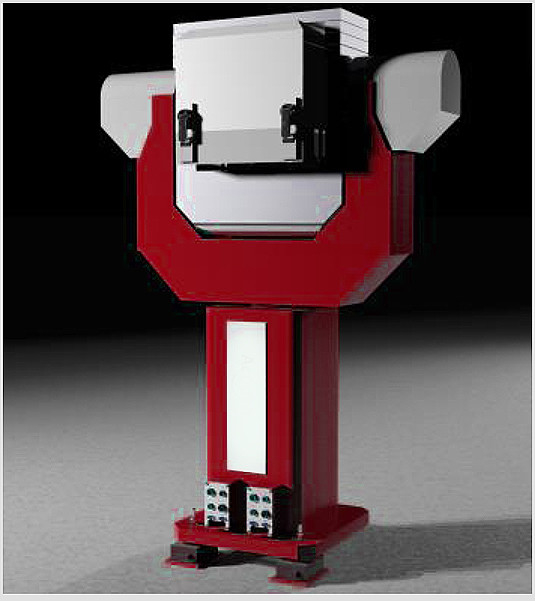

Product Images
