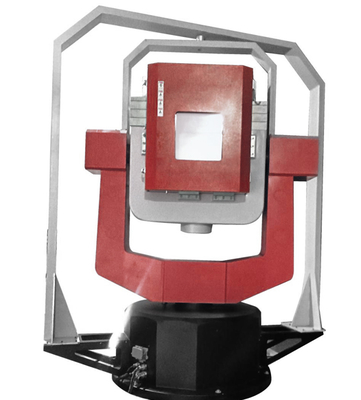

High Reliability 3-Axis Motion Simulation Rate Table Customized Gyro Testing

Brand Name:	Firepower
Model Number:	3TF-81A
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	10 pcs/5 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

3 Axis Motion Simulator

Turntable Load:

Not Less Than 40kg

Load Mounting Table:

500mm X 500mm X 450mm

Table Leakage:

≤0.3MT(100mm Away From Table Facet)

Three-Axis Position Accuracy:

±3''

Wobble Error:

±2''

Axis Perpendicularity:

±3''

Max Three Axis Linkage Velocity:

≤60°/s

Packaging Details:

Wooden box

Supply Ability:

10 pcs/5 months

Highlight:

3-Axis Motion Simulation Rate Table

High Reliability 3-Axis Turntable

Customized Gyro Testing 3-Axis Turntable

Product Description

High Reliability 3-Axis Motion Simulation Rate Table for Customized Gyro Testing

Product Overview

This advanced 3-Axis Motion Simulator features self-calibration, self-checking, wrong operation protection, over-speed protection, and alarm functions. Equipped with fixed angle pulse output (1°, 10°, 360°), high-speed RS232C and RS422 communication interfaces, it supports remote programmable control for versatile testing applications.

Key Specifications

Attribute	Specification
Turntable Load Capacity	Not less than 40kg
Load Mounting Table Dimensions	500mm × 500mm × 450mm
Table Facet Magnetic Leakage	≤0.3MT (100mm from table facet)
Three-Axis Position Accuracy	±3''
Wobble Error	±2''
Axis Perpendicularity	±3''
Max Three-Axis Linkage Velocity	≤60°/s

Detailed Performance Parameters

Angular Position Measure Accuracy: ±3''
Angular Position Resolution: 0.00001°
Rate Range: ±0.0002°/s to ±400°/s (depending on axis)
Rate Accuracy & Stability: 5×10^-5 (360° average)
Three-Axis Intersection Point Error: 0.25mm radius ball
Conductive Slip Rings: 90 rings

Product Images

Main Applications

About HONG KONG AVIONICS TECHNOLOGY CO., LIMITED

We specialize in China's aerospace electronics export services, focusing on gyros, accelerometers, satellite navigation systems, inertial turntables, and test equipment. Our core team consists of graduates from China's top science and technology universities, collaborating with strategic partners across aerospace, defense, and research institutions.

R&D and Innovation

Our dedicated R&D center continuously improves product performance through rigorous development processes. We maintain strategic partnerships with leading universities including Harbin Institute of Technology and National University of Defense Technology, having completed over 20 national key projects and developed more than 100 high-tech products.

Development Strategy

One Mind: Serving the country through aviation technology
Two Merge: Military-civilian and industrial integration
Three Forces: Innovation leadership, cultural strength, and competitive excellence
Five Modernizations: Intensive, precise, market-oriented, systematic, and international development
