Position 3 Axis Turntable UUT Mechanical Structure With Temperature Box

Brand Name:	Firepower
Model Number:	3A50
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Triaxial Turntable

Load Max Weight:

50KG

Load Max Size:

450×400×350 Mm

Structure:

UUT

Table Top Diameter:

550mm

Three Axis Intersection:

0.25mm In Radius Of Ball

Positioning Precision:

±3″

Highlight:

Position 3 Axis Turntable

3 Axis Turntable UUT

Temperature Box 3 Axis Turntable

Product Description

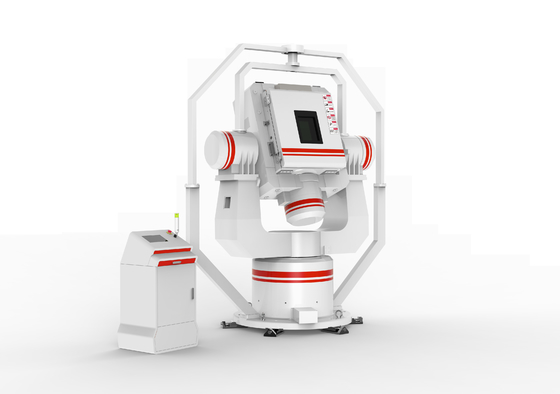

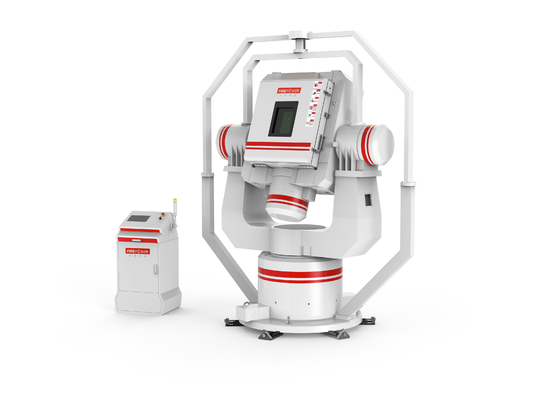

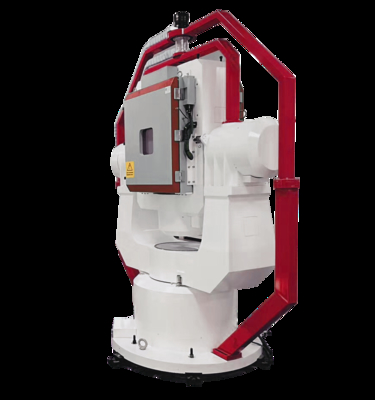

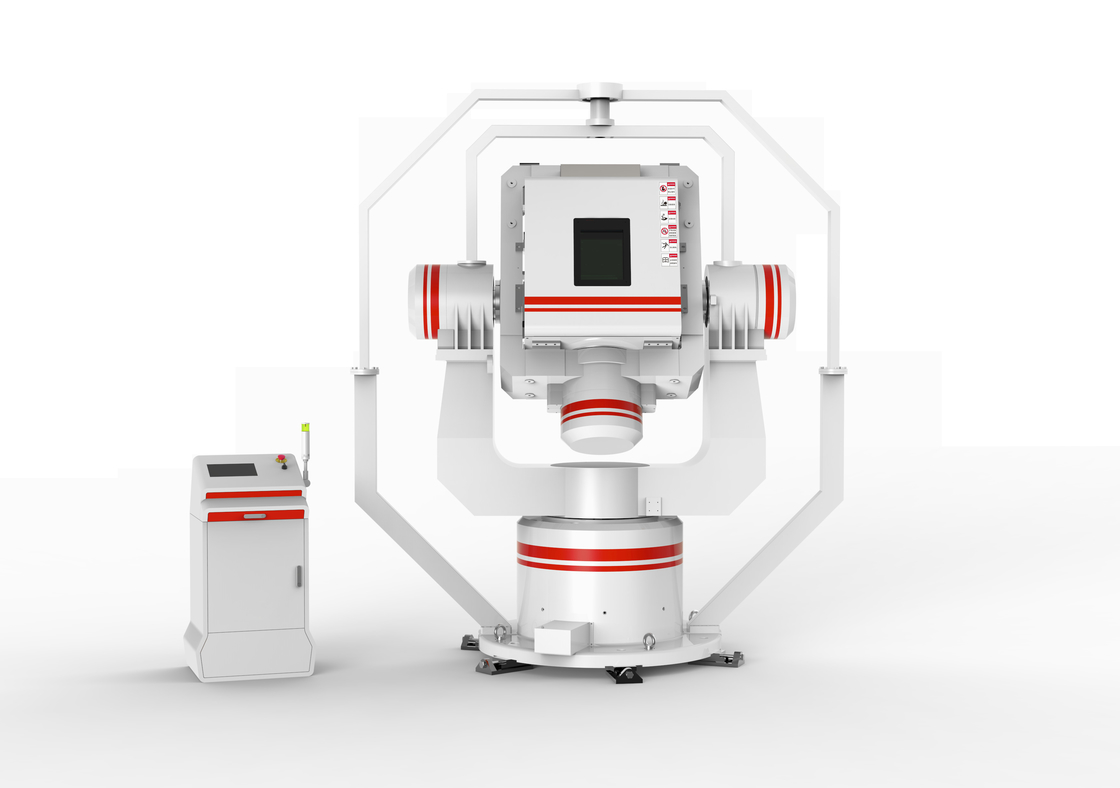

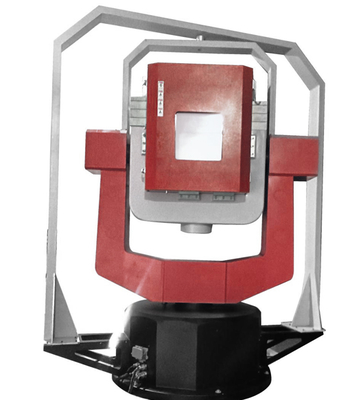

Position 3 Axis Turntable UUT Mechanical Structure With Temperature Box

Product Overview

High-precision three-axis turntable with temperature chamber for inertial navigation testing and motion simulation applications. Available in conventional three-axis configuration or with integrated temperature control capabilities.

Key Specifications

Attribute	Value
Product Name	Triaxial Turntable
Maximum Load Weight	50KG
Maximum Load Size	450×400×350 mm
Structure	UUT
Table Top Diameter	550mm
Three Axis Intersection	0.25mm in radius of ball
Positioning Precision	±3″

Product Features

Available in conventional three-axis configuration or with integrated temperature chamber
UUT mechanical structure for precise motion control
Position, speed, and swing functions across all axes
Comprehensive protection systems including over-rate, over-current, and over-voltage protection
Optional environmental testing with temperature chamber and vacuum box

Technical Parameters

Mechanical Specifications
Maximum Load Weight	50Kg
Maximum Load Size	450×400×350 mm
Table Top Diameter	550mm
Three Axis Intersection	0.25mm in radius of ball (process assurance)
Rotation Accuracy
Tilt Rotation Accuracy	Pitch ±3″; Roll ±3″; Heading ±3″
Three Axis Verticality	Pitch and roll axis ±3″
Three Axis Angular Positioning Precision	±3″
Three Axis Angular Positioning Repeatability	2″
Three Axis Rotary Range	Continuously
Angular Rate Range
Roll	±0.001°/s～500°/s
Pitch	±0.001°/s～400°/s
Heading	±0.01°/s～400°/s
Performance Specifications
Max Angular Acceleration (with load)	Roll 1000°/s², Pitch 600°/s², Heading 400°/s²
Speed Smoothness	Over 360°, full speed 0.001°/s
Speed Accuracy	360° average ±5×10⁻⁵ (50PPM), 10° average ±1×10⁻⁴ (100PPM), 1° average ±1×10⁻³ (1000PPM)
Speed Resolution	0.0001°/s
System Bandwidth (-3dB)	Roll 15Hz, Pitch 10Hz, Heading 8Hz
Temperature Chamber
Cooling Method	Mechanical Cooling
Temperature Range	Min -65°C, Max +90°C, Avg 25°C
Temperature Gradient	Positive 1.0°C/min; Negative 1.0°C/min
Temperature Accuracy	±1°C
Temperature Stability	±0.1°C
Power Requirements
Three Phase	380V±10%, 50Hz±3%
Single Phase	220V±10%, 50Hz±3%
Working Conditions
Operating Temperature	20±10°C
Relative Humidity	≤50% (30°C)
Ground Resistance	<2Ω
