Three-Axis Test Turntable with High Load Capacity for Gyro Calibration and Testing

Name: Three-Axis Test Turntable with High Load Capacity for Gyro Calibration and Testing
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 3TD-320
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	3TD-320
MOQ:	1
Price:	negotiable
Payment Terms:	L/C,T/T
Supply Ability:	10 pcs/5 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Product Name:

INS Test Turntable

Load Capacity:

30kg

Axis Perpendicularity:

≤10'

Three-Axis Angular Range:

360deg; Continuous Rotation

Angular Position Measure Accuracy:

±7.2''

Interface:

RS-232

Installation:

Direct Connected

Rotary Table Structure:

U-U-T

Packaging Details:

Wooden Box

Supply Ability:

10 pcs/5 months

Highlight:

Three Axis Test Turntable

High Load Capacity Three Axis Turntable

Gyro Calibration Three Axis Turntable

Product Description

Three-Axis Test Turntable with High Load Capacity for Gyro Calibration and Testing

Product Specifications

Attribute	Value
Product Name	INS Test Turntable
Load Capacity	30kg
Axis Perpendicularity	≤10'
Three-Axis Angular Range	360° Continuous Rotation
Angular Position Measure Accuracy	±7.2''
Interface	RS-232
Installation	Direct Connected
Rotary Table Structure	U-U-T

Product Description

The 3TD-320 is a three-axis half-frame structure test turntable with self-check and simulation functions (including rate and position simulation). The system features an intuitive man-machine interface with menu-driven operation for convenient and reliable control, including free zero-point setting. Built-in protection safeguards both the turntable and tested objects from abnormal conditions such as over-speed, over-limit, and emergency shutdown.

Technical Parameters

Load capacity: 30kg
End face jerk value: <0.01mm
Wobble error: Inner/outer frame: 360° | Mid frame: 120°
Rotary angle range: Continuous infinite
Three axis intersection point error: 0.1mm within radius ball
Conductive slip rings: 60 rings
Angular position measure resolution: 0.36''
Angular position measure repeatability: ±7.2''
Rate accuracy: 1% when ±0.001°/s
Max angular speed: Inner/Mid: 400°/s | Outer: 300°/s
Max angle acceleration: Inner/Mid: 1000°/s² | Outer: 800°/s²
Min smooth angular acceleration: 0.001°/s²

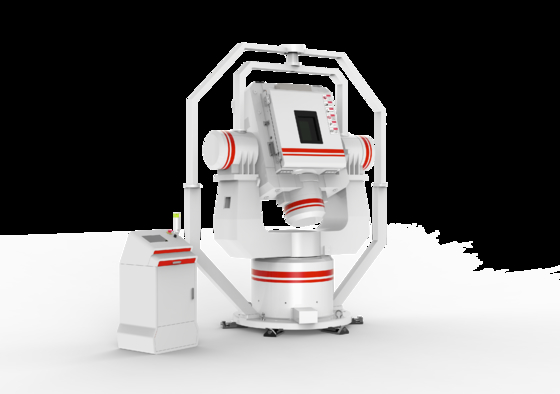

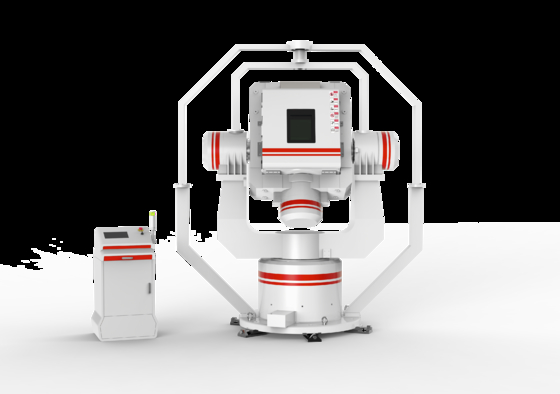

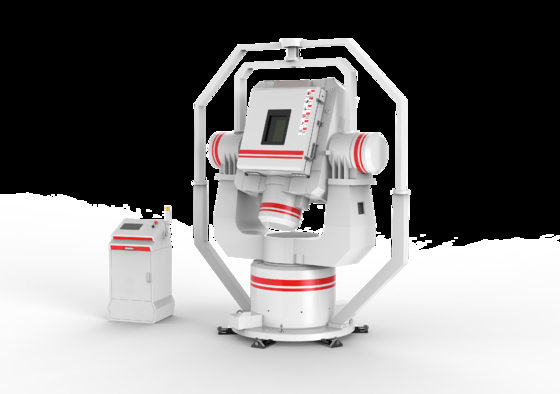

Product Images

Application Scenarios

About HONG KONG AVIONICS TECHNOLOGY CO., LIMITED

We specialize in China's aerospace electronics export services, focusing on gyros, accelerometers, satellite navigation systems, inertial turntables, and test equipment. Our core team consists of graduates from prestigious Chinese universities of science and technology, with strategic partnerships across China's leading aerospace and defense research institutions.

R&D and Innovation

We maintain our own research and development center staffed with highly skilled professionals. Through collaborations with top universities including Harbin Institute of Technology and National University of Defense Technology, we've developed over 100 high-tech products and completed more than 20 national key projects.

Development Strategy

Our "One mind, Two merge, Three forces, five modernizations" approach guides our commitment to becoming a world-class aviation enterprise through innovation, cultural strength, and competitive excellence while adhering to principles of intensive operation and international cooperation.
