Precision Three-Axis Test Turntable for Inertial Sensor Testing RS-232 Interface

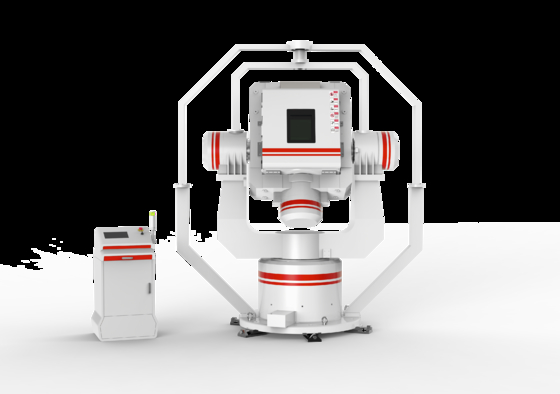

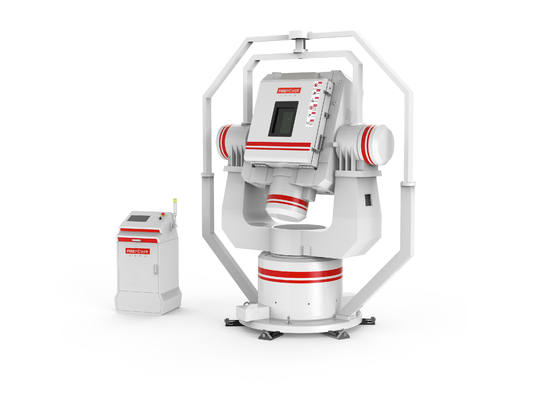

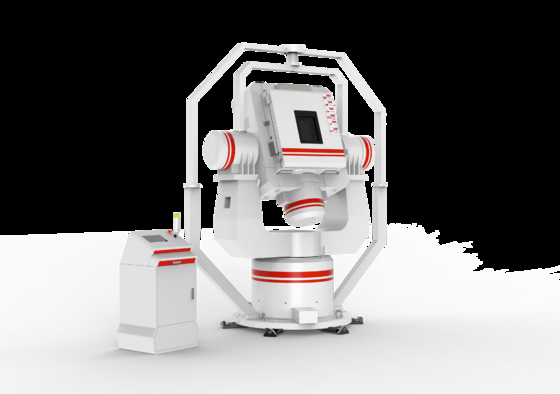

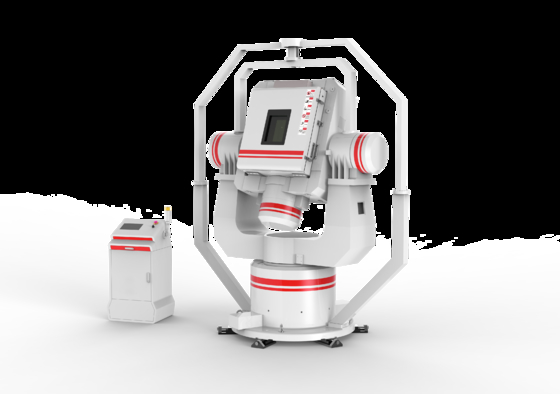

The 3KTD-565 is a three-axis automatic frame type multi-functional inertial navigation test equipment with position, rate, swing and serve functions. Designed for comprehensive testing of inertial systems and components, this computer-controlled turntable offers high precision positioning, excellent rate stability, minimal operation distortion, and superior dynamic performance.

• Load capacity: 40kg
• Max measured object size: 420mm x 400mm x 480mm
• Wobble error: Inner/outer frame: ±5'' | Mid frame: ±5''
• Rotary angle range: Three axis continuous infinite
• Axis perpendicularity: Mid-inner frame ±5'' | Mid-outer ring ±3''
• Working modes: Position, rate, swing, simulation and serve
• Table body weight: Approximately 1500kg
• Table body dimensions: 1600mm x 1100mm x 2200mm
• Control cabinet: 19" standard cabinet, height: 1800mm
• Computer interface: RS-232
• Conductive slip rings: 100 rings for user
• Angular position measure resolution: 0.36''
• Angular position measure repeatability: ±2''
• Angular position control accuracy: ±5''
• Rate range: 0.001°/s~200°/s
• Rate accuracy and stability: 5x10-4 (360° average)
• Max angle acceleration: Inner frame 220°/s² | Mid-frame 130°/s² | Outer frame 50°/s²
• Sway amplitude: Inner frame: ±50° | Mid-frame: ±30° | Outer frame: ±10°
• Sway period: 5sec~50sec
• Simulation function: Available
• Serve function: Inner frame: yes | Mid frame: no | Outer frame: yes
• Serve accuracy: Inner frame 3''~5'' | Outer frame 6Hz
• Control system bandwidth: Inner frame: 8Hz | Mid frame: 8Hz | Outer frame: 3''~5''
